LWCD-60300MN-07 — construction, airflow path and running condition.
- ImpellerØ60 mm2.4 in
- Max airflow207 m³/h122 CFM
- Max static pressure34 Pa0.14 in. wg
- Voltage24 V
- Speed2,000 rpm
- Input power11.04 W
- Noise41 dB(A)

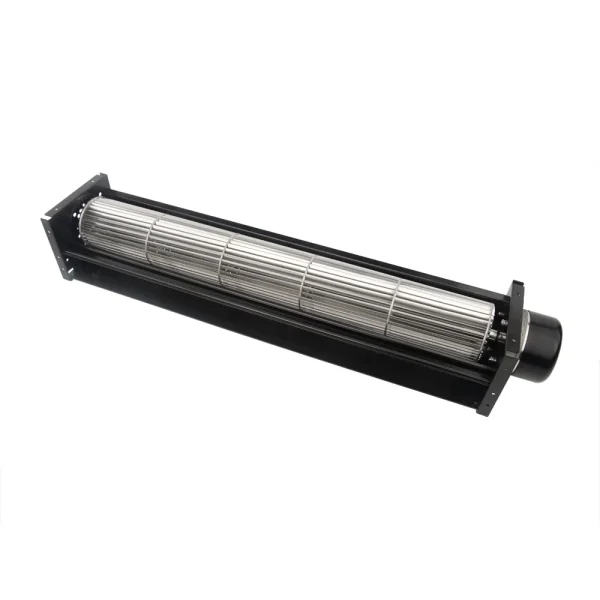

LWCD-60300MN-07 DC Cross Flow Fan Ø60 mm
Ø60 mm | DC | Max airflow 207 m³/h | Max static pressure 34 Pa | 41 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · ETL · RoHS
All files for LWCD-60300MN-074 files · direct download
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Proven in: Air curtain OEM programme · Trench convector & heating terminals · Consumer air cooler & fan ODM — all case studies on longwellfans.com
Typical applications: Electric heaters · Display cases · Air curtains · Air purifiers — all industries

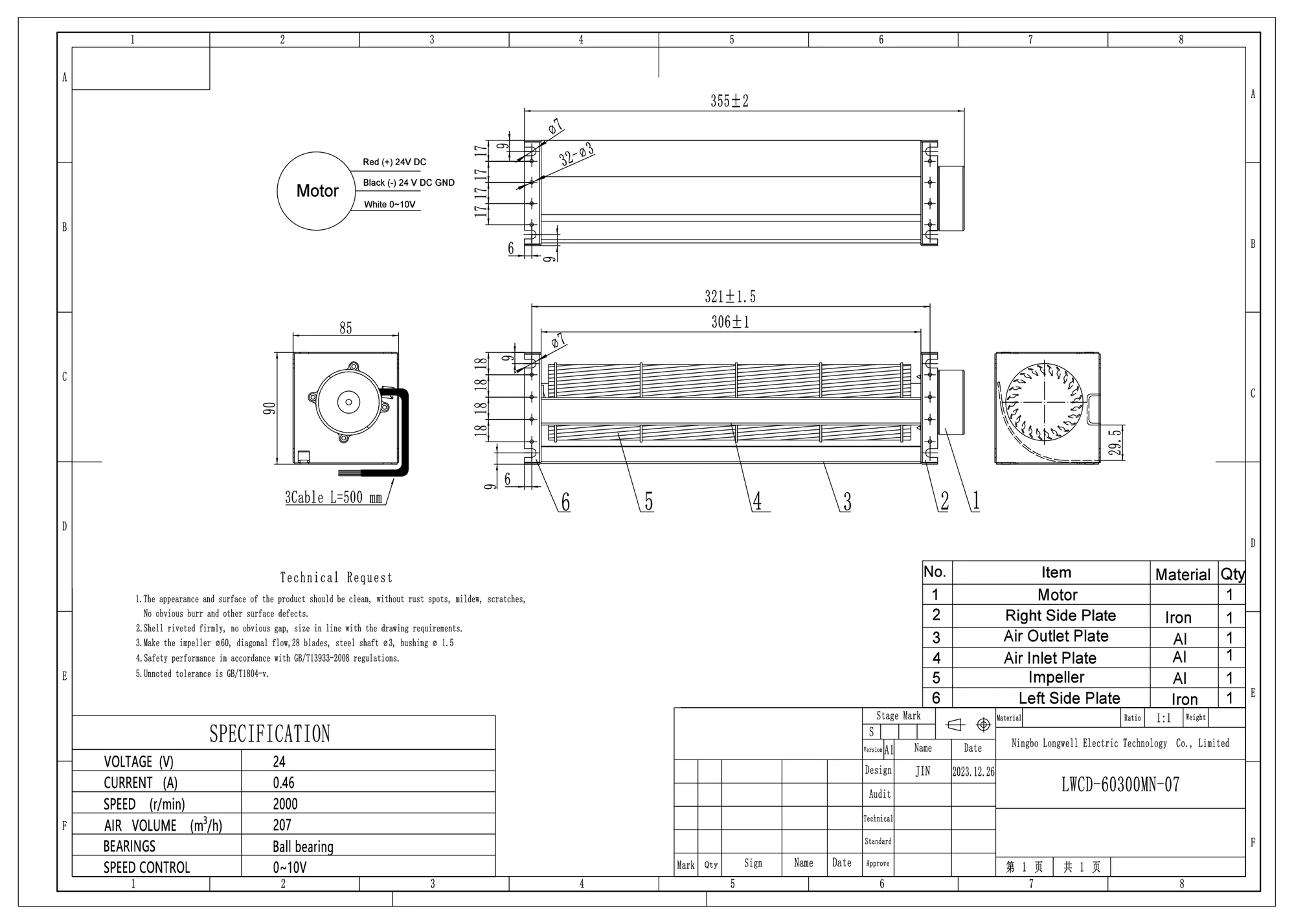

Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
Need a non-standard size or another format? Ask an engineer or search the download center.
LWCD-60300MN-07 is a LONGWELL DC Cross Flow Fan from the DC Cross Flow Fans range, impeller Ø60 mm, rated 24 V DC, maximum airflow 207 m³/h, maximum static pressure 34 Pa, noise 41 dB(A), input power 11.04 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.
Technical data
| Model | LWCD-60300MN-07 |
|---|---|
| Series | LWCD60300 |
| Motor type | DC |
| Inlet | Single inlet |
| Rated voltage | 24 V |
| Current | 0.46 A |
| Input power | 11.04 W |
| Speed | 2,000 rpm |
| Max. airflow | 207 m³/h |
| Max. static pressure | 34 Pa |
| Noise | 41 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Impeller diameter | Ø60 mm |
| Outlet length | 306mm |
| Impeller material | Aluminum alloy |
| Insulation class | B |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCD60300: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø60 mm · DC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWCD-60300MN-07 this model | 207 m³/h | 34 Pa | 2,000 rpm | 11.04 W | 41 dB(A) | 24 V | |
| LWCD-60240MN-07 | 203 m³/h | 32 Pa | 2,000 rpm | 10.08 W | 39 dB(A) | 24 V | View |
| LWCD-60300LN-06 | 207 m³/h | 34 Pa | 2,000 rpm | 9.6 W | 41 dB(A) | 12 V | View |
| LWCD-60360MN-07 | 240 m³/h | 34 Pa | 2,000 rpm | 12.24 W | 42 dB(A) | 24 V | View |
| LWCD-60360LN-06 | 240 m³/h | 34 Pa | 2,000 rpm | 11.4 W | 42 dB(A) | 12 V | View |
| LWCD-60420MN-07 | 355 m³/h | 35 Pa | 2,000 rpm | 12.72 W | 43 dB(A) | 24 V | View |
| LWCD-60420LN-06 | 355 m³/h | 35 Pa | 2,000 rpm | 1.32 W | 43 dB(A) | 12 V | View |
| LWCD-60520MN-06 | 414 m³/h | 28 Pa | 1,800 rpm | 24.9 W | 45 dB(A) | 24 V | View |
| LWCD-60610MN-06 | 486 m³/h | 29 Pa | 1,800 rpm | 26.4 W | 46 dB(A) | 24 V | View |
| LWCD-60640MN-06 | 510 m³/h | 29 Pa | 1,800 rpm | 27.12 W | 47 dB(A) | 24 V | View |
| LWCD-60700MN-06 | 558 m³/h | 30 Pa | 1,800 rpm | 28.08 W | 47 dB(A) | 24 V | View |
| LWCD-60750MN-06 | 597 m³/h | 31 Pa | 1,800 rpm | 28.8 W | 48 dB(A) | 24 V | View |
| LWCD-60870MN-06 | 693 m³/h | 32 Pa | 1,800 rpm | 30 W | 50 dB(A) | 24 V | View |
| LWCD-601100MN-06 | 857 m³/h | 34 Pa | 1,800 rpm | 31.2 W | 51 dB(A) | 24 V | View |
| LWCD-601300MN-06 | 1,012 m³/h | 35 Pa | 1,800 rpm | 32.64 W | 52 dB(A) | 24 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
