ImpellerØ43 mm1.7 in
Max airflow90 m³/h53 CFM
Max static pressure13 Pa0.05 in. wg
Voltage24 V
Speed2,400 rpm
Input power2.88 W
Noise39 dB(A)

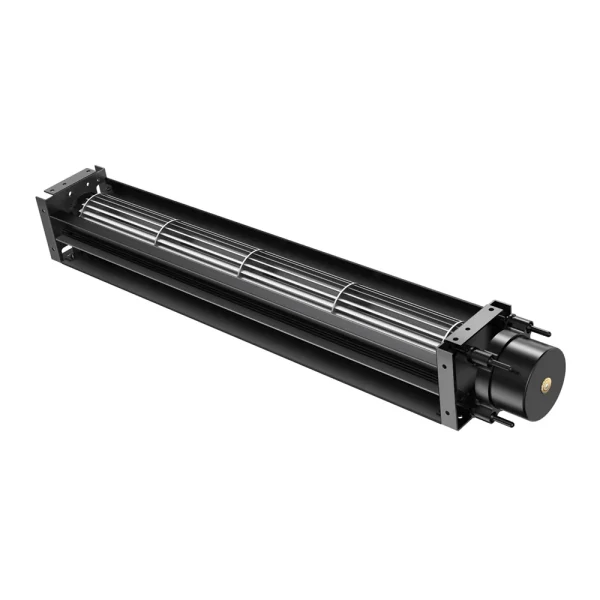

LWCD-43190MN-07 DC Cross Flow Fan Ø43 mm

Ø43 mm | DC | Max airflow 90 m³/h | Max static pressure 13 Pa | 39 dB(A)

SKU: LWCD-43190MN-07 Categories: Cross Flow Fans, DC Cross Flow Fans, Impeller Ø30–50 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWCD-43190MN-07

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com All files for LWCD-43190MN-07drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

LWCD-43190MN-07 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Need a non-standard size or another format? Ask an engineer or search the download center.

LWCD-43190MN-07 is a LONGWELL DC Cross Flow Fan from the DC Cross Flow Fans range, impeller Ø43 mm, rated 24 V DC, maximum airflow 90 m³/h, maximum static pressure 13 Pa, noise 39 dB(A), input power 2.88 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWCD-43190MN-07
Series	LWCD43190
Motor type	DC
Inlet	Single inlet
Rated voltage	24 V
Current	0.12 A
Input power	2.88 W
Speed	2,400 rpm
Max. airflow	90 m³/h
Max. static pressure	13 Pa
Noise	39 dB(A)
Ambient temperature	-25 ~ 60 °C
Impeller diameter	Ø43 mm
Outlet length	198mm
Impeller material	Aluminum alloy
Insulation class	B
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Indoor air-conditioning units
Air curtains and door air barriers
Elevator and cabinet ventilation
Linear air supply in appliances

Series LWCD43190: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø43 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWCD-43190MN-07 this model	90 m³/h	13 Pa	2,400 rpm	2.88 W	39 dB(A)	24 V
LWCD-4390MN-07	44 m³/h	12 Pa	2,400 rpm	1.68 W	36 dB(A)	24 V	View
LWCD-4390LN-06	44 m³/h	12 Pa	2,400 rpm	1.44 W	36 dB(A)	12 V	View
LWCD-43150LN-06	73 m³/h	12 Pa	2,400 rpm	2.2 W	37 dB(A)	12 V	View
LWCD-43150MN-07	73 m³/h	12 Pa	2,400 rpm	2.4 W	37 dB(A)	24 V	View
LWCD-43190LN-06	90 m³/h	13 Pa	2,400 rpm	2.4 W	39 dB(A)	12 V	View
LWCD-43250LN-06	113 m³/h	14 Pa	2,400 rpm	2.76 W	40 dB(A)	12 V	View
LWCD-43250MN-07	113 m³/h	14 Pa	2,400 rpm	3.12 W	40 dB(A)	24 V	View
LWCD-43290MN-07	136 m³/h	14 Pa	2,400 rpm	3.36 W	41 dB(A)	24 V	View
LWCD-43290LN-06	136 m³/h	14 Pa	2,400 rpm	3.12 W	41 dB(A)	12 V	View
LWCD-43350MN-07	158 m³/h	15 Pa	2,400 rpm	3.84 W	41 dB(A)	24 V	View
LWCD-43350LN-06	158 m³/h	15 Pa	2,400 rpm	3.48 W	41 dB(A)	12 V	View
LWCD-43420MN-07	191 m³/h	16 Pa	2,400 rpm	4.08 W	43 dB(A)	24 V	View
LWCD-43420LN-06	191 m³/h	16 Pa	2,400 rpm	3.84 W	43 dB(A)	12 V	View
