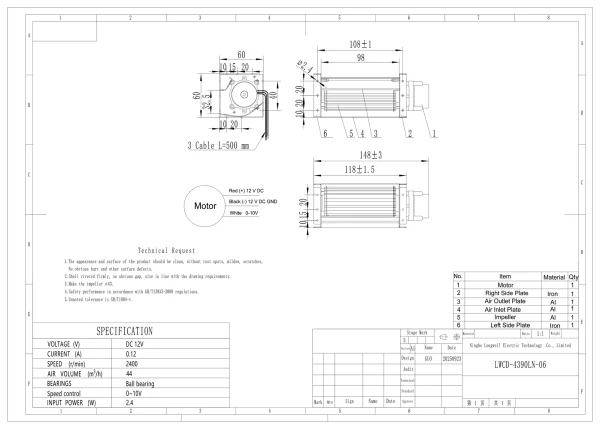

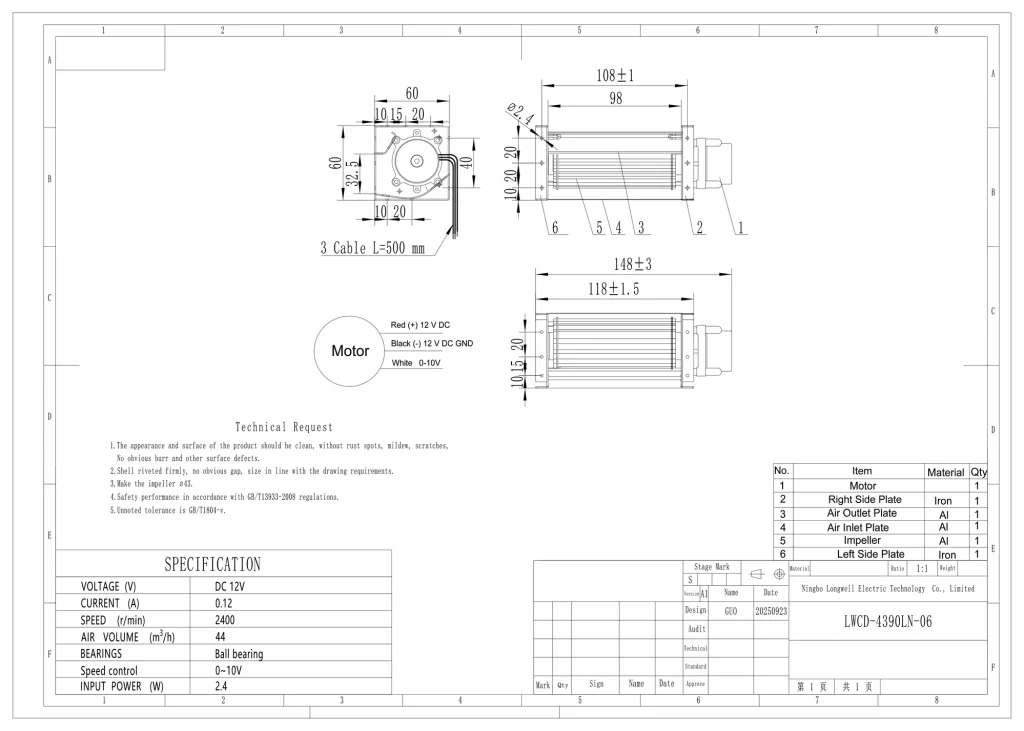

LWCD-4390LN-06 — construction, airflow path and running condition.
- ImpellerØ43 mm1.7 in
- Max airflow44 m³/h26 CFM
- Max static pressure12 Pa0.05 in. wg
- Voltage12 V
- Speed2,400 rpm
- Input power1.44 W
- Noise36 dB(A)

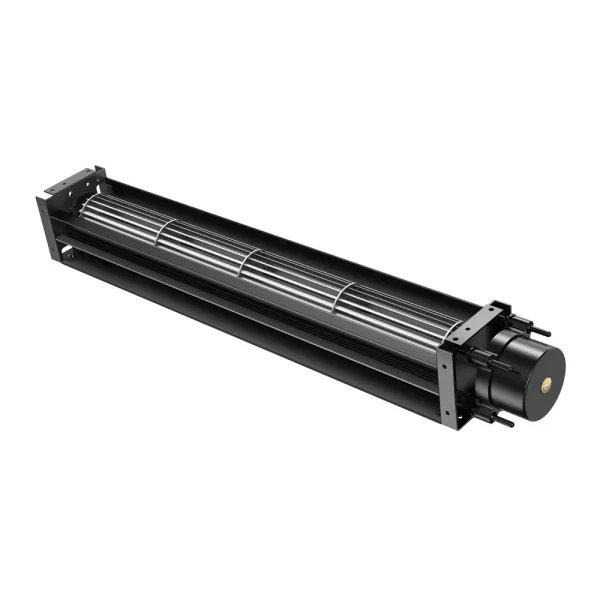

LWCD-4390LN-06 DC Cross Flow Fan Ø43 mm
Ø43 mm | DC | Max airflow 44 m³/h | Max static pressure 12 Pa | 36 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Need a non-standard size or another format? Ask an engineer or search the download center.
LWCD-4390LN-06 is a LONGWELL DC Cross Flow Fan from the DC Cross Flow Fans range, impeller Ø43 mm, rated 12 V DC, maximum airflow 44 m³/h, maximum static pressure 12 Pa, noise 36 dB(A), input power 1.44 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.
Technical data
| Model | LWCD-4390LN-06 |
|---|---|
| Series | LWCD4390 |
| Motor type | DC |
| Inlet | Single inlet |
| Rated voltage | 12 V |
| Current | 0.12 A |
| Input power | 1.44 W |
| Speed | 2,400 rpm |
| Max. airflow | 44 m³/h |
| Max. static pressure | 12 Pa |
| Noise | 36 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Impeller diameter | Ø43 mm |
| Outlet length | 98mm |
| Impeller material | Aluminum alloy |
| Insulation class | B |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCD4390: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø43 mm · DC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWCD-4390LN-06 this model | 44 m³/h | 12 Pa | 2,400 rpm | 1.44 W | 36 dB(A) | 12 V | |
| LWCD-4390MN-07 | 44 m³/h | 12 Pa | 2,400 rpm | 1.68 W | 36 dB(A) | 24 V | View |
| LWCD-43150LN-06 | 73 m³/h | 12 Pa | 2,400 rpm | 2.2 W | 37 dB(A) | 12 V | View |
| LWCD-43150MN-07 | 73 m³/h | 12 Pa | 2,400 rpm | 2.4 W | 37 dB(A) | 24 V | View |
| LWCD-43190MN-07 | 90 m³/h | 13 Pa | 2,400 rpm | 2.88 W | 39 dB(A) | 24 V | View |
| LWCD-43190LN-06 | 90 m³/h | 13 Pa | 2,400 rpm | 2.4 W | 39 dB(A) | 12 V | View |
| LWCD-43250LN-06 | 113 m³/h | 14 Pa | 2,400 rpm | 2.76 W | 40 dB(A) | 12 V | View |
| LWCD-43250MN-07 | 113 m³/h | 14 Pa | 2,400 rpm | 3.12 W | 40 dB(A) | 24 V | View |
| LWCD-43290MN-07 | 136 m³/h | 14 Pa | 2,400 rpm | 3.36 W | 41 dB(A) | 24 V | View |
| LWCD-43290LN-06 | 136 m³/h | 14 Pa | 2,400 rpm | 3.12 W | 41 dB(A) | 12 V | View |
| LWCD-43350MN-07 | 158 m³/h | 15 Pa | 2,400 rpm | 3.84 W | 41 dB(A) | 24 V | View |
| LWCD-43350LN-06 | 158 m³/h | 15 Pa | 2,400 rpm | 3.48 W | 41 dB(A) | 12 V | View |
| LWCD-43420MN-07 | 191 m³/h | 16 Pa | 2,400 rpm | 4.08 W | 43 dB(A) | 24 V | View |
| LWCD-43420LN-06 | 191 m³/h | 16 Pa | 2,400 rpm | 3.84 W | 43 dB(A) | 12 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
