ImpellerØ50 mm2.0 in
Max airflow139 m³/h82 CFM
Max static pressure34 Pa0.14 in. wg
Voltage12 V
Speed2,000 rpm
Input power4.32 W
Noise39 dB(A)

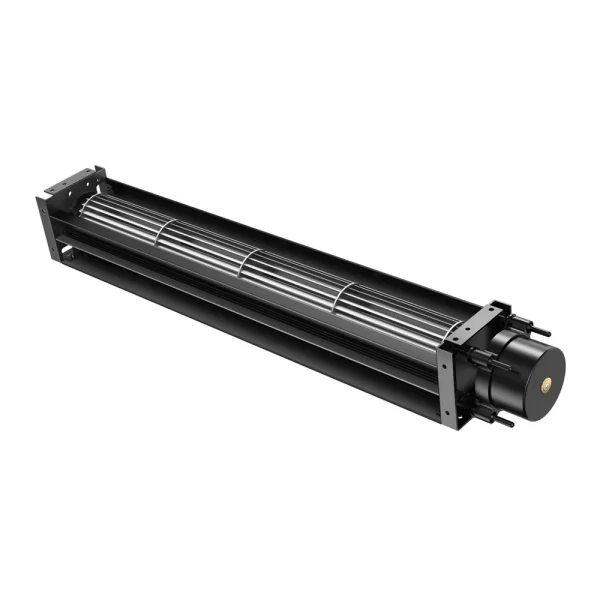

LWCD-50250LN-06 DC Cross Flow Fan Ø50 mm

Ø50 mm | DC | Max airflow 139 m³/h | Max static pressure 34 Pa | 39 dB(A)

SKU: LWCD-50250LN-06 Categories: Cross Flow Fans, DC Cross Flow Fans, Impeller Ø30–50 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWCD-50250LN-06

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for LWCD-50250LN-06drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

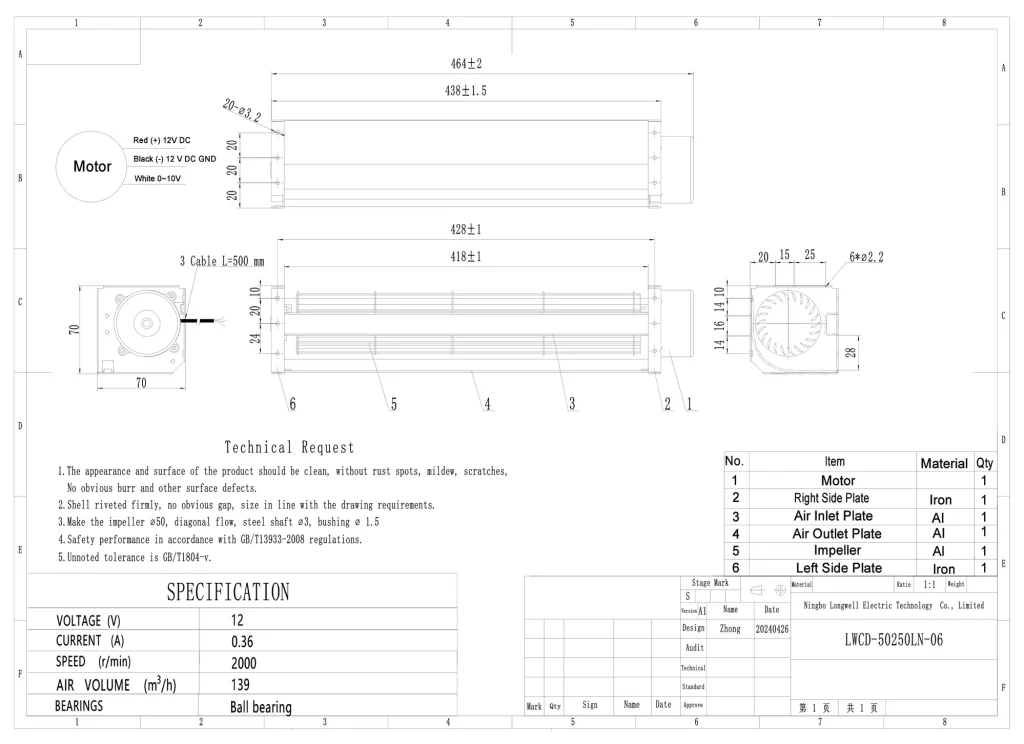

LWCD-50250LN-06 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Downloads for LWCD-50250LN-06

PDFDrawing · 310 KB PDFDatasheet · 310 KB

Need a non-standard size or another format? Ask an engineer or search the download center.

LWCD-50250LN-06 is a LONGWELL DC Cross Flow Fan from the DC Cross Flow Fans range, impeller Ø50 mm, rated 12 V DC, maximum airflow 139 m³/h, maximum static pressure 34 Pa, noise 39 dB(A), input power 4.32 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWCD-50250LN-06
Series	LWCD50250
Motor type	DC
Inlet	Single inlet
Rated voltage	12 V
Current	0.36 A
Input power	4.32 W
Speed	2,000 rpm
Max. airflow	139 m³/h
Max. static pressure	34 Pa
Noise	39 dB(A)
Ambient temperature	-25 ~ 60 °C
Impeller diameter	Ø50 mm
Outlet length	250mm
Impeller material	Aluminum alloy
Insulation class	B
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Indoor air-conditioning units
Air curtains and door air barriers
Elevator and cabinet ventilation
Linear air supply in appliances

Series LWCD50250: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø50 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWCD-50250LN-06 this model	139 m³/h	34 Pa	2,000 rpm	4.32 W	39 dB(A)	12 V
LWCD-50150MN-07	88 m³/h	38 Pa	2,000 rpm	2.4 W	37 dB(A)	24 V	View
LWCD-50150LN-06	88 m³/h	38 Pa	2,000 rpm	2.4 W	37 dB(A)	12 V	View
LWCD-50190MN-07	110 m³/h	36 Pa	2,000 rpm	3.36 W	38 dB(A)	24 V	View
LWCD-50190LN-06	110 m³/h	36 Pa	2,000 rpm	3.36 W	38 dB(A)	12 V	View
LWCD-50250MN-07	139 m³/h	34 Pa	2,000 rpm	4.32 W	39 dB(A)	24 V	View
LWCD-50290MN-07	161 m³/h	30 Pa	2,000 rpm	5.28 W	40 dB(A)	24 V	View
LWCD-50290LN-06	161 m³/h	30 Pa	2,000 rpm	5.28 W	40 dB(A)	12 V	View
LWCD-50350MN-07	198 m³/h	26 Pa	2,000 rpm	6.24 W	41 dB(A)	24 V	View
LWCD-50350LN-06	198 m³/h	26 Pa	2,000 rpm	6.24 W	41 dB(A)	12 V	View
LWCD-50420MN-07	232 m³/h	20 Pa	2,000 rpm	7.2 W	42 dB(A)	24 V	View
LWCD-50420LN-06	232 m³/h	20 Pa	2,000 rpm	7.2 W	42 dB(A)	12 V	View
LWCD-50530MN-06	288 m³/h	21 Pa	2,000 rpm	7.92 W	43 dB(A)	24 V	View
LWCD-50610MN-06	332 m³/h	19 Pa	2,000 rpm	8.88 W	42 dB(A)	24 V	View
LWCD-50700MN-06	381 m³/h	20 Pa	2,000 rpm	9.84 W	43 dB(A)	24 V	View
