ImpellerØ50 mm2.0 in
Max airflow332 m³/h195 CFM
Max static pressure19 Pa0.08 in. wg
Voltage24 V
Speed2,000 rpm
Input power8.88 W
Noise42 dB(A)

LWCD-50610MN-06 DC Cross Flow Fan Ø50 mm

Ø50 mm | DC | Max airflow 332 m³/h | Max static pressure 19 Pa | 42 dB(A)

SKU: LWCD-50610MN-06 Categories: Cross Flow Fans, DC Cross Flow Fans, Impeller Ø30–50 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · ETL · RoHS

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueCross FLow Fan · SKU on PDF p. 15

All files for LWCD-50610MN-066 files · direct download

PDFFull product catalogue · model on PDF p. 15 WEBPDimensional drawing WEBPWiring diagram DOCXDatasheet PDFDrawing

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Electric heaters Display cases Air curtains Air purifiers All industries →

Proven in projects

Air curtain OEM programme Trench convector & heating terminals Consumer air cooler & fan ODM All case studies →

Get a quote · LWCD-50610MN-06

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWCD-50610MN-06datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Drawing & Wiring LWCD-50610MN-06

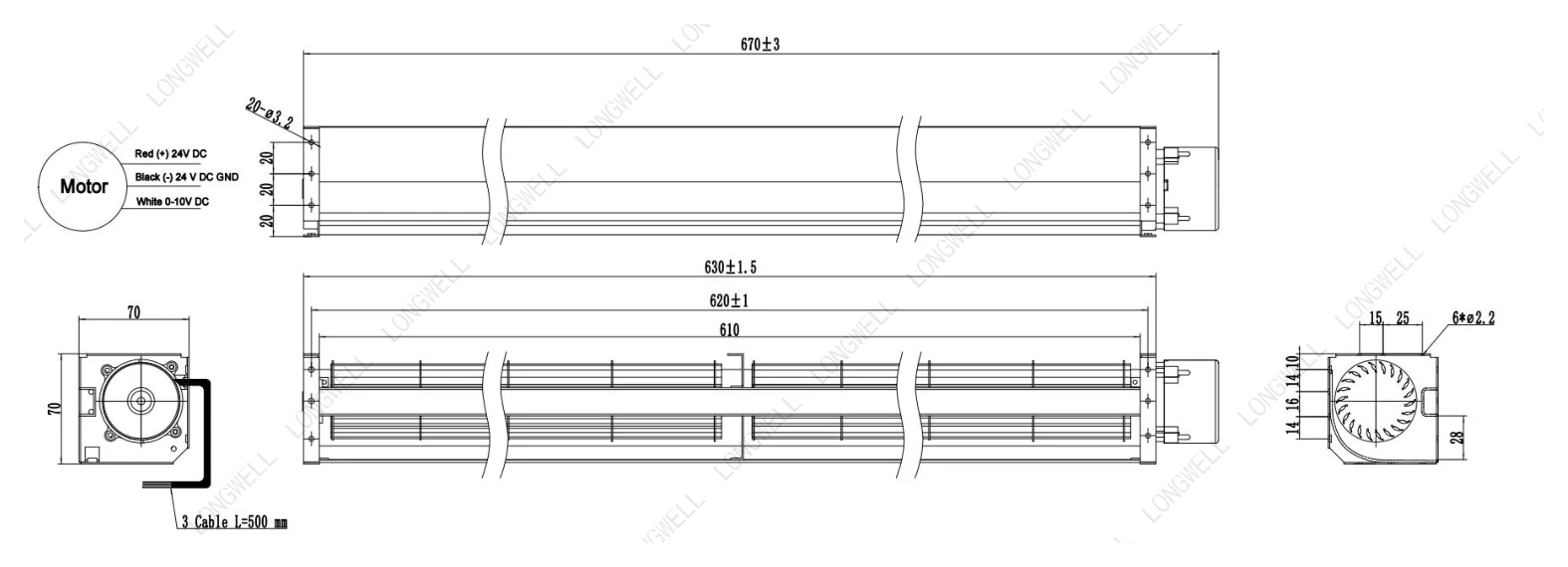

LWCD-50610MN-06 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

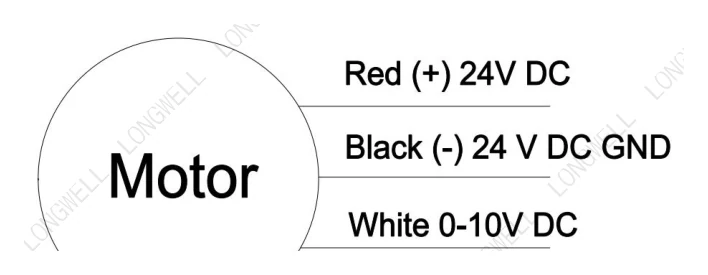

LWCD-50610MN-06 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Files for LWCD-50610MN-06: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWCD-50610MN-06

LWCD-50610MN-06 is a LONGWELL DC Cross Flow Fan from the DC Cross Flow Fans range, impeller Ø50 mm, rated 24 V DC, maximum airflow 332 m³/h, maximum static pressure 19 Pa, noise 42 dB(A), input power 8.88 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWCD-50610MN-06
Series	LWCD50610
Motor type	DC
Inlet	Dual inlet
Rated voltage	24 V
Current	0.37 A
Input power	8.88 W
Speed	2,000 rpm
Max. airflow	332 m³/h
Max. airflow (CFM)	195 CFM
Max. static pressure	19 Pa
Noise	42 dB(A)
Ambient temperature	-25 ~ 60 °C
Storage temperature	-25~60℃
Humidity	0 ~ 90 % RH
Impeller diameter	Ø50 mm
Outlet length	610mm
Impeller material	Aluminum alloy
Insulation class	B
Bearing	Maintenance-free ball bearings
Duty	S1
Vibration standard	JB/T8689
Speed control	Linear voltage:0-10VWhen the effective value of control voltage is greater than 1.5V,the motor starts up ;when the effective value of control voltage is greater than 10±0.1V,the motor runs at the full speed ;when the fan is running ,if the effective value of control voltage is lower than 1.5V ; The motor stops.

Typical applications

Indoor air-conditioning units
Air curtains and door air barriers
Elevator and cabinet ventilation
Linear air supply in appliances

Series LWCD50610: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
