- ImpellerØ120 mm
- Max airflow1,350 m³/h
- Max static pressure102 Pa
- Voltage230 V
- Speed1,350 rpm
- Input power70 W
- Noise65 dB(A)

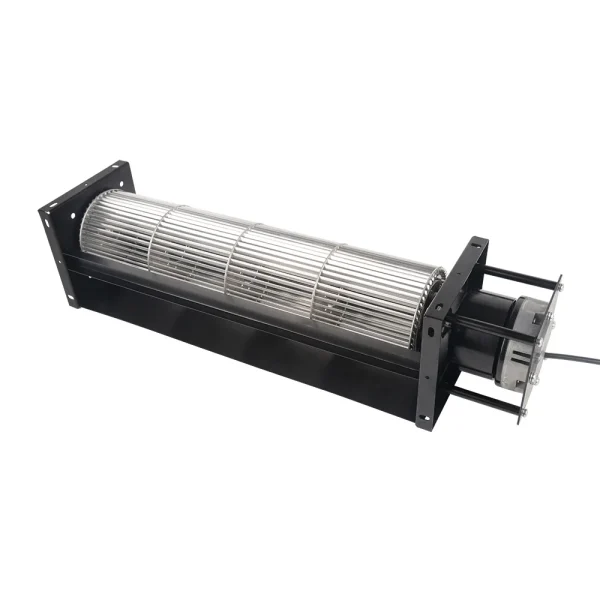

LWCE-120560SN-06 EC Cross Flow Fan Ø120 mm
Ø120 mm | EC | Max airflow 1,350 m³/h | Max static pressure 102 Pa | 65 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
LWCE-120560SN-06 is a LONGWELL EC Cross Flow Fan from the EC Cross Flow Fans range, impeller Ø120 mm, rated 230 V EC, maximum airflow 1,350 m³/h, maximum static pressure 102 Pa, noise 65 dB(A), input power 70 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWCE-120560SN-06 |
|---|---|
| Series | LWCE12056 |
| Motor type | EC |
| Phase | 1-phase |
| Inlet | Single inlet |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Input power | 70 W |
| Speed | 1,350 rpm |
| Max. airflow | 1,350 m³/h |
| Max. static pressure | 102 Pa |
| Noise | 65 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Impeller diameter | Ø120 mm |
| Outlet length | 490mm |
| Impeller material | Aluminum alloy |
| Insulation class | B |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCE12056: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø120 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWCE-120560SN-06 this model | 1,350 m³/h | 102 Pa | 1,350 rpm | 70 W | 65 dB(A) | 230 V | |
| LWAE12038SL-03 | 77 m³/h | 54.33 Pa | 2,500 rpm | — | 40 dB(A) | 100-240 V | View |
| LWAE12038SM-02 | 91.03 m³/h | 73.74 Pa | 3,000 rpm | — | 43 dB(A) | 100-240 V | View |
| LWAE12038SL-06 | 94.72 m³/h | 59.07 Pa | 2,500 rpm | — | 40 dB(A) | 100-240 V | View |
| LWAE12038SH-01 | 108.21 m³/h | 90.98 Pa | 3,500 rpm | — | 47 dB(A) | 100-240 V | View |
| LWAE12038SM-05 | 115.01 m³/h | 80.53 Pa | 3,000 rpm | — | 43 dB(A) | 100-240 V | View |
| LWAE12038SH-04 | 139.1 m³/h | 111.47 Pa | 3,500 rpm | — | 47 dB(A) | 100-240 V | View |
| LWFE3G120-072SS-01 | 268 m³/h | 443 Pa | 2,200 rpm | 42 W | 60 dB(A) | 230 V | View |
| LWFE3G120-072NS-01 | 350 m³/h | 412 Pa | 3,230 rpm | 90 W | 67 dB(A) | 230 V | View |
| LWFE3G120-072SS-02 | 361 m³/h | 649 Pa | 3,650 rpm | 75 W | 61 dB(A) | 230 V | View |
| LWFE3G120-072DS-01 | 433 m³/h | 263 Pa | 1,900 rpm | 70 W | 59 dB(A) | 230 V | View |
| LWCE-120380SN-06 | 900 m³/h | 68 Pa | 1,350 rpm | 53 W | 63 dB(A) | 230 V | View |
| LWCE-120680SN-06 | 1,600 m³/h | 123 Pa | 1,350 rpm | 80 W | 67 dB(A) | 230 V | View |
| LWCE-120780SN-06 | 1,900 m³/h | 141 Pa | 1,350 rpm | 92 W | 71 dB(A) | 230 V | View |
| LWCE-120900SN-06 | 2,100 m³/h | 161 Pa | 1,350 rpm | 105 W | 72 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
