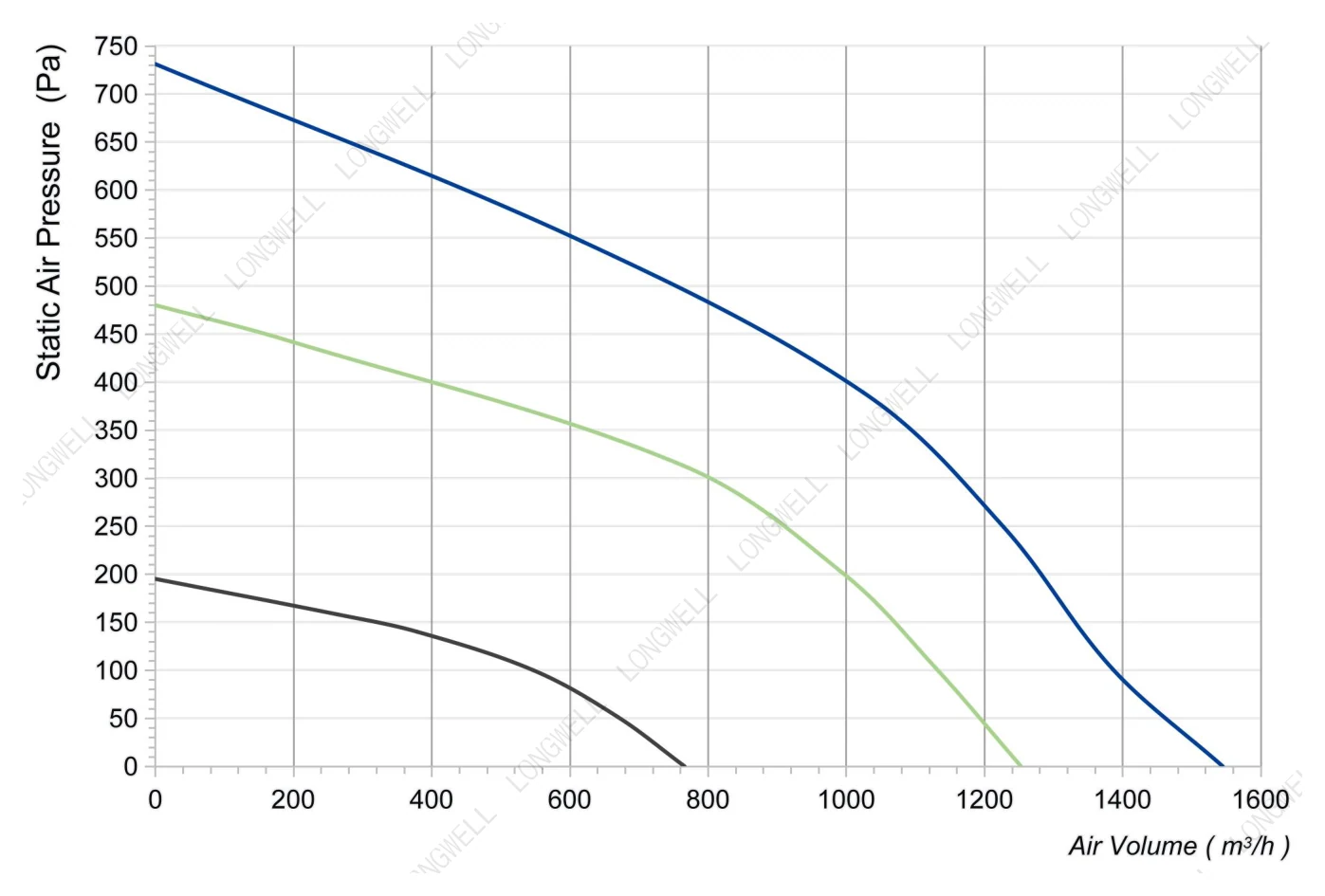

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ225 mm
- Max airflow1,359.6 m³/h
- Max static pressure906.4 Pa
- Voltage115 V
- Speed3,600 rpm
- Input power230 W
- Noise71 dB(A)
LWBE3G225-092NU-17 EC Backward Curved Centrifugal Fan Ø225 mm
Ø225 mm | EC | Max airflow 1,359.6 m³/h | Max static pressure 906.4 Pa | 71 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Engineering files (on request)

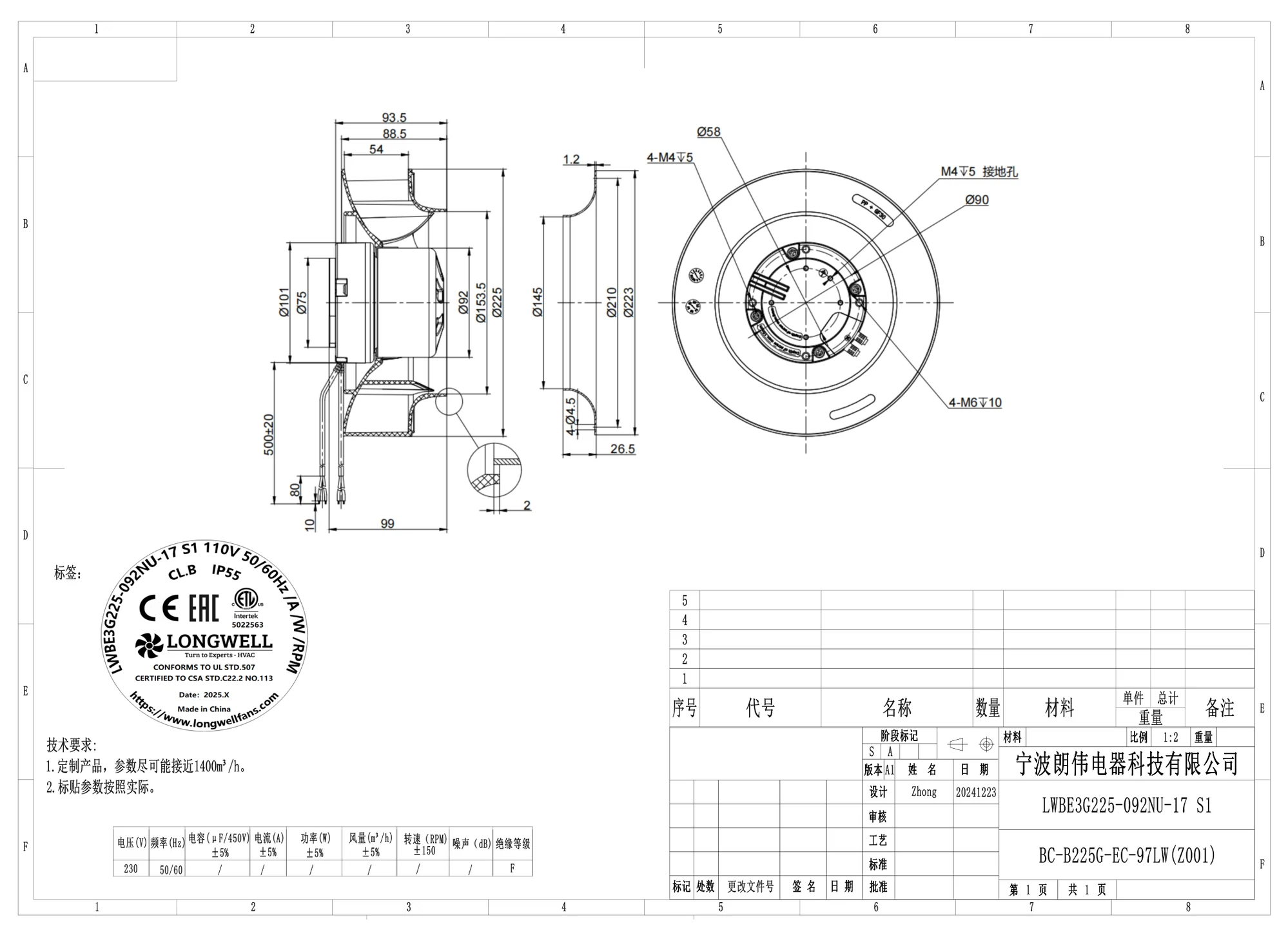

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
Need a non-standard size or another format? Ask an engineer or search the download center.

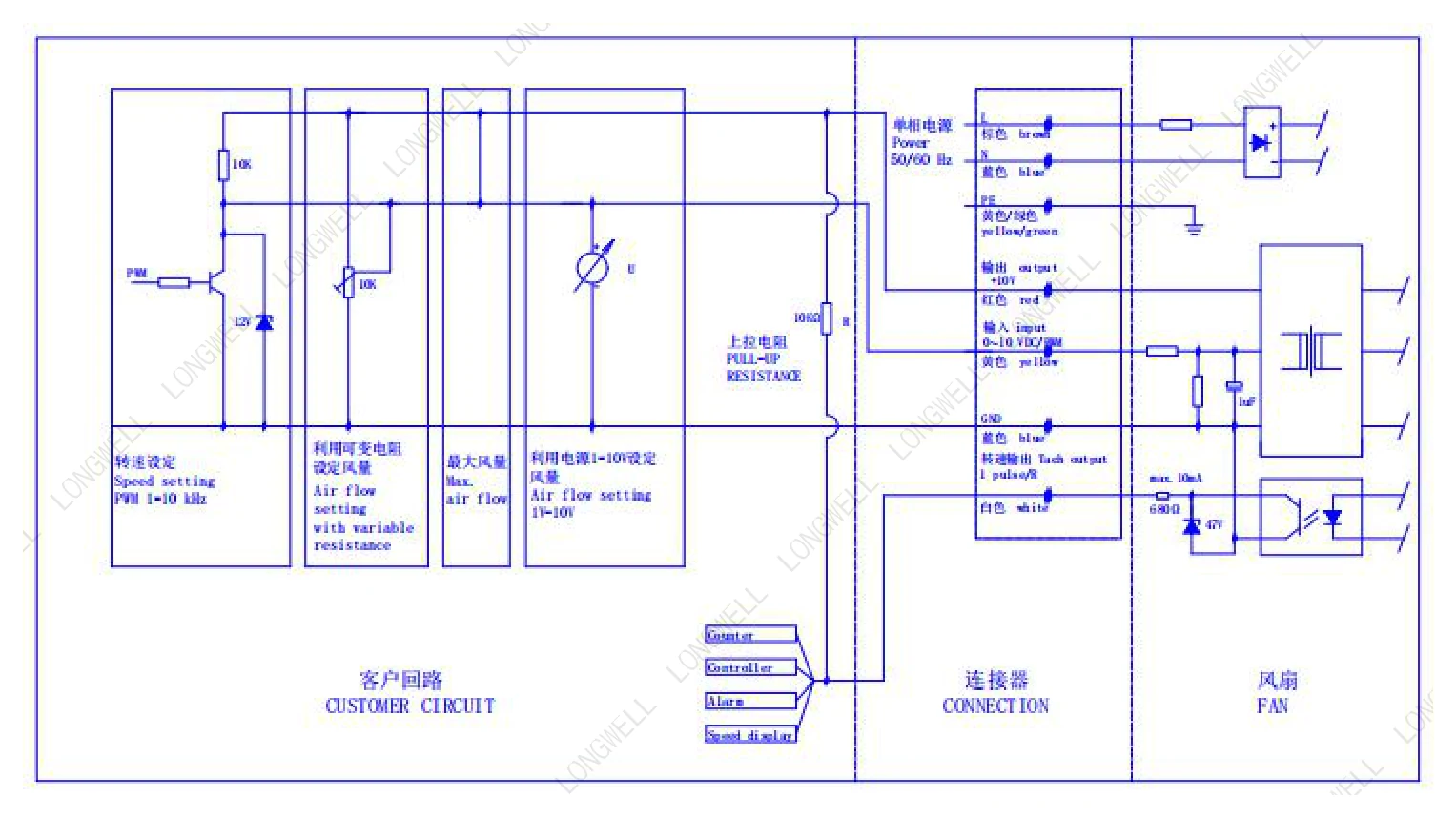

LWBE3G225-092NU-17 is a LONGWELL EC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø225 mm, rated 115 V EC, maximum airflow 1,359.6 m³/h, maximum static pressure 906.4 Pa, noise 71 dB(A), input power 230 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWBE3G225-092NU-17 |
|---|---|
| Series | LWBE3G225 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 115 V |
| Frequency | 50 Hz |
| Current | 3.4 A |
| Input power | 230 W |
| Speed | 3,600 rpm |
| Max. airflow | 1,359.6 m³/h |
| Max. airflow (CFM) | 861 CFM |
| Max. static pressure | 906.4 Pa |
| Noise | 71 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -25 ~ 60℃ |
| Humidity | 30 ~ 90 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø225 mm |
| Rotor diameter | 92 |
| Impeller material | Metal ( Impeller ) Bearing Maintenance-free deep groove ball bearings Weight / LONGWELL NGWELL L L LONGWE Version number : A0 NINGBO LONGWELL ELECTRIC TECHNOLOGY CO.,LTD . Phone: 0086 574 6218 9863 FAX : 0086 574 6218 986 |
| Protection class | IP55 |
| Insulation class | B |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH. Balancing According to JB/T 9101-1999 requirements G6.3 Vibration of the fan Test method accord with JB/T 8689 Installation method Horizontal or vertical installation Mate |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBE3G225: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø225 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWBE3G225-092NU-17 this model | 1,359.6 m³/h | 906.4 Pa | 3,600 rpm | 230 W | 71 dB(A) | 115 V | |
| LWFE3G225-072PS-01 | 1,009.4 m³/h | 618 Pa | 2,300 rpm | 85 W | 65 dB(A) | 230 V | View |
| LWBE3G225-072PS-11 | 1,112 m³/h | 433 Pa | 2,500 rpm | 80 W | 69 dB(A) | 230 V | View |
| LWBE3G225-072NS-10 | 1,112 m³/h | 433 Pa | 2,500 rpm | 80 W | 69 dB(A) | 230 V | View |
| LWFE3G225-072PS-02 | 1,184.5 m³/h | 669.5 Pa | 2,600 rpm | 115 W | 67 dB(A) | 230 V | View |
| LWFE3G225-072PS-03 | 1,313.25 m³/h | 1,030 Pa | 3,100 rpm | 170 W | 70 dB(A) | 230 V | View |
| LWBE3G225-072NU-16 | 1,313.25 m³/h | 1,030 Pa | 3,100 rpm | 170 W | 70 dB(A) | 115 V | View |
| LWFE3G225-092PS-04 | 1,359.6 m³/h | 906.4 Pa | 3,600 rpm | 230 W | 71 dB(A) | 230 V | View |
| LWBE3G225-092NS-10 | 1,359.6 m³/h | 906.4 Pa | 3,600 rpm | 230 W | 71 dB(A) | 230 V | View |
| LWBE3G225-092PS-12 | 1,528 m³/h | 683 Pa | 3,060 rpm | 170 W | 71.1 dB(A) | 230 V | View |
| LWBE3G225-092NS-11 | 1,528 m³/h | 683 Pa | 3,060 rpm | 170 W | 71 dB(A) | 230 V | View |
| LWBE3G225-092PS-13 | 1,545 m³/h | 731 Pa | 3,000 rpm | 160 W | 71 dB(A) | 230 V | View |
| LWBE3G225-092NS-12 | 1,545 m³/h | 731 Pa | 3,000 rpm | 160 W | 71 dB(A) | 230 V | View |
| LWBE3G225-092PS-07 | 1,630 m³/h | 839 Pa | 3,500 rpm | 315 W | 71 dB(A) | 230 V | View |
| LWBE3G225-092NS-13 | 1,630 m³/h | 839 Pa | 3,500 rpm | 315 W | 71 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
