- ImpellerØ150 mm
- Max airflow3,100 m³/h
- Max static pressure119 Pa
- Voltage230 V
- Speed800 rpm
- Input power350 W
- Noise72 dB(A)

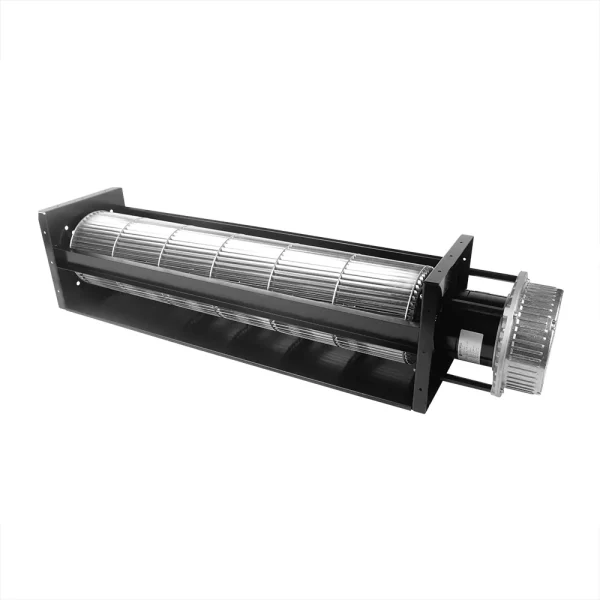

LWCE-1501000SN-06 EC Cross Flow Fan Ø150 mm
Ø150 mm | EC | Max airflow 3,100 m³/h | Max static pressure 119 Pa | 72 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Engineering files (on request)

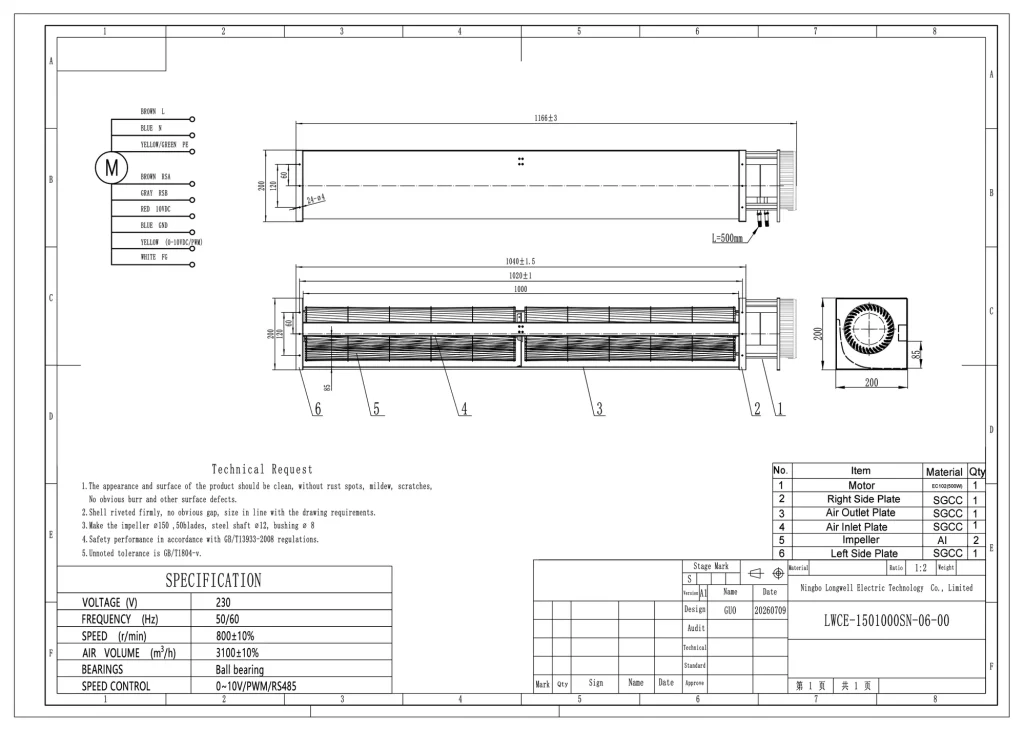

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
LWCE-1501000SN-06 is a LONGWELL EC Cross Flow Fan from the EC Cross Flow Fans range, impeller Ø150 mm, rated 230 V EC, maximum airflow 3,100 m³/h, maximum static pressure 119 Pa, noise 72 dB(A), input power 350 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWCE-1501000SN-06 |
|---|---|
| Series | LWCE15010 |
| Motor type | EC |
| Phase | 1-phase |
| Inlet | Dual inlet |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Input power | 350 W |
| Speed | 800 rpm |
| Max. airflow | 3,100 m³/h |
| Max. static pressure | 119 Pa |
| Noise | 72 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Impeller diameter | Ø150 mm |
| Outlet length | 1000mm |
| Impeller material | Aluminum alloy |
| Insulation class | B |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Indoor air-conditioning units
- Air curtains and door air barriers
- Elevator and cabinet ventilation
- Linear air supply in appliances
Series LWCE15010: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø150 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWCE-1501000SN-06 this model | 3,100 m³/h | 119 Pa | 800 rpm | 350 W | 72 dB(A) | 230 V | |
| LWDE-150 (6")U-MWN-01 | 437 m³/h | see curve | 3,400 rpm | 35 W | 58 dB(A) | 110-120 V | View |
| LWDE-150 (6")U-MWN-03 | 437 m³/h | see curve | 3,400 rpm | 35 W | 53 dB(A) | 110-120 V | View |
| LWFE3G150-092SS-01 | 577 m³/h | 412 Pa | 2,550 rpm | 150 W | 72 dB(A) | 230 V | View |
| LWDE-150S-MBN-11 | 700 m³/h | 608 Pa | 2,650 rpm | 85 W | 66 dB(A) | 230 V | View |
| LWDE-150 (6")S-MWN-02 | 720 m³/h | see curve | 3,400 rpm | 35 W | 58 dB(A) | 220-240 V | View |
| LWDE-150 (6")S-MWN-04 | 720 m³/h | see curve | 3,400 rpm | 35 W | 53 dB(A) | 220-240 V | View |
| LWCE-150380SN-06 | 1,600 m³/h | 62 Pa | 1,100 rpm | 70 W | 69 dB(A) | 230 V | View |
| LWCE-150500SN-06 | 2,150 m³/h | 82 Pa | 1,100 rpm | 145 W | 70 dB(A) | 230 V | View |
| LWCE-150700SN-06 | 2,700 m³/h | 104 Pa | 1,000 rpm | 250 W | 71 dB(A) | 230 V | View |
| LWCE-1501200SN-06 | 3,700 m³/h | 143 Pa | 800 rpm | 450 W | 75 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
Related products
Adjacent sizesOne size up when airflow is short, one size down when it is too much
LWCA-120680SN-06Ø120 mm · 1,560 m³/h · 122 Pa · ACadjacent size
LWCA-120380SN-06Ø120 mm · 1,000 m³/h · 68 Pa · ACadjacent size
LWCA-120560SN-06Ø120 mm · 1,380 m³/h · 100 Pa · ACadjacent size
LWCD-120380MN-06Ø120 mm · 900 m³/h · 68 Pa · DCadjacent size
LWCA-120780SN-06Ø120 mm · 1,780 m³/h · 140 Pa · ACadjacent size
LWCA-120900SN-06Ø120 mm · 2,000 m³/h · 161 Pa · ACadjacent sizeAlternatives at a similar dutySimilar airflow, different construction or motor platform
LWFA-E-300-03Ø300 mm · 3,100 m³/h · 422 Pa · ACsimilar duty
LWAA2D300S-5MBW-05Ø300 mm · 3,090 m³/h · ACsimilar dutyLWAA2E300S-5MBW-07Ø300 mm · 3,090 m³/h · ACsimilar duty
LWAA4E350S-5MEB-02Ø350 mm · 3,090 m³/h · ACsimilar duty

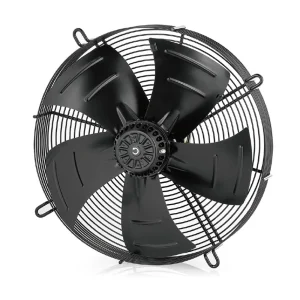

LWAA6D400S-5MEB-08Ø400 mm · 3,090 m³/h · ACsimilar duty
