ImpellerØ150 mm5.9 in
Max airflow2,700 m³/h1,777 CFM
Max static pressure104 Pa0.42 in. wg
Voltage230 V
Speed1,000 rpm
Input power250 W
Noise71 dB(A)

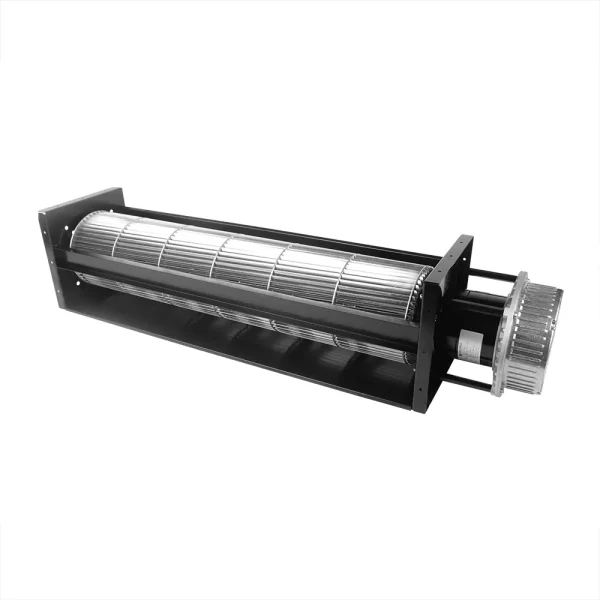

LWCE-150700SN-06 EC Cross Flow Fan Ø150 mm

Ø150 mm | EC | Max airflow 2,700 m³/h | Max static pressure 104 Pa | 71 dB(A)

SKU: LWCE-150700SN-06 Categories: Cross Flow Fans, EC Cross Flow Fans, Impeller Ø110–150 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueCross FLow Fan · SKU on PDF p. 41

All files for LWCE-150700SN-067 files · direct download

PDFFull product catalogue · model on PDF p. 41 WEBPDimensional drawing WEBPPerformance curve WEBPWiring diagram DOCXDatasheet PDFDrawing

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Air curtains Dry-type transformer cooling Fan coil units Electric heaters All industries →

Proven in projects

Air curtain OEM programme Trench convector & heating terminals Consumer air cooler & fan ODM All case studies →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWCE-150700SN-06

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWCE-150700SN-06datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Drawing, Curve & Wiring LWCE-150700SN-06

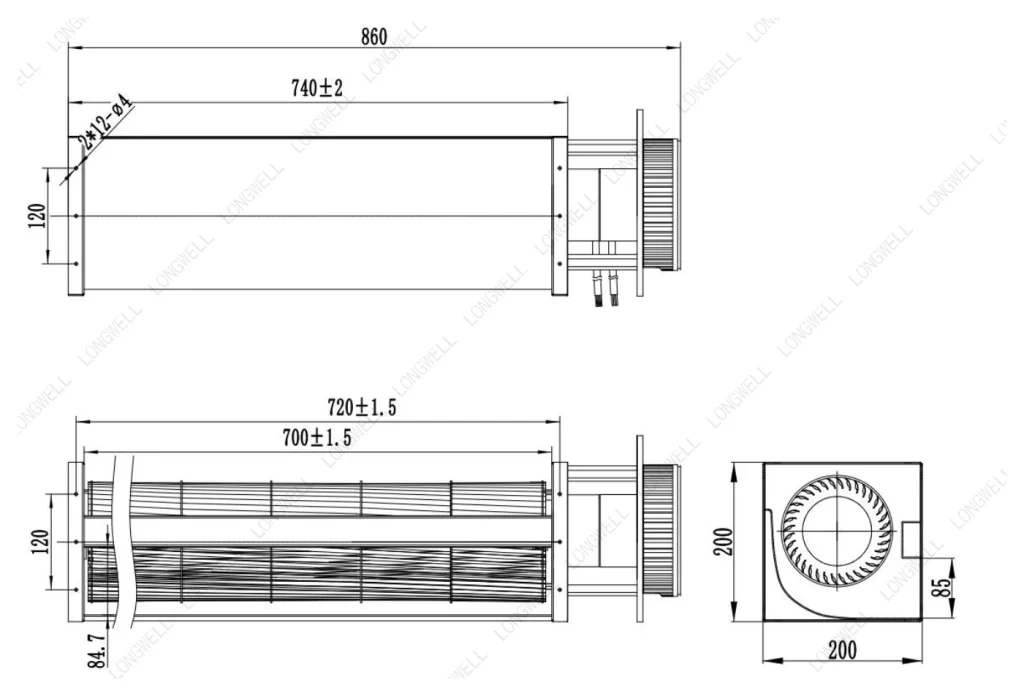

LWCE-150700SN-06 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

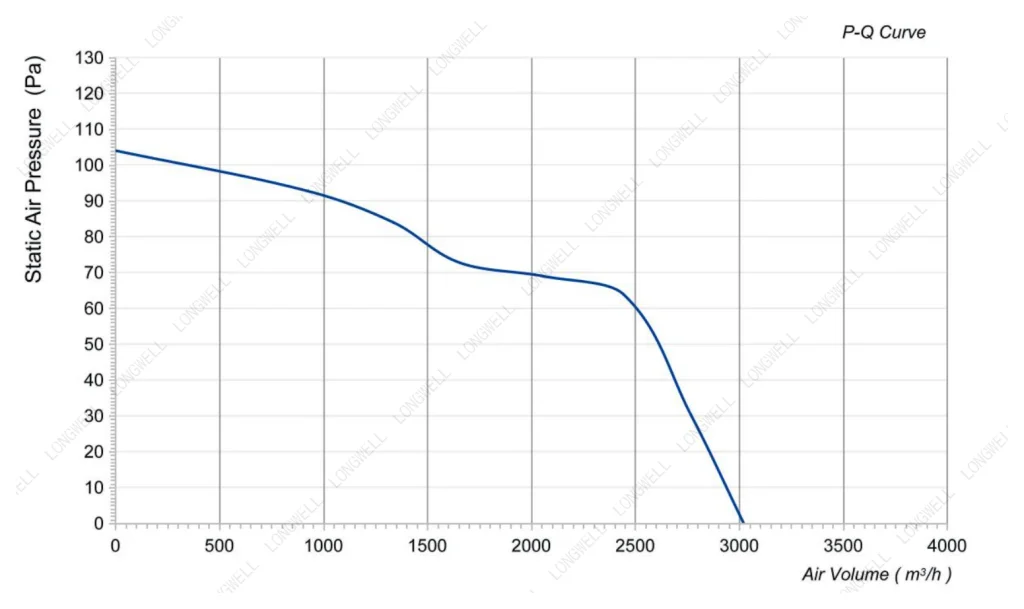

LWCE-150700SN-06 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

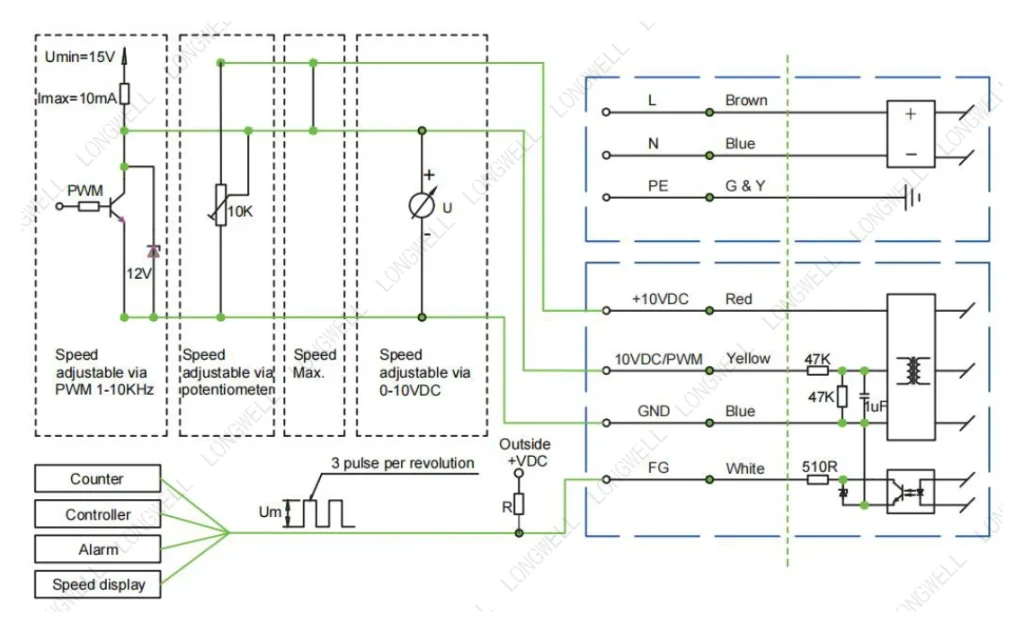

LWCE-150700SN-06 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Files for LWCE-150700SN-06: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWCE-150700SN-06

LWCE-150700SN-06 is a LONGWELL EC Cross Flow Fan from the EC Cross Flow Fans range, impeller Ø150 mm, rated 230 V EC, maximum airflow 2,700 m³/h, maximum static pressure 104 Pa, noise 71 dB(A), input power 250 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWCE-150700SN-06
Series	LWCE150700
Motor type	EC
Phase	1-phase
Inlet	Single inlet
Rated voltage	230 V
Frequency	50 Hz
Current	1.1 A
Input power	250 W
Speed	1,000 rpm
Max. airflow	2,700 m³/h
Max. airflow (CFM)	1,777 CFM
Max. static pressure	104 Pa
Noise	71 dB(A)
Ambient temperature	-25 ~ 60 °C
Storage temperature	-25 ~ 70℃
Humidity	0 ~ 85% RH
Altitude	< 1000m
Impeller diameter	Ø150 mm
Outlet length	700mm
Impeller material	Aluminium (Impeller)
Protection class	IP54
Insulation class	F
Bearing	Maintenance-free deep groove ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T 8689
Service life	30,000Hours(L10). At 40℃room, humidity 15%~65%RH
Speed control	Control input 0~10VDC/PWM
Control signal	Control signal VSP voltage range 1.5±0.1VDC~9.5±0.2VDC(During normal operation, when the VSP voltage is below 0.9±0.1VDC, the motor switches from operating mode to standby mode)
Speed feedback	Tach output: 3Pulse/R; FG internal open circuit output, external pull-up resistor R, pull-up voltage V+
Auxiliary output	Output 10±0.3VDC, Max Current: 10mA
Protection functions	Current limiting protection, Over-temperature protection, Over-current protectionLocked-rotor protection, Input power supply lacks phase protection
Soft start	Delay time <30 seconds to full speed

Typical applications

Indoor air-conditioning units
Air curtains and door air barriers
Elevator and cabinet ventilation
Linear air supply in appliances

Series LWCE150700: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
