- ImpellerØ350 mm
- Max airflow6,450 m³/h
- Voltage220-240 V
- Speed2,900 rpm
- Input power903 W
- Noise79 dB(A)

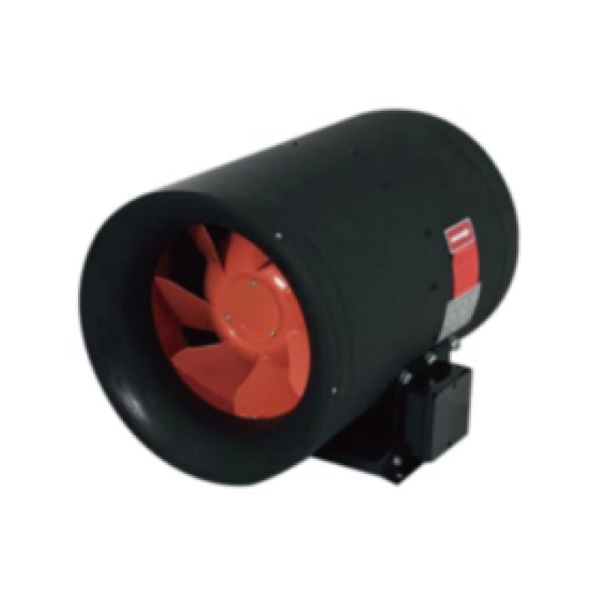

LWDA-350 (14″)S-MWN-02 AC Mixed Flow Fan Ø350 mm
Ø350 mm | AC | Max airflow 6,450 m³/h | 79 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
LWDA-350 (14")S-MWN-02 is a LONGWELL AC Mixed Flow Fan from the Mixed Flow Fans range, impeller Ø350 mm, rated 220-240 V AC, maximum airflow 6,450 m³/h, noise 79 dB(A), input power 903 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWDA-350 (14")S-MWN-02 |
|---|---|
| Series | LWDA350 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 220-240 V |
| Frequency | 50 Hz |
| Input power | 903 W |
| Speed | 2,900 rpm |
| Max. airflow | 6,450 m³/h |
| Noise | 79 dB(A) |
| Impeller diameter | Ø350 mm |
| Inlet diameter | 350mm |
Typical applications
- Residential and commercial fresh-air systems
- Kitchen and bathroom exhaust
- Local pressurisation and booster duty
- Hotel and office ventilation
Series LWDA350: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø350 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWDA-350 (14")S-MWN-02 this model | 6,450 m³/h | see curve | 2,900 rpm | 903 W | 79 dB(A) | 220-240 V | |
| LWA-350(14")U(S)M-01 | 60 m³/h | see curve | 1,350 rpm | 140 W | — | 110-120 V | View |
| LWA-350(14")U(S)M-02 | 65 m³/h | see curve | 1,350 rpm | 160 W | — | 110-120 V | View |
| LWA-350(14")U(S)M-03 | 98 m³/h | see curve | 2,800 rpm | 550 W | — | 110-120 V | View |
| LWAA6E350S-5MEB-05 | 1,607 m³/h | see curve | 950 rpm | 75 W | 53 dB(A) | 220/230 V | View |
| LWAA6D350S-5MEB-07 | 1,607 m³/h | see curve | 920 rpm | 70 W | 53 dB(A) | 380 V | View |
| LWAA6E350S-5MEB-06 | 1,854 m³/h | see curve | 1,100 rpm | 83 W | 54 dB(A) | 220/230 V | View |
| LWAA6D350S-5MEB-08 | 1,854 m³/h | see curve | 1,050 rpm | 80 W | 54 dB(A) | 380 V | View |
| LWDA-350 (14")U-MWN-01 | 2,130 m³/h | see curve | 1,720 rpm | 260 W | 74 dB(A) | 110-120 V | View |
| LWAA4E350S-5MEB-17 | 2,493 m³/h | see curve | 1,380 rpm | 150 W | — | 220 V | View |
| LWAA4D350S-5MEW-18 | 2,575 m³/h | see curve | 1,400 rpm | 150 W | — | 380 V | View |
| LWFA-E-350-01 | 2,950 m³/h | 370 Pa | — | — | 65 dB(A) | — | View |
| LWAA4E350S-5MKB-16 | 3,760 m³/h | see curve | 1,500 rpm | 200 W | 58 dB(A) | 380 V | View |
| LWAA4E350S-5MKB-14 | 3,760 m³/h | see curve | 1,500 rpm | 200 W | 58 dB(A) | 220/230 V | View |
| LWA-350(14")U(S)M-04 | 5,500 m³/h | 250 Pa | 2,800 rpm | 750 W | — | 110-120 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
Related products
Other models in the LWDA350 seriesSame impeller, different speed grade or wiring
Adjacent sizesOne size up when airflow is short, one size down when it is too much
LWDA-355 (14")U-MWN-03Ø355 mm · 2,130 m³/h · ACadjacent size
LWDE-355 (14")U-MWN-03Ø355 mm · 3,467 m³/h · ECadjacent sizeLWDE-355 (14")S-MWN-04Ø355 mm · 6,200 m³/h · ECadjacent size

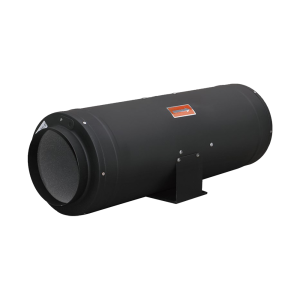

LWDA-355 (14")S-MWN-04Ø355 mm · 6,450 m³/h · ACadjacent size
