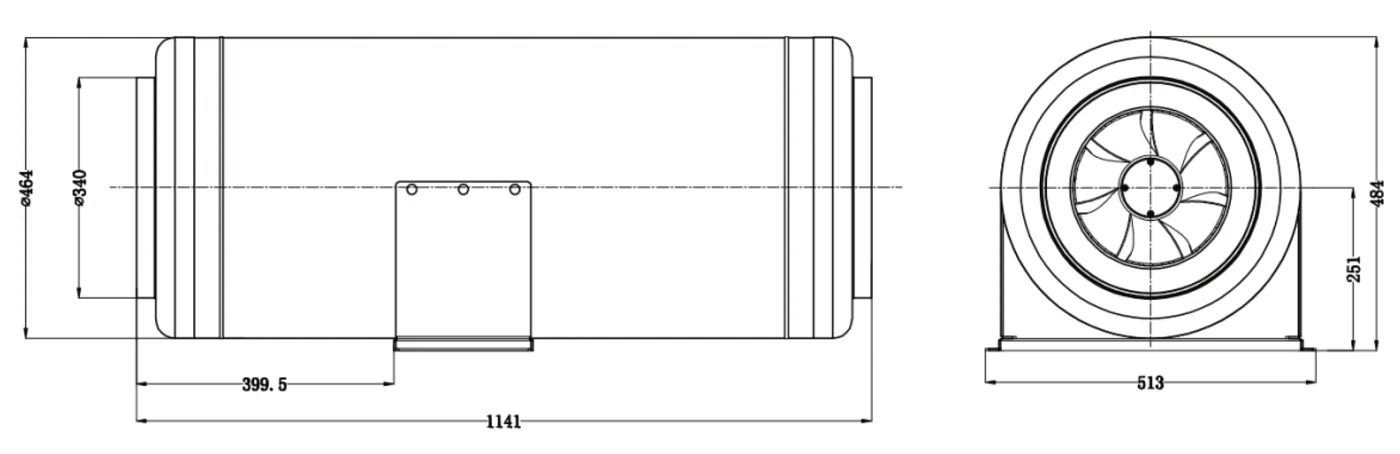

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ355 mm14.0 in
- Max airflow6,200 m³/h3,649 CFM
- Voltage220-240 V
- Speed2,800 rpm
- Input power659 W
- Noise67 dB(A)
LWDE-355 (14″)S-MWN-04 EC Ultra Silent Metal Duct Fan Ø355 mm
Ø355 mm | EC | Max airflow 6,200 m³/h | 67 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
All files for LWDE-355 (14")S-MWN-041 files · direct download
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Proven in: Smart home ERV · Range hoods, ovens & fan coils · Drying, heat treatment & ovens — all case studies on longwellfans.com
Typical applications: Central ventilation units · Building & agricultural ventilation · Vertical farming — all industries
LWDE-355 (14")S-MWN-04 is a LONGWELL EC Ultra Silent Metal Duct Fan from the Ultra Silent Duct Fans range, impeller Ø355 mm, rated 220-240 V EC, maximum airflow 6,200 m³/h, noise 67 dB(A), input power 659 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWDE-355 (14")S-MWN-04 |
|---|---|
| Series | LWDE355 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 220-240 V |
| Frequency | 50 Hz |
| Input power | 659 W |
| Speed | 2,800 rpm |
| Max. airflow | 6,200 m³/h |
| Noise | 67 dB(A) |
| Impeller diameter | Ø355 mm |
| Inlet diameter | 355mm |
Typical applications
- Residential and commercial fresh-air systems
- Kitchen and bathroom exhaust
- Local pressurisation and booster duty
- Hotel and office ventilation
Series LWDE355: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø355 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWDE-355 (14")S-MWN-04 this model | 6,200 m³/h | see curve | 2,800 rpm | 659 W | 67 dB(A) | 220-240 V | |
| LWDE-355 (14")U-MWN-03 | 3,467 m³/h | see curve | 2,800 rpm | 659 W | 67 dB(A) | 110-120 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
