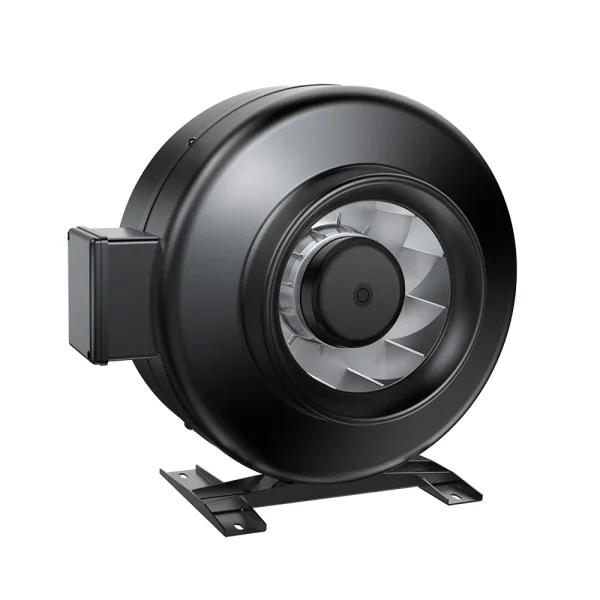

EC Metal Inline Duct Fan — series representative image for LWDE-150S-MBN-11

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ150 mm5.9 in
Max airflow700 m³/h412 CFM
Max static pressure608 Pa2.44 in. wg
Voltage230 V
Speed2,650 rpm
Input power85 W
Noise66 dB(A)

LWDE-150S-MBN-11 EC Metal Inline Duct Fan Ø150 mm

Ø150 mm | EC | Max airflow 700 m³/h | Max static pressure 608 Pa | 66 dB(A)

SKU: LWDE-150S-MBN-11 Categories: Impeller Ø100–150 mm, Inline Duct Fans, Metal Inline Duct Fans

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueAC&DC&EC AC&DC&EC Metal duct fans · SKU on PDF p. 16

All files for LWDE-150S-MBN-115 files · direct download

PDFFull product catalogue · model on PDF p. 16 WEBPDimensional drawing WEBPPerformance curve WEBPWiring diagram

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Building & agricultural ventilation Vertical farming All industries →

Proven in projects

Smart home ERV Range hoods, ovens & fan coils Drying, heat treatment & ovens All case studies →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWDE-150S-MBN-11

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWDE-150S-MBN-11datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWDE-150S-MBN-11

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 230 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Video LWDE-150S-MBN-11

EC Plastic Duct Fan LWDE-150S Series: Quiet, Efficient & Smart | LWDE-150S-PBY-02 · open in video library

Drawing, Curve & Wiring LWDE-150S-MBN-11

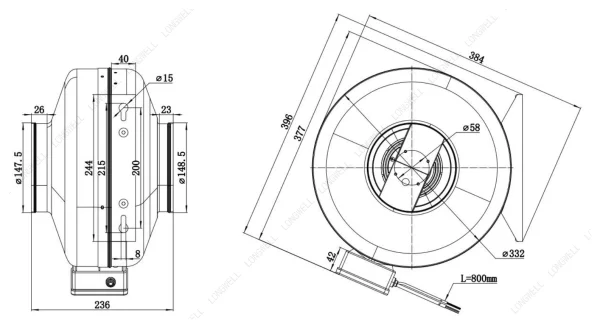

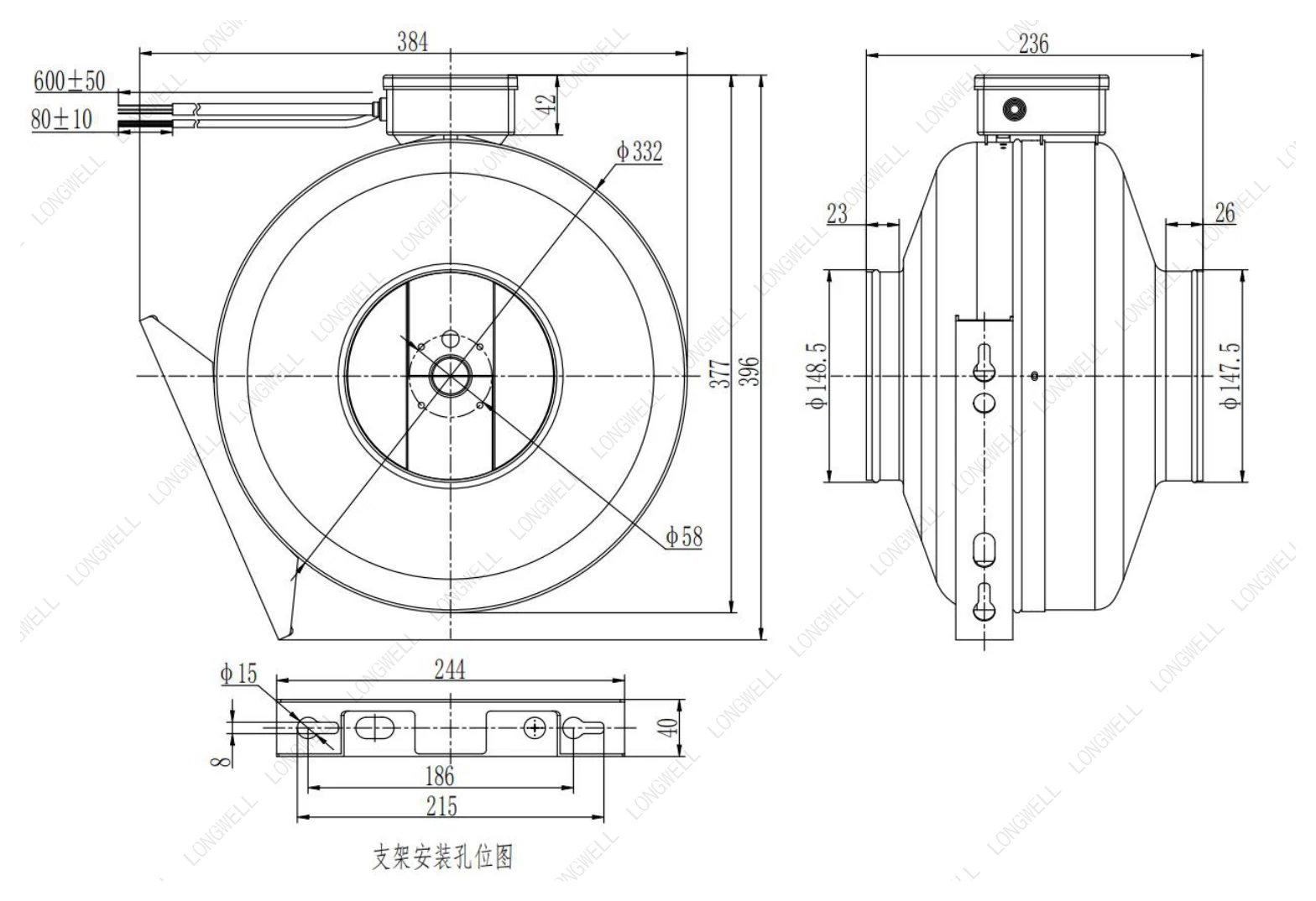

LWDE-150S-MBN-11 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

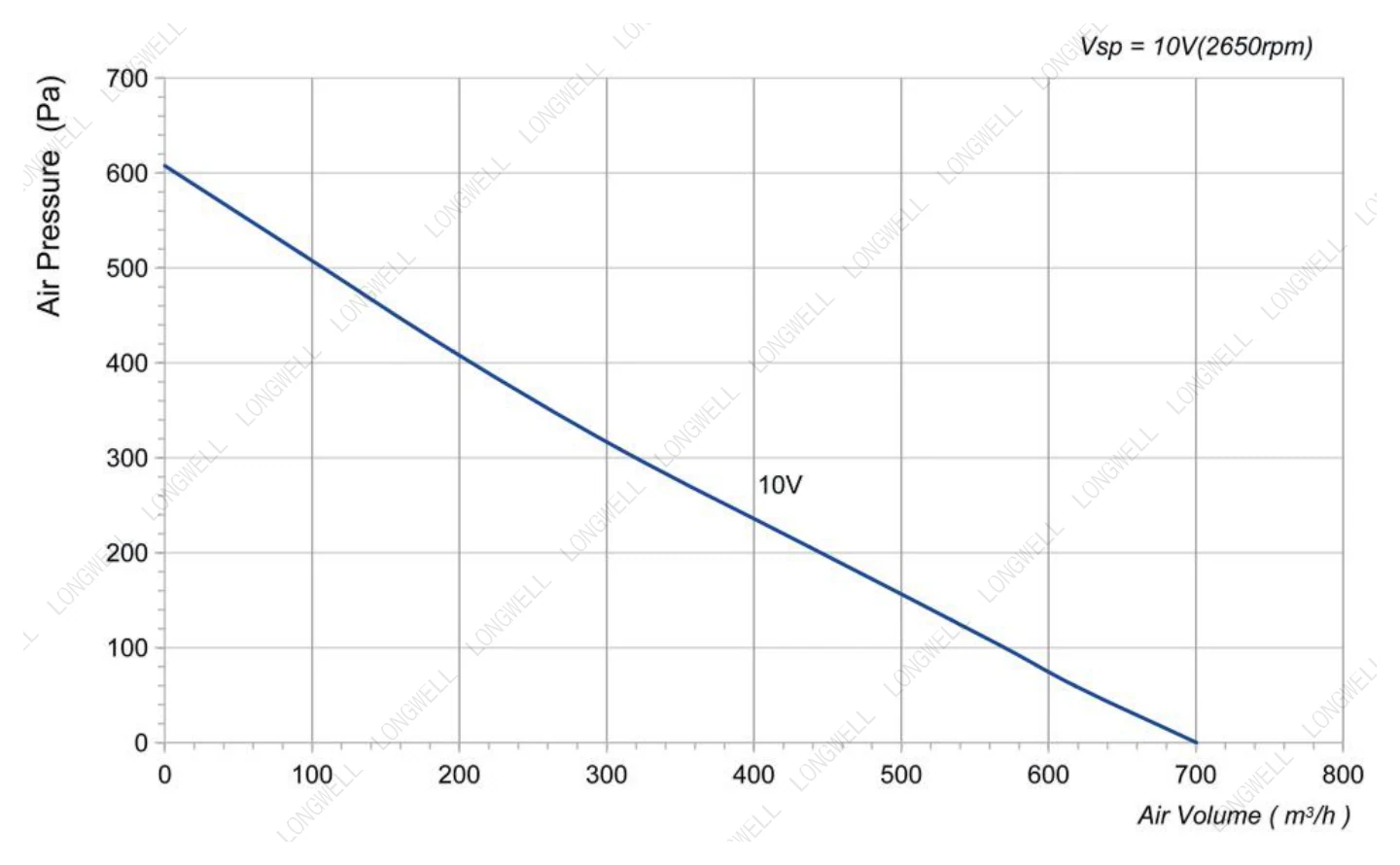

LWDE-150S-MBN-11 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

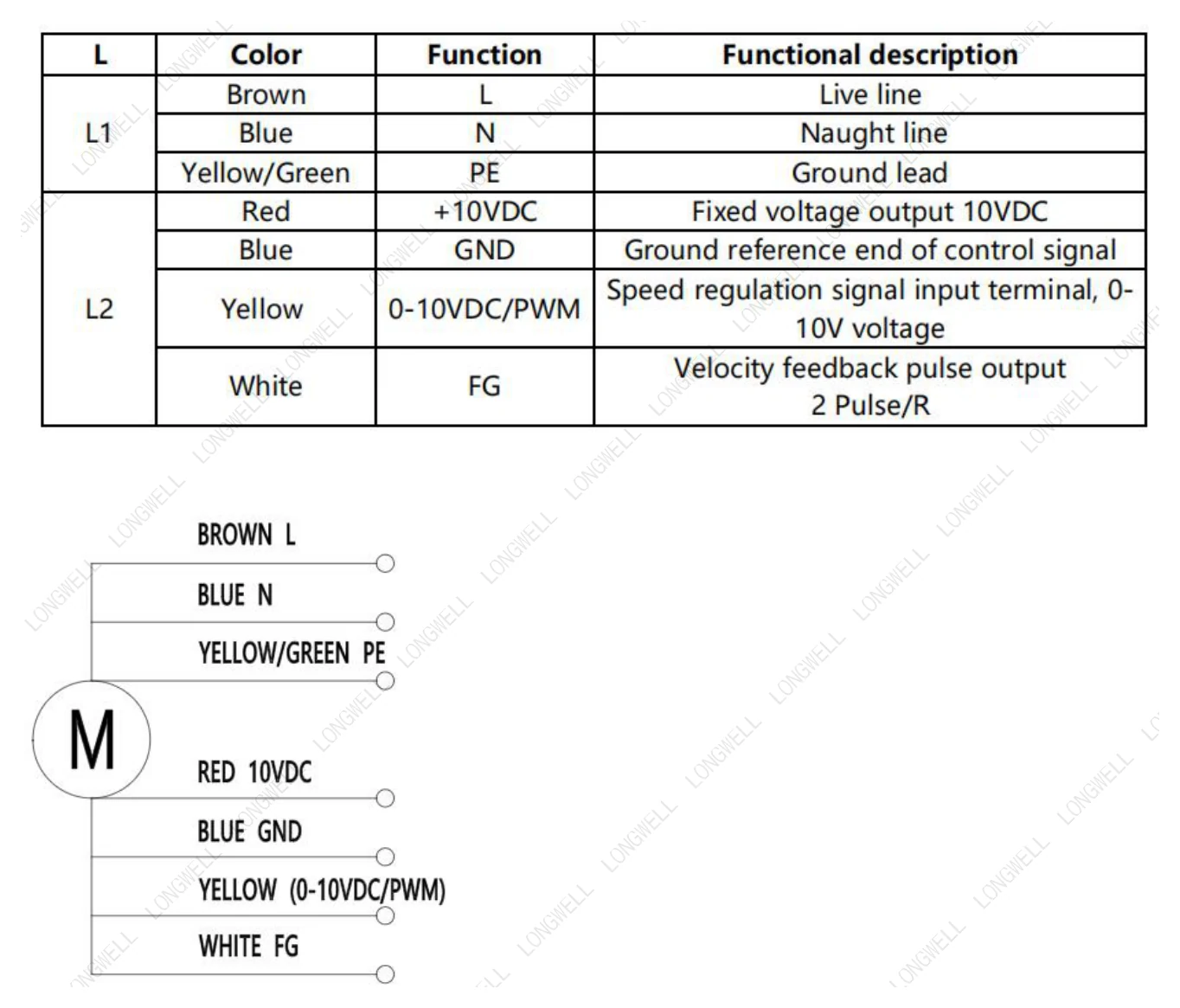

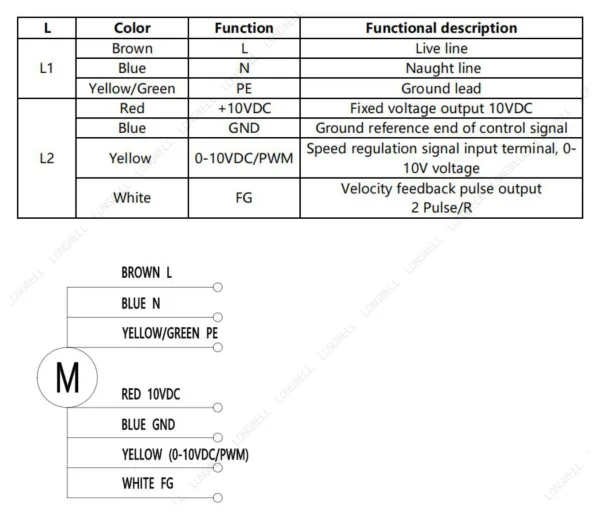

LWDE-150S-MBN-11 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Files for LWDE-150S-MBN-11: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWDE-150S-MBN-11

LWDE-150S-MBN-11 is a LONGWELL EC Metal Inline Duct Fan from the Metal Inline Duct Fans range, impeller Ø150 mm, rated 230 V EC, maximum airflow 700 m³/h, maximum static pressure 608 Pa, noise 66 dB(A), input power 85 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWDE-150S-MBN-11
Series	LWDE150
Motor type	EC
Phase	1-phase
Rated voltage	230 V
Frequency	50 Hz
Current	0.65 A
Input power	85 W
Speed	2,650 rpm
Max. airflow	700 m³/h
Max. static pressure	608 Pa
Noise	66 dB(A)
Storage temperature	-25 ~ 70℃
Humidity	0 ~ 85 % RH
Altitude	< 1000m
Impeller diameter	Ø150 mm
Inlet diameter	150mm
Impeller material	PA66+GF ( Impeller )
Protection class	IP55
Insulation class	B
Balance grade	G6.3
Vibration standard	JB/T 8689
Service life	40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH

Typical applications

Residential and commercial fresh-air systems
Kitchen and bathroom exhaust
Local pressurisation and booster duty
Hotel and office ventilation

Series LWDE150: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
