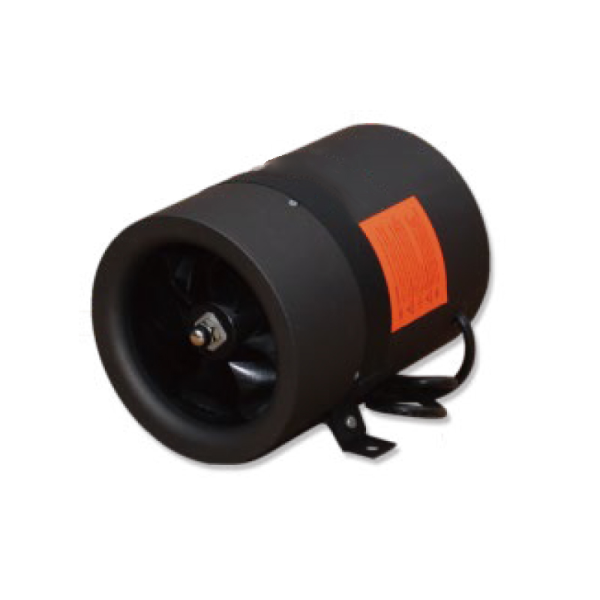

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ150 mm5.9 in
- Max airflow720 m³/h424 CFM
- Voltage220-240 V
- Speed3,400 rpm
- Input power35 W
- Noise58 dB(A)
LWDE-150 (6″)S-MWN-02 EC Mixed Flow Fan Ø150 mm
Ø150 mm | EC | Max airflow 720 m³/h | 58 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Video LWDE-150 (6")S-MWN-02
EC Plastic Duct Fan LWDE-150S Series: Quiet, Efficient & Smart | LWDE-150S-PBY-02 · open in video library

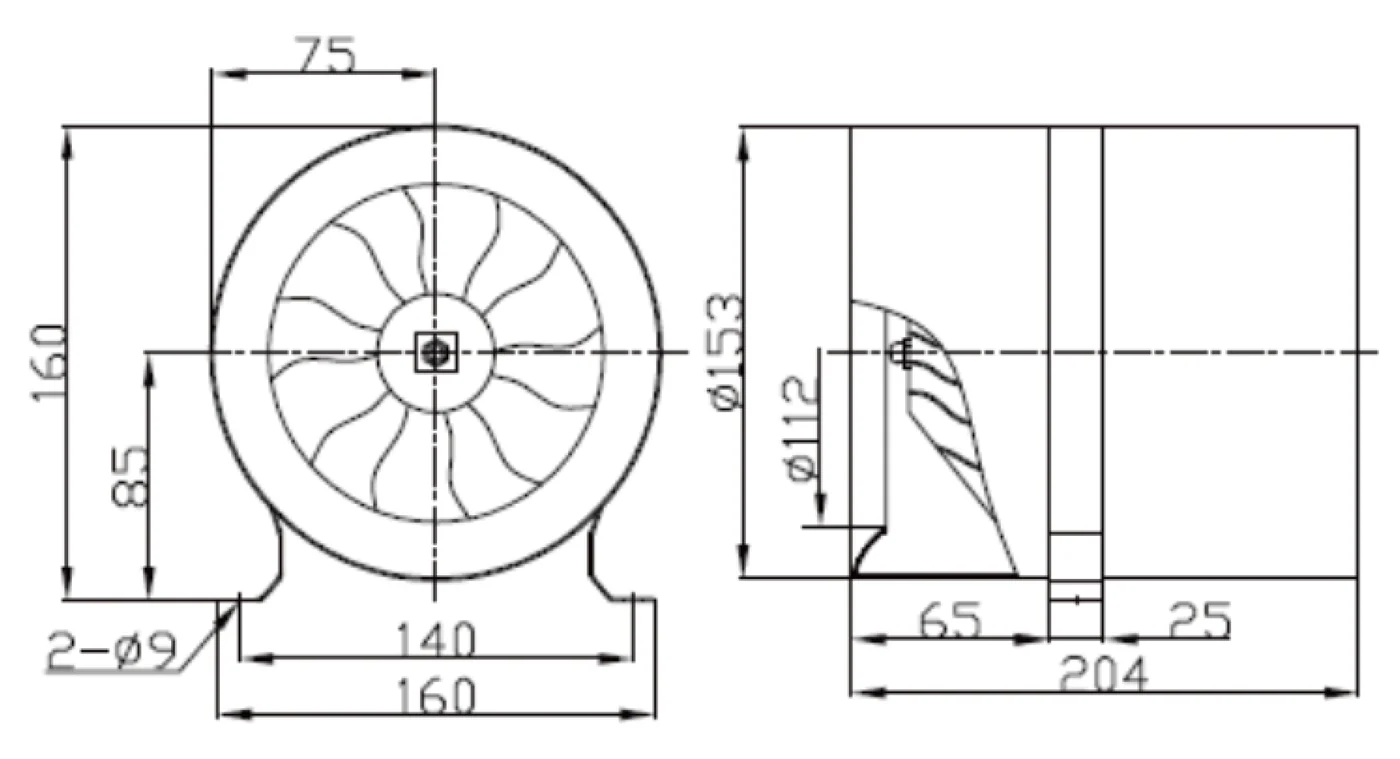

Dimensional drawing LWDE-150 (6")S-MWN-02
Files for LWDE-150 (6")S-MWN-02: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWDE-150 (6")S-MWN-02
LWDE-150 (6")S-MWN-02 is a LONGWELL EC Mixed Flow Fan from the Mixed Flow Fans range, impeller Ø150 mm, rated 220-240 V EC, maximum airflow 720 m³/h, noise 58 dB(A), input power 35 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWDE-150 (6")S-MWN-02 |
|---|---|
| Series | LWDE150 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 220-240 V |
| Frequency | 50 Hz |
| Input power | 35 W |
| Speed | 3,400 rpm |
| Max. airflow | 720 m³/h |
| Noise | 58 dB(A) |
| Impeller diameter | Ø150 mm |
| Inlet diameter | 150mm |
Typical applications
- Residential and commercial fresh-air systems
- Kitchen and bathroom exhaust
- Local pressurisation and booster duty
- Hotel and office ventilation
Series LWDE150: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
