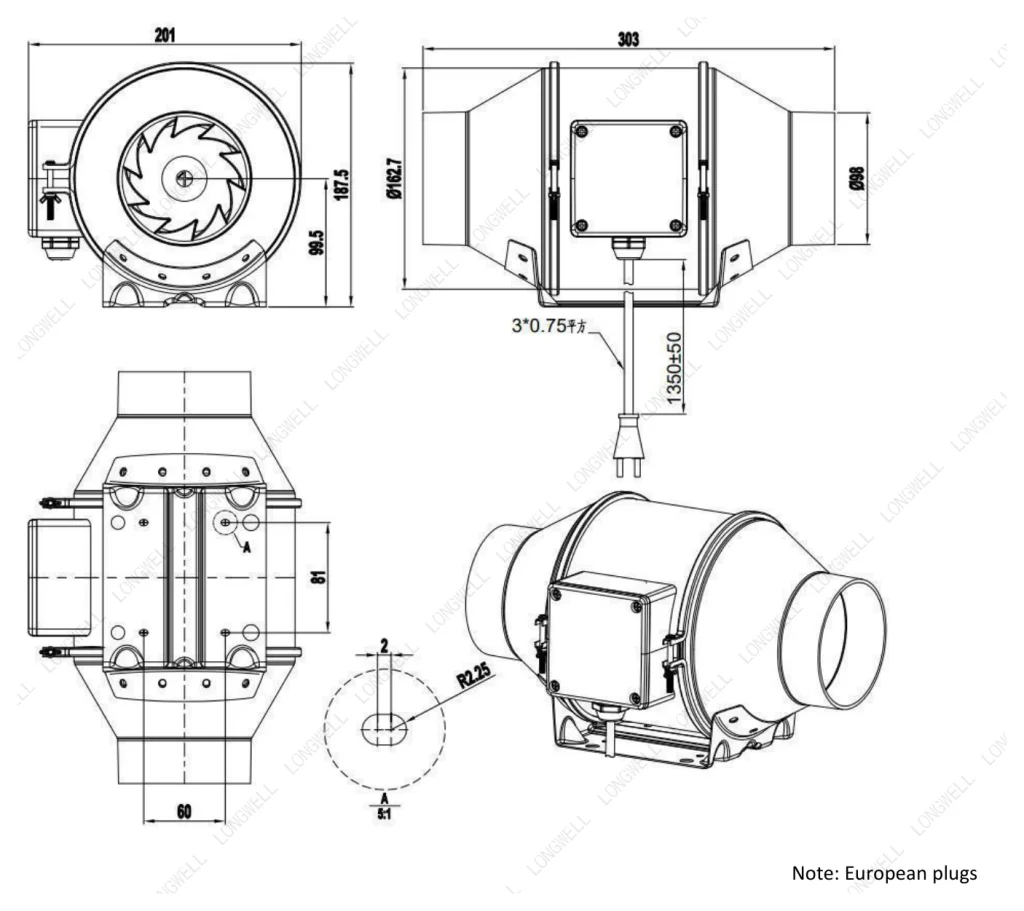

LWDE3G100-IS-01 — construction, airflow path and running condition.
LWDE3G100-IS-01 EC Plastic Inline Duct Fan | Product Overview · open in video library
- ImpellerØ98 mm3.9 in
- Max airflow385 m³/h227 CFM
- Max static pressure269 Pa1.08 in. wg
- Voltage110-240 V
- Speed2,800 rpm
- Input power35 W
- Noise28 dB(A)
LWDE3G100-IS-01 EC Plastic Inline Duct Fan Ø98 mm
Ø98 mm | EC | Max airflow 385 m³/h | Max static pressure 269 Pa | 28 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
Need a non-standard size or another format? Ask an engineer or search the download center.
LWDE3G100-IS-01 is a LONGWELL EC Plastic Inline Duct Fan from the Plastic Inline Duct Fans range, impeller Ø98 mm, rated 110-240 V EC, maximum airflow 385 m³/h, maximum static pressure 269 Pa, noise 28 dB(A), input power 35 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWDE3G100-IS-01 |
|---|---|
| Series | LWDE3G100 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 110-240 V |
| Frequency | 50 Hz |
| Input power | 35 W |
| Speed | 2,800 rpm |
| Max. airflow | 385 m³/h |
| Max. airflow (CFM) | 226 CFM |
| Max. static pressure | 269 Pa |
| Noise | 28 dB(A) |
| Ambient temperature | -10 ~ 60 °C |
| Storage temperature | -40 ~ 75℃ |
| Humidity | 15 ~ 85% RH |
| Altitude | < 1000m |
| Impeller diameter | Ø98 mm |
| Impeller material | PP+GF20% (shell ) , iron (Floor), ABS+FR (impeller), 3 cores * 0.75² (Lead) |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 50,000Hours(L10), At 25 °Croom, humidity 15%~65%RH |
Typical applications
- Residential and commercial fresh-air systems
- Kitchen and bathroom exhaust
- Local pressurisation and booster duty
- Hotel and office ventilation
Series LWDE3G100: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

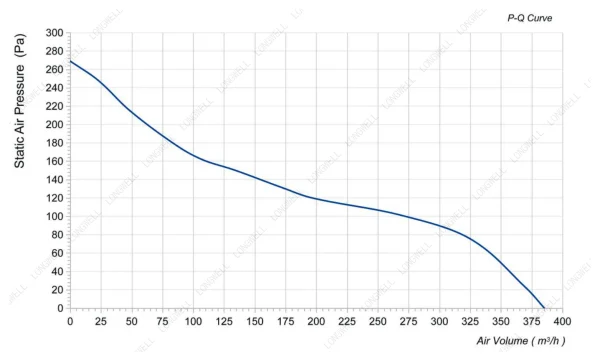

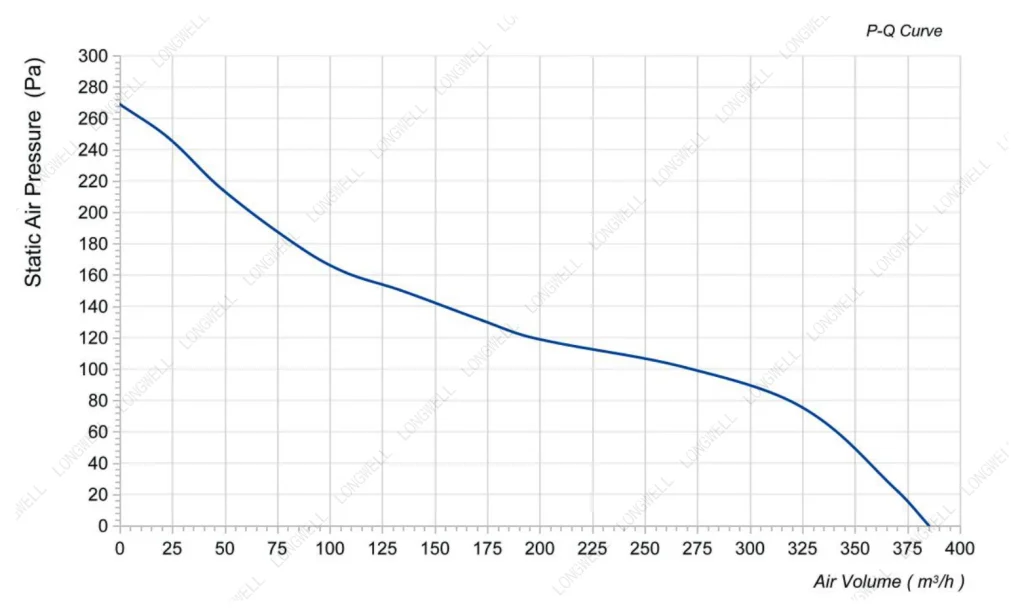

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø98 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWDE3G100-IS-01 this model | 385 m³/h | 269 Pa | 2,800 rpm | 35 W | 28 dB(A) | 110-240 V | |
| LWDE3G100-IS-03 | 385 m³/h | 269 Pa | 2,800 rpm | 35 W | 28 dB(A) | 110-240 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
