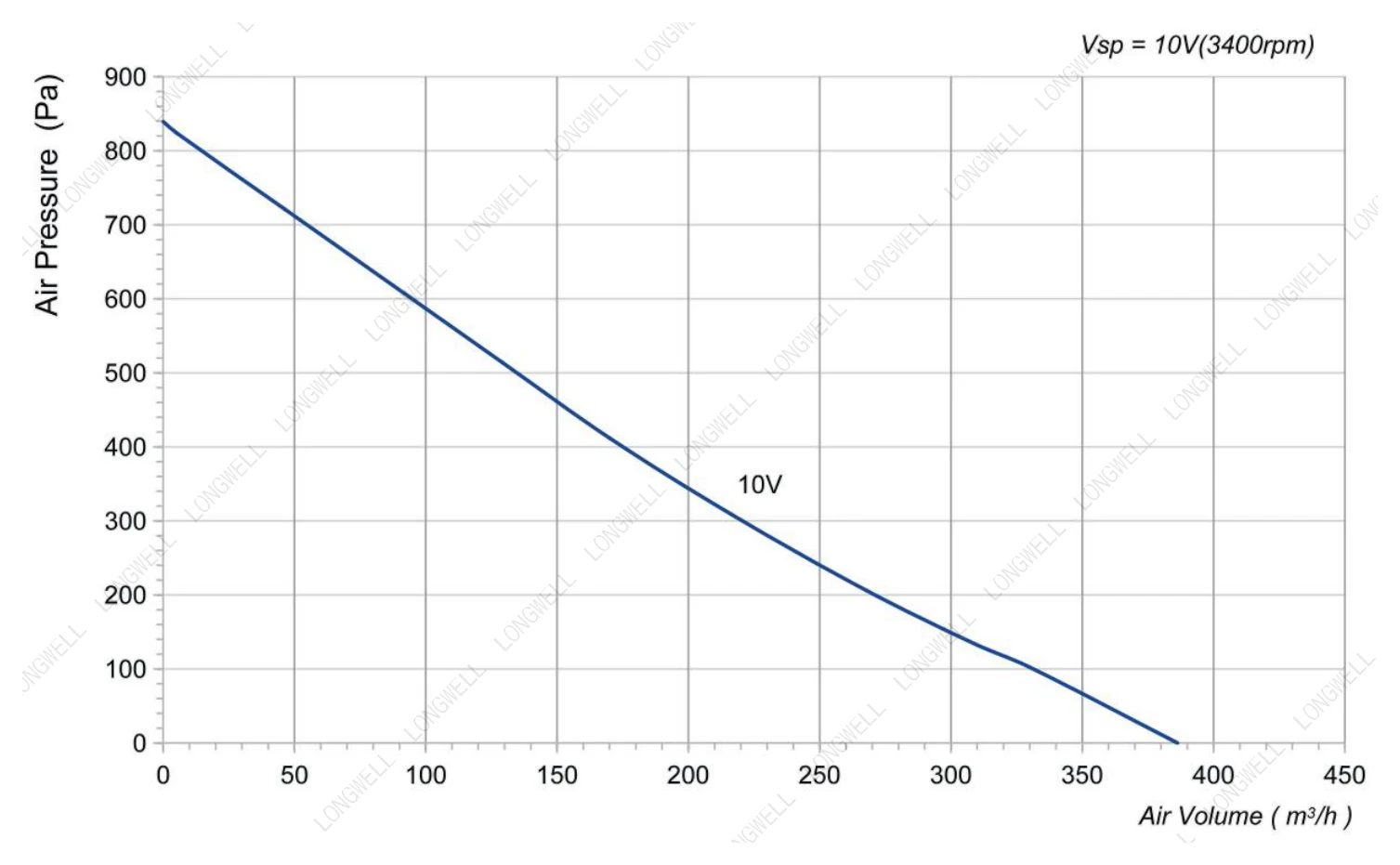

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ125 mm
- Max airflow386 m³/h
- Max static pressure839 Pa
- Voltage230 V
- Speed3,400 rpm
- Input power85 W
- Noise69 dB(A)

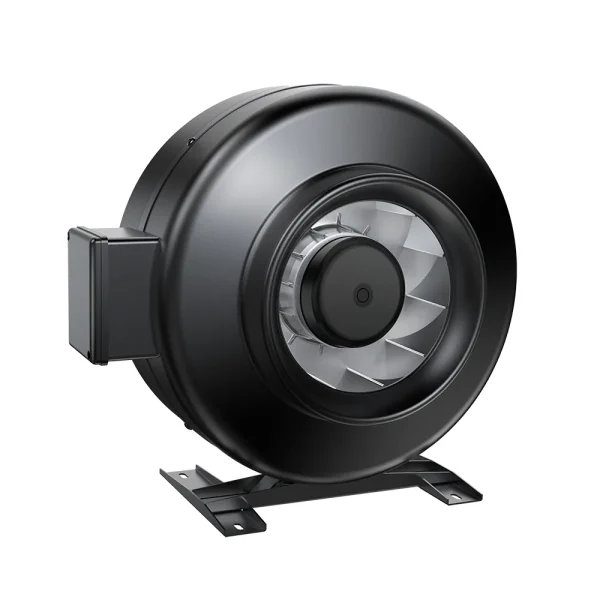

LWDE-125S-MBN-06 EC Metal Inline Duct Fan Ø125 mm
Ø125 mm | EC | Max airflow 386 m³/h | Max static pressure 839 Pa | 69 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Engineering files (on request)

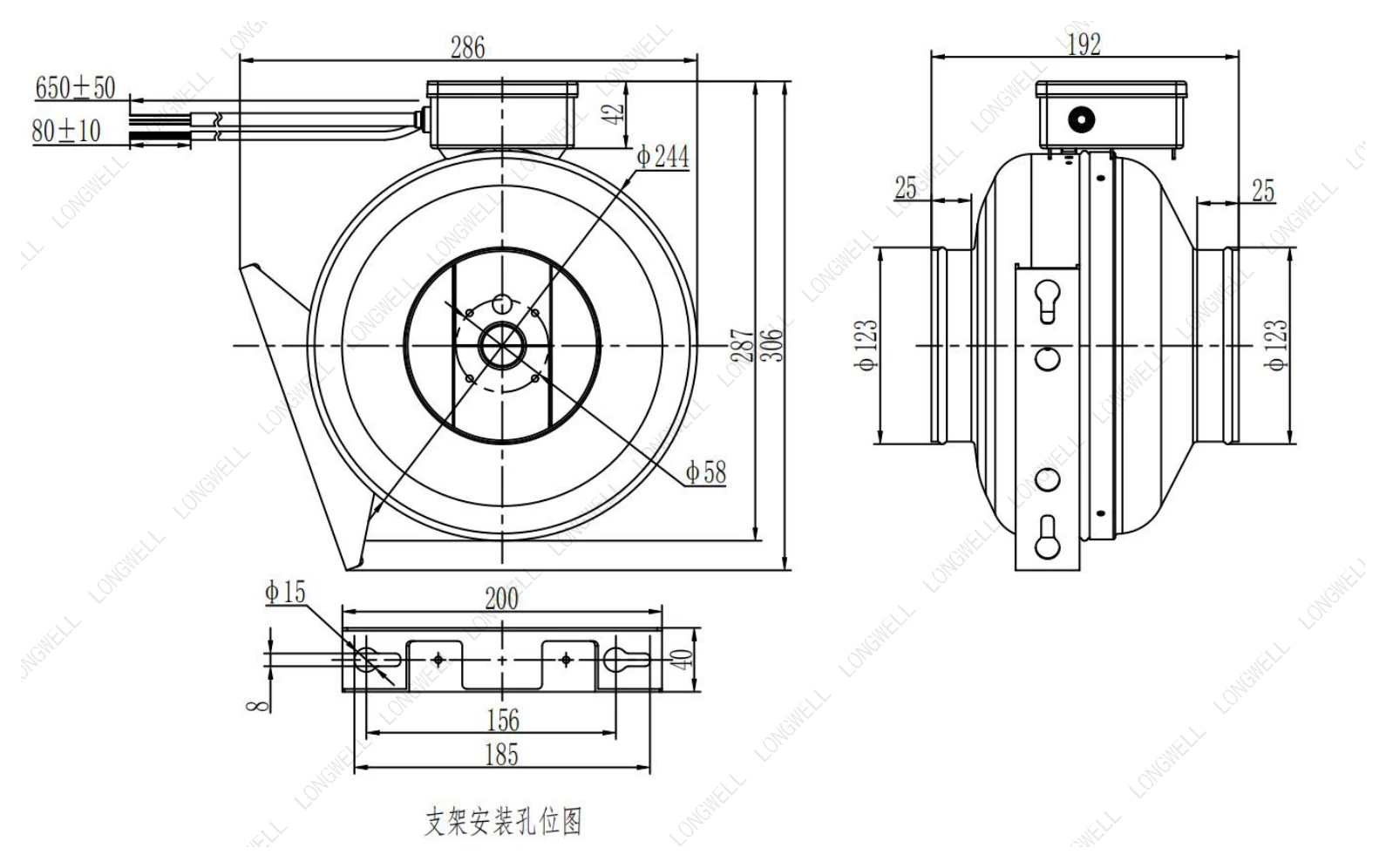

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
Downloads for LWDE-125S-MBN-06
PDFDatasheetNeed a non-standard size or another format? Ask an engineer or search the download center.

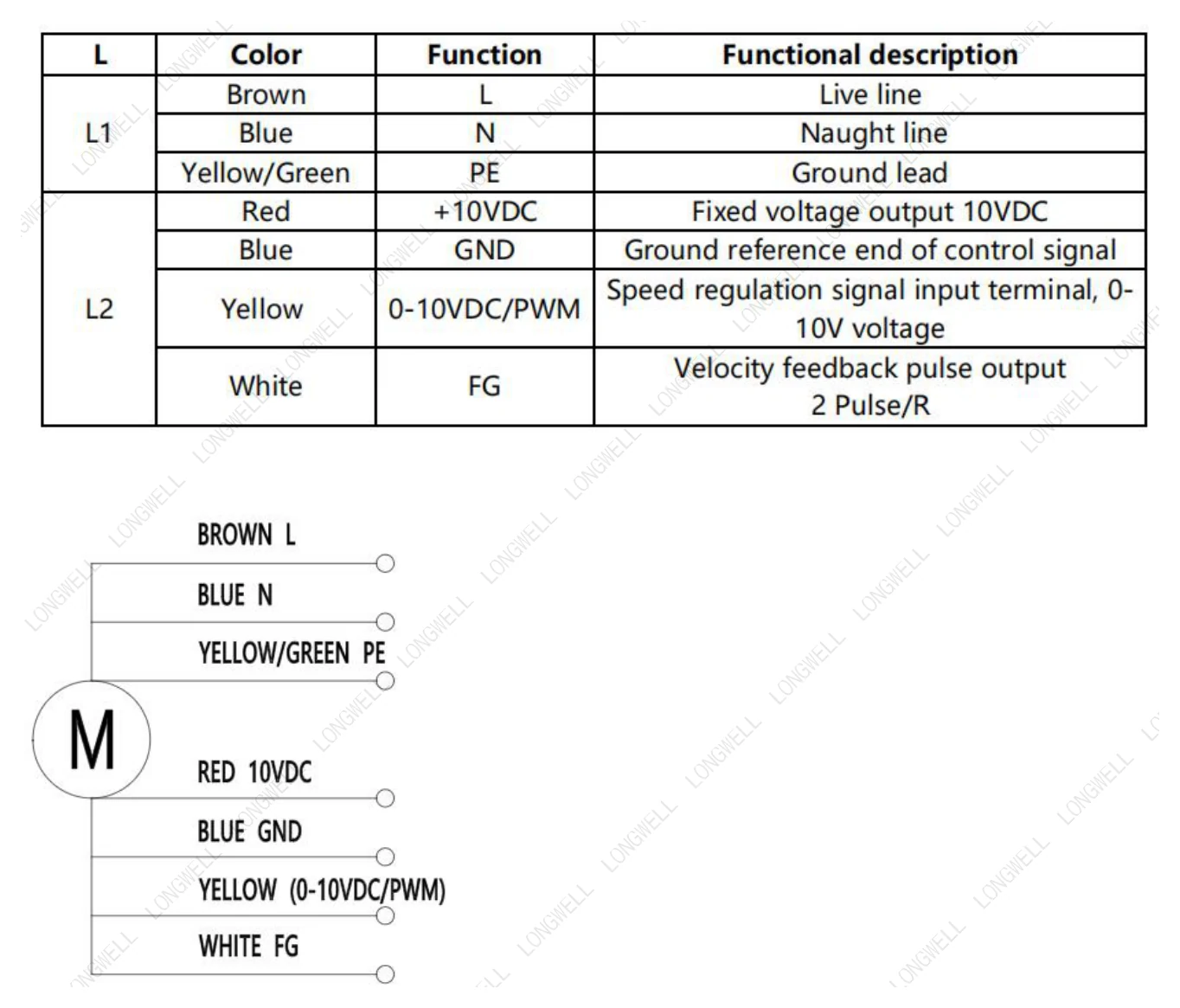

LWDE-125S-MBN-06 is a LONGWELL EC Metal Inline Duct Fan from the Metal Inline Duct Fans range, impeller Ø125 mm, rated 230 V EC, maximum airflow 386 m³/h, maximum static pressure 839 Pa, noise 69 dB(A), input power 85 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWDE-125S-MBN-06 |
|---|---|
| Series | LWDE125 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 0.65 A |
| Input power | 85 W |
| Speed | 3,400 rpm |
| Max. airflow | 386 m³/h |
| Max. static pressure | 839 Pa |
| Noise | 69 dB(A) |
| Storage temperature | -25 ~ 70℃ |
| Humidity | 0 ~ 85 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø125 mm |
| Inlet diameter | 125mm |
| Impeller material | PA66+GF ( Impeller ) |
| Protection class | IP55 |
| Insulation class | B |
| Service life | 40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
Typical applications
- Residential and commercial fresh-air systems
- Kitchen and bathroom exhaust
- Local pressurisation and booster duty
- Hotel and office ventilation
Series LWDE125: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø125 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWDE-125S-MBN-06 this model | 386 m³/h | 839 Pa | 3,400 rpm | 85 W | 69 dB(A) | 230 V | |
| LWDE-125 (5")U-PWN-01 | 410 m³/h | see curve | 3,350 rpm | 35 W | 52 dB(A) | 110-120 V | View |
| LWDE-125 (5")U-MWN-03 | 410 m³/h | see curve | 3,350 rpm | 35 W | 51 dB(A) | 110-120 V | View |
| LWDE-125 (5")S-PWN-02 | 697 m³/h | see curve | 3,350 rpm | 35 W | 52 dB(A) | 220-240 V | View |
| LWDE-125 (5")S-MWN-04 | 697 m³/h | see curve | 3,350 rpm | 35 W | 51 dB(A) | 220-240 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
