ImpellerØ100 mm3.9 in
Max airflow605 m³/h356 CFM
Max static pressure168 Pa0.67 in. wg
Voltage220-240 V
Speed2,900 rpm
Input power41 W
Noise51 dB(A)

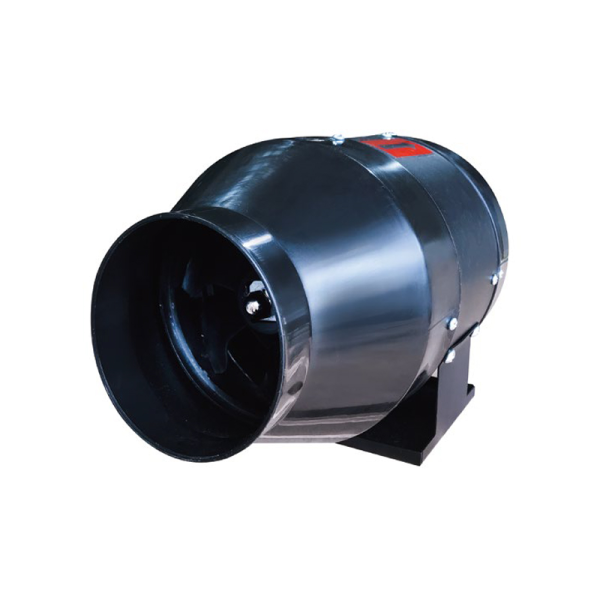

LWDA-100 (4″)S-PWN-02 AC Mixed Flow Fan Ø100 mm

Ø100 mm | AC | Max airflow 605 m³/h | Max static pressure 168 Pa | 51 dB(A)

SKU: LWDA-100 (4")S-PWN-02 Categories: Impeller Ø100–200 mm, Inline Duct Fans, Mixed Flow Fans

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance data

All files for LWDA-100 (4")S-PWN-024 files · direct download

WEBPDimensional drawing WEBPPerformance curve DOCXDatasheet

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Building & agricultural ventilation Vertical farming Roof exhaust Central ventilation units All industries →

Proven in projects

Smart home ERV Range hoods, ovens & fan coils Drying, heat treatment & ovens All case studies →

Get a quote · LWDA-100 (4")S-PWN-02

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWDA-100 (4")S-PWN-02datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Video LWDA-100 (4")S-PWN-02

Powerful & Quiet: The Reliable Choice – Longwell Duct Fan | LWDA-100(4″)S-PWN-14 · open in video library

Longwell AC Plastic Duct Fan, Breathe Fresh Vitality into Your Space | LWDA-100(4)S-PWN-18 · open in video library

Drawing & Curve LWDA-100 (4")S-PWN-02

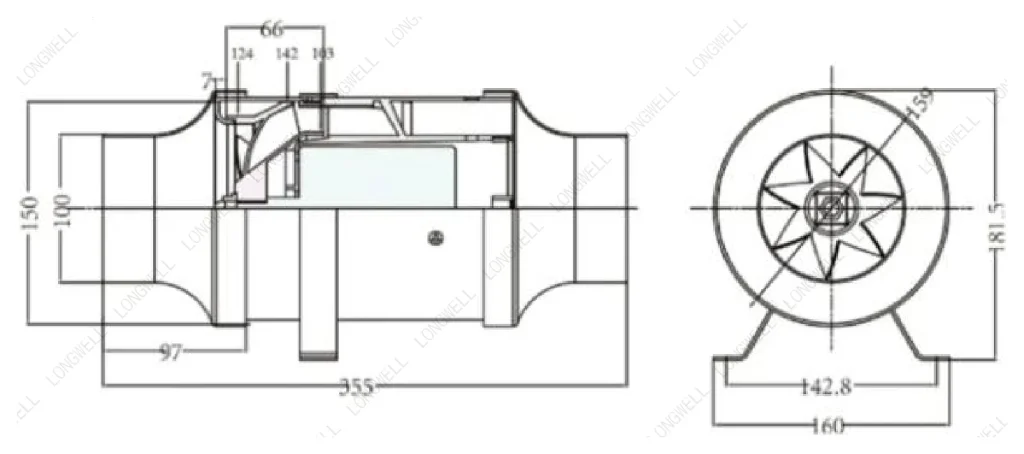

LWDA-100 (4")S-PWN-02 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

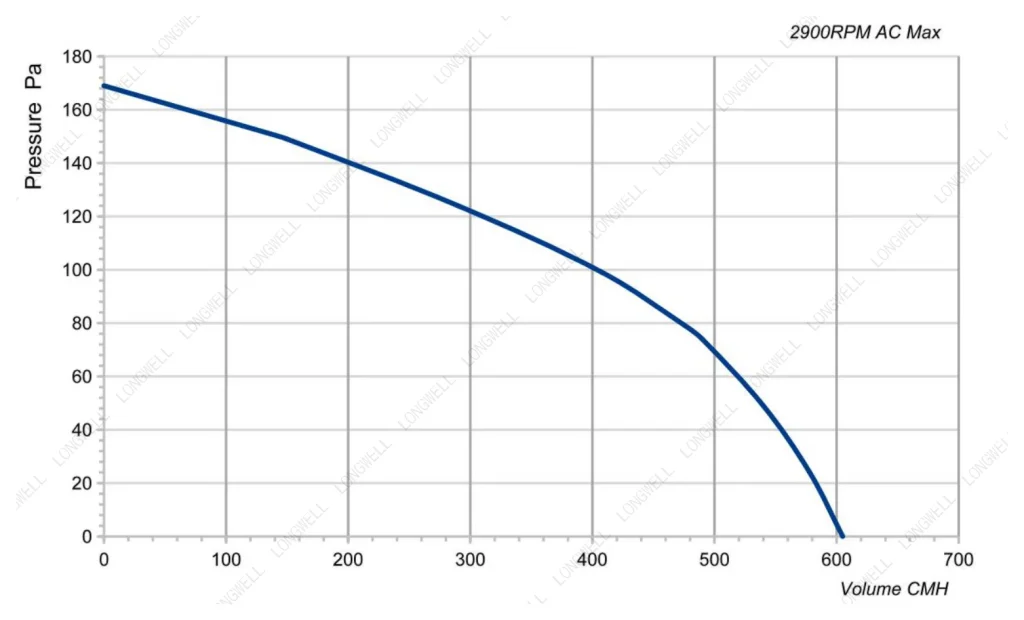

LWDA-100 (4")S-PWN-02 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Files for LWDA-100 (4")S-PWN-02: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWDA-100 (4")S-PWN-02

LWDA-100 (4")S-PWN-02 is a LONGWELL AC Mixed Flow Fan from the Mixed Flow Fans range, impeller Ø100 mm, rated 220-240 V AC, maximum airflow 605 m³/h, maximum static pressure 168 Pa, noise 51 dB(A), input power 41 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWDA-100 (4")S-PWN-02
Series	LWDA100
Motor type	AC
Phase	1-phase
Rated voltage	220-240 V
Frequency	50 Hz
Input power	41 W
Speed	2,900 rpm
Max. airflow	605 m³/h
Max. static pressure	168 Pa
Noise	51 dB(A)
Storage temperature	-25 ~ 60℃
Humidity	15 ~ 85% RH
Altitude	< 1000m
Impeller diameter	Ø100 mm
Inlet diameter	100mm
Balance grade	G6.3
Vibration standard	JB/T 8689
Service life	50,000Hours(L10), At 25 °Croom, humidity 15%~65%RH

Typical applications

Residential and commercial fresh-air systems
Kitchen and bathroom exhaust
Local pressurisation and booster duty
Hotel and office ventilation

Series LWDA100: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
