ImpellerØ198 mm7.8 in
Max airflow1,453 m³/h855 CFM
Voltage110-240 V
Speed3,000 rpm
Input power180 W
Noise51 dB(A)

LWDE3G200-IS-01 EC Plastic Inline Duct Fan Ø198 mm

Ø198 mm | EC | Max airflow 1,453 m³/h | 51 dB(A)

SKU: LWDE3G200-IS-01 Categories: Inline Duct Fans, Plastic Inline Duct Fans

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · ETL · RoHS

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueEC ( ) EC Plastic duct fans(with controller) · SKU on PDF p. 10

All files for LWDE3G200-IS-015 files · direct download

PDFFull product catalogue · model on PDF p. 10 WEBPDimensional drawing WEBPWiring diagram DOCXDatasheet

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Decentralised ventilation Building & agricultural ventilation Vertical farming All industries →

Proven in projects

Smart home ERV Range hoods, ovens & fan coils Drying, heat treatment & ovens All case studies →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWDE3G200-IS-01

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWDE3G200-IS-01datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Video LWDE3G200-IS-01

LONGWELL EC Duct Fan Test | LWDE3G200 · open in video library

Drawing & Wiring LWDE3G200-IS-01

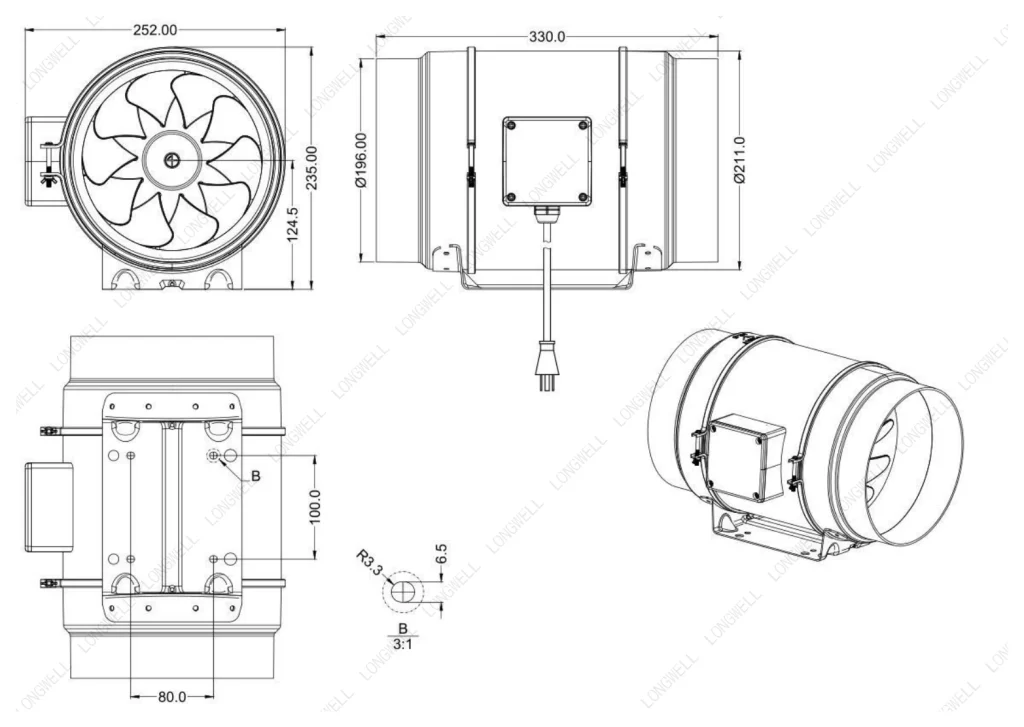

LWDE3G200-IS-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

LWDE3G200-IS-01 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Files for LWDE3G200-IS-01: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWDE3G200-IS-01

LWDE3G200-IS-01 is a LONGWELL EC Plastic Inline Duct Fan from the Plastic Inline Duct Fans range, impeller Ø198 mm, rated 110-240 V EC, maximum airflow 1,453 m³/h, noise 51 dB(A), input power 180 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWDE3G200-IS-01
Series	LWDE3G200
Motor type	EC
Phase	1-phase
Rated voltage	110-240 V
Frequency	50 Hz
Input power	180 W
Speed	3,000 rpm
Max. airflow	1,453 m³/h
Noise	51 dB(A)
Impeller diameter	Ø198 mm
Vibration standard	JB/T 8689

Typical applications

Residential and commercial fresh-air systems
Kitchen and bathroom exhaust
Local pressurisation and booster duty
Hotel and office ventilation

Series LWDE3G200: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
