ImpellerØ198 mm7.8 in
Max airflow1,453 m³/h855 CFM
Max static pressure721 Pa2.89 in. wg
Voltage110-240 V
Speed3,000 rpm
Input power180 W
Noise51 dB(A)

LWDE3G200-IS-03 EC Plastic Inline Duct Fan Ø198 mm

Ø198 mm | EC | Max airflow 1,453 m³/h | Max static pressure 721 Pa | 51 dB(A)

SKU: LWDE3G200-IS-03 Categories: Inline Duct Fans, Plastic Inline Duct Fans

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWDE3G200-IS-03

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for LWDE3G200-IS-03drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

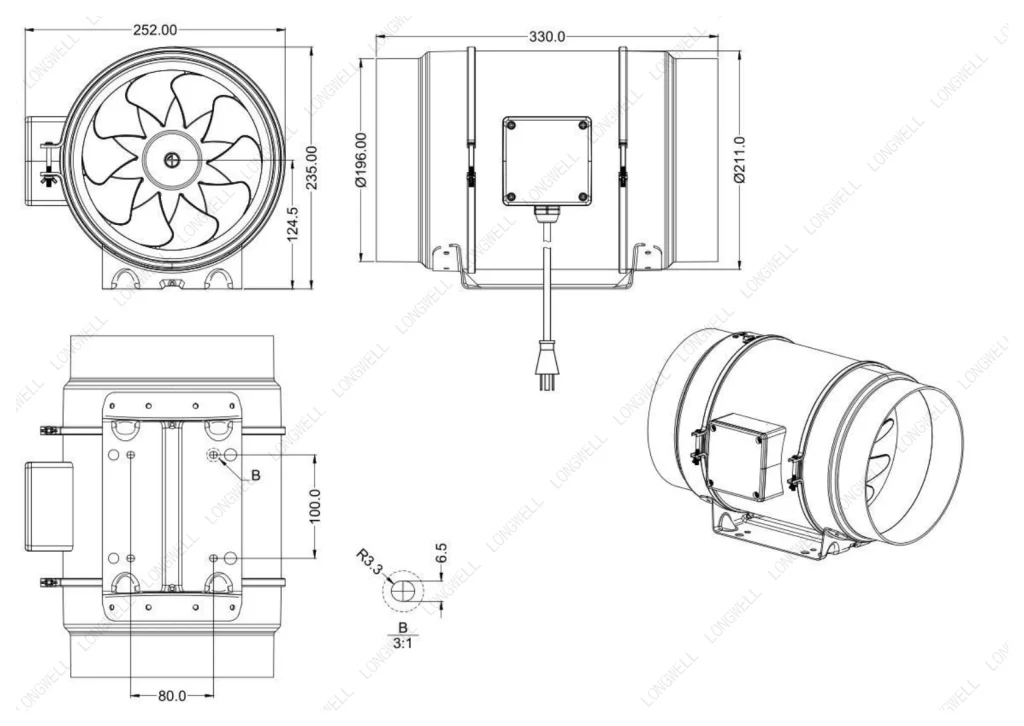

LWDE3G200-IS-03 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

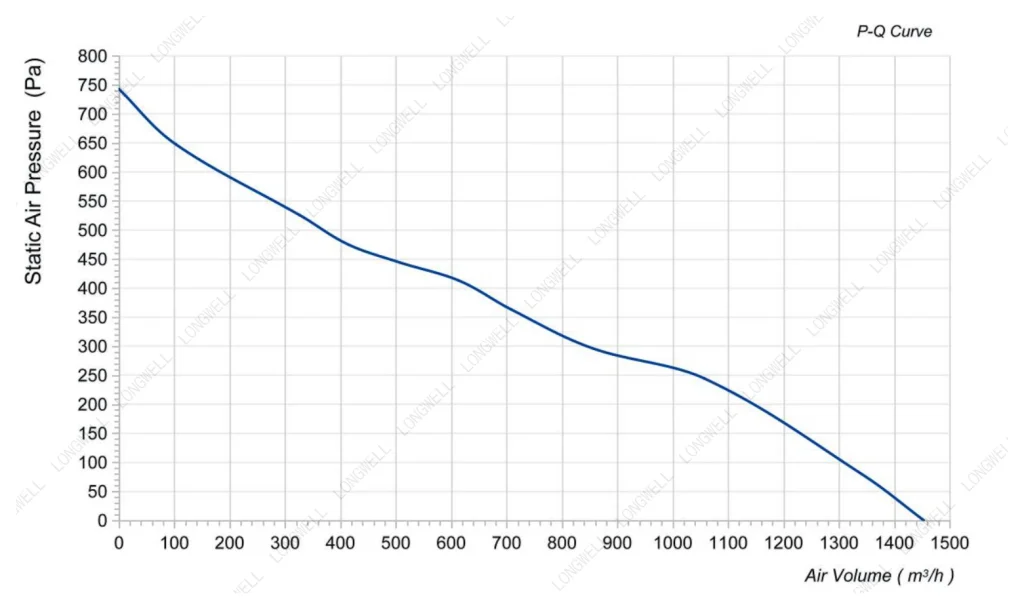

LWDE3G200-IS-03 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Downloads for LWDE3G200-IS-03

PDFDatasheet DOCXDatasheet · 969 KB

Need a non-standard size or another format? Ask an engineer or search the download center.

LWDE3G200-IS-03 is a LONGWELL EC Plastic Inline Duct Fan from the Plastic Inline Duct Fans range, impeller Ø198 mm, rated 110-240 V EC, maximum airflow 1,453 m³/h, maximum static pressure 721 Pa, noise 51 dB(A), input power 180 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWDE3G200-IS-03
Series	LWDE3G200
Motor type	EC
Phase	1-phase
Rated voltage	110-240 V
Frequency	50 Hz
Input power	180 W
Speed	3,000 rpm
Max. airflow	1,453 m³/h
Max. airflow (CFM)	855 CFM
Max. static pressure	721 Pa
Noise	51 dB(A)
Ambient temperature	-10 ~ 60 °C
Storage temperature	-40 ~ 75℃
Humidity	15 ~ 85% RH
Altitude	< 1000m
Impeller diameter	Ø198 mm
Impeller material	PP+GF30% (shell ) , iron (Floor), ABS (impeller), 3 cores * 0.75² (Lead)
Bearing	Maintenance-free deep groove ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T 8689
Service life	50,000Hours(L10), At 25 °Croom, humidity 15%~65%RH

Typical applications

Residential and commercial fresh-air systems
Kitchen and bathroom exhaust
Local pressurisation and booster duty
Hotel and office ventilation

Series LWDE3G200: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø198 mm · EC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWDE3G200-IS-03 this model	1,453 m³/h	721 Pa	3,000 rpm	180 W	51 dB(A)	110-240 V
LWDE3G200-IS-01	1,453 m³/h	see curve	3,000 rpm	180 W	51 dB(A)	110-240 V	View
