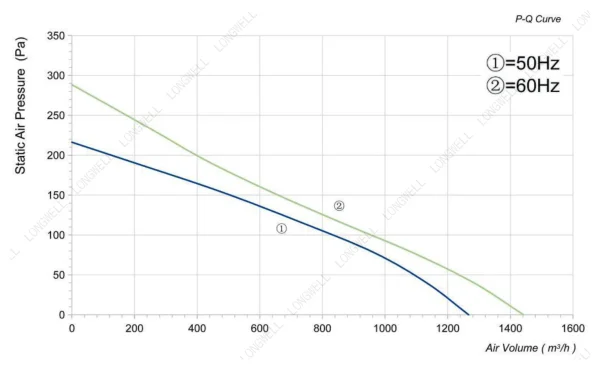

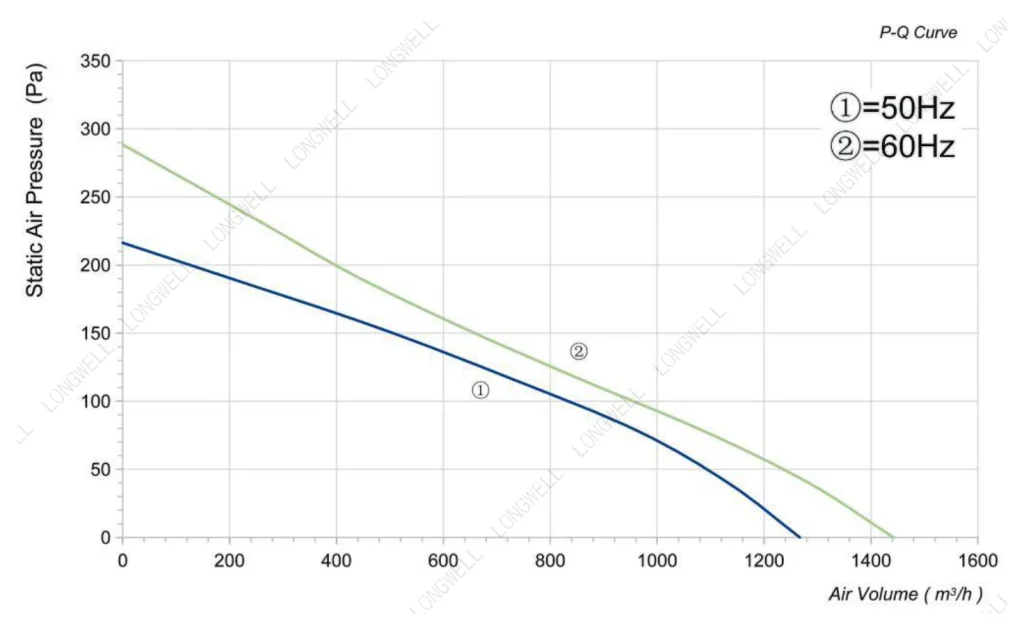

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ280 mm11.0 in
- Max airflow1,442 m³/h754 CFM
- Max static pressure288 Pa1.16 in. wg
- Voltage230 V
- Speed1,500 rpm
- Input power100 W
- Noise66 dB(A)

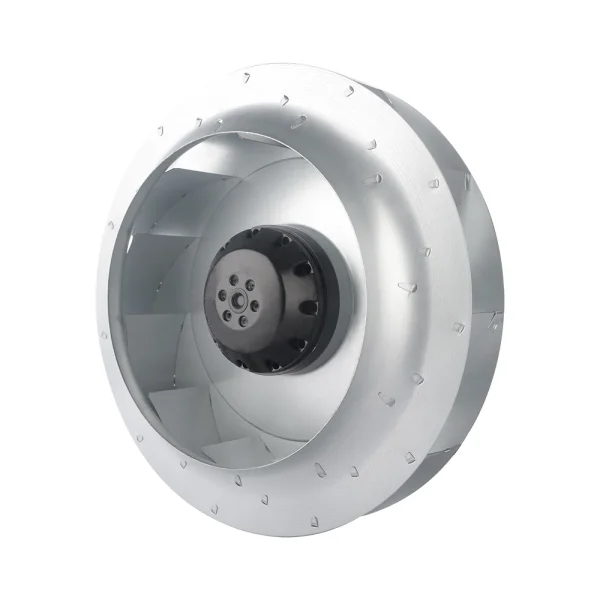

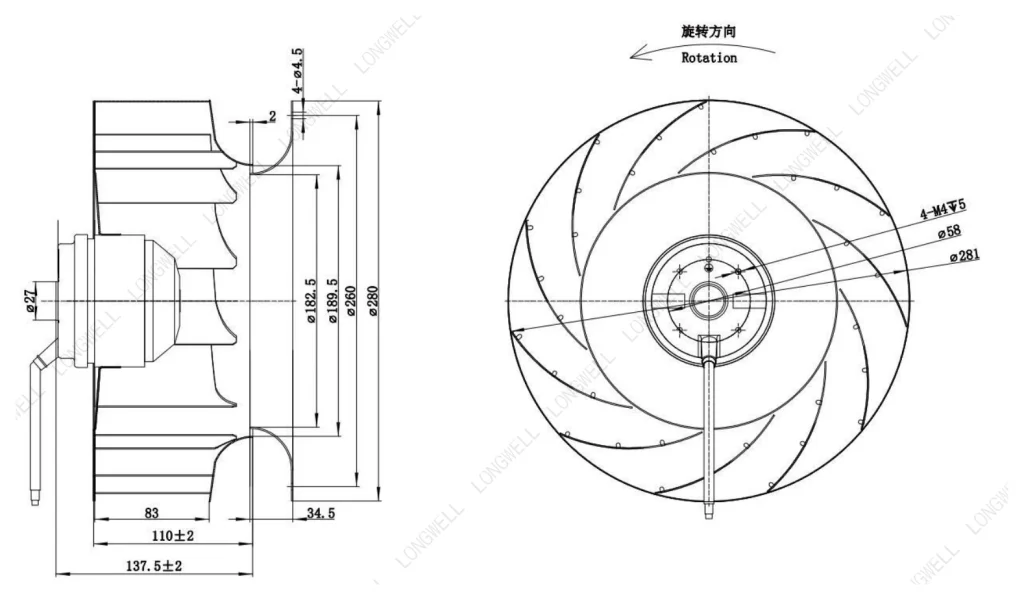

LWBA4E280-092NS-04 AC Backward Curved Centrifugal Fan Ø280 mm
Ø280 mm | AC | Max airflow 1,442 m³/h | Max static pressure 288 Pa | 66 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · RoHS · ETL on request
Downloads for LWBA4E280-092NS-04
PDFDatasheetNeed a non-standard size or another format? Ask an engineer or search the download center.
LWBA4E280-092NS-04 is a LONGWELL AC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø280 mm, rated 230 V AC, maximum airflow 1,442 m³/h, maximum static pressure 288 Pa, noise 66 dB(A), input power 100 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

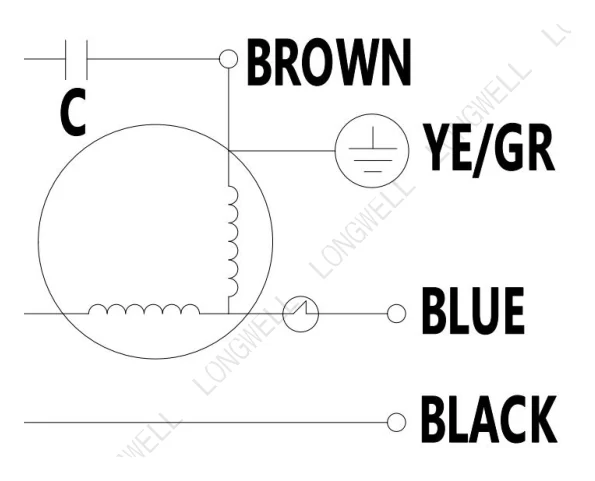

Technical data
| Model | LWBA4E280-092NS-04 |
|---|---|
| Series | LWBA4E280 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 60 Hz |
| Current | 0.45 A |
| Input power | 100 W |
| Speed | 1,500 rpm |
| Max. airflow | 1,442 m³/h |
| Max. airflow (CFM) | 754 CFM |
| Max. static pressure | 288 Pa |
| Noise | 66 dB(A) |
| Ambient temperature | -40 ~ 69 °C |
| Storage temperature | -25 ~ 70℃ |
| Humidity | 0 ~ 85 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø280 mm |
| Rotor diameter | 92 |
| Impeller material | Aluminum Alloy ( Impeller ) |
| Protection class | IP44 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBA4E280: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
