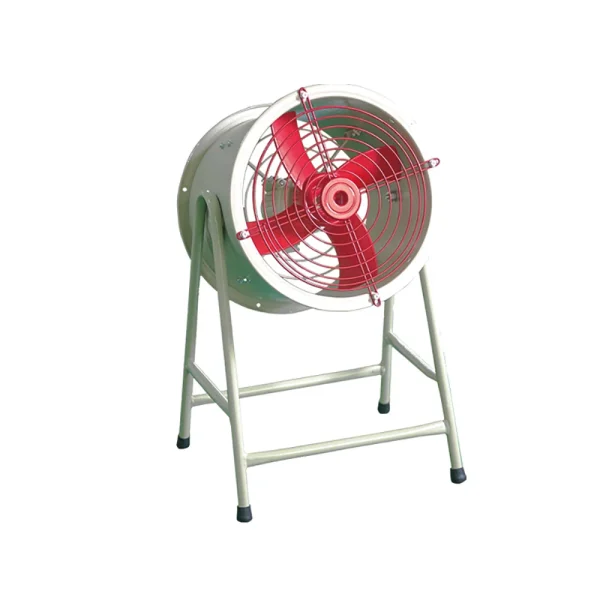

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ1000 mm39.4 in
- Max airflow48,326 m³/h28,444 CFM
- Max static pressure321 Pa1.29 in. wg
- Voltage380 V
- Speed960 rpm
- Input power4,000 W5.36 hp
LWEA1000TM-171E Industrial Axial Fan Ø1000 mm
Ø1000 mm | AC | Max airflow 48,326 m³/h | Max static pressure 321 Pa
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Catalogue table LWEA1000TM-171E
Files for LWEA1000TM-171E: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWEA1000TM-171E
LWEA1000TM-171E is a LONGWELL Industrial Axial Fan from the Industrial Axial Fans range, impeller Ø1000 mm, rated 380 V AC, maximum airflow 48,326 m³/h, maximum static pressure 321 Pa, input power 4,000 W.
Technical data
| Model | LWEA1000TM-171E |
|---|---|
| Series | LWEA1000 |
| Motor type | AC |
| Phase | 3-phase |
| Rated voltage | 380 V |
| Input power | 4,000 W |
| Speed | 960 rpm |
| Max. airflow | 48,326 m³/h |
| Max. static pressure | 321 Pa |
| Impeller diameter | Ø1000 mm |
| Blade diameter | 1000mm |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWEA1000: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Company certificates
Scans of original documents held by Ningbo Longwell Electric Technology Co., Ltd.: the company ISO 9001 / 14001 / 45001 management-system certificate. Click a scan to open the original.
ISO 9001 / 14001 / 45001Management systems of Ningbo Longwell Electric Technology Co., Ltd. (company certificate).
PDFISO 9001 / 14001 / 45001 management system certificateNeed a Declaration of Conformity for this model and your destination market? Ask us — we arrange additional certification on request.
How to order LWEA1000TM-171E
Most first orders follow the same eight steps. Quantities, terms and lead times are confirmed in your quotation.
- 1SelectFind models by duty point in the selector or by model number, compare on the curve and add them to your RFQ list.
- 2Engineering checkWithin 1 business day you receive the duty-point check on the curve, price and lead time.
- 3SamplesStock models ship in 1–3 days.
- 4Validation supportDatasheets, drawings, wiring diagrams and DoC per model; test reports, CAD and register maps after a short project check or NDA.
- 5Order & paymentProforma invoice; first orders on T/T 30 / 70.
- 6Production & release15–30 days at the partner factory that builds your model, then inspected and released to LONGWELL standards with outgoing sampling to AQL 2.5.
- 7ShippingFOB / CIF / DDP by sea from Ningbo or Shanghai; express and air on EXW / FCA / DAP.
- 8After-sales12 months standard, extendable to 18–24 months by project agreement; test records retained for 5 years; 8D closed-loop for any issue; annual technical review for framework customers.
Test & release at LONGWELL
Specified and drawn by LONGWELL; built to LONGWELL drawings by qualified partner factories; inspected and released to LONGWELL standards before shipment.
See test and release photos (8)
Adjacent sizesOne size up when airflow is short, one size down when it is too much
LWAA6D910S-5MEB-03Ø910 mm · 26,780 m³/h · ACadjacent size
LWAE3G900TS-5MGW-01Ø900 mm · 32,313 m³/h · 365 Pa · ECadjacent size
LWAE3G900TS-5PKW-02Ø900 mm · 32,192 m³/h · 244 Pa · ECadjacent size
LWA-900(36")U(S)M-01Ø900 mm · 290 m³/h · ACadjacent size
LWAA6D900S-5MKB-01Ø900 mm · 31,106 m³/h · ACadjacent size
LWEA800TM-169EØ800 mm · 37,370 m³/h · 474 Pa · ACadjacent sizeAlternatives at a similar dutySimilar airflow, different construction or motor platform
