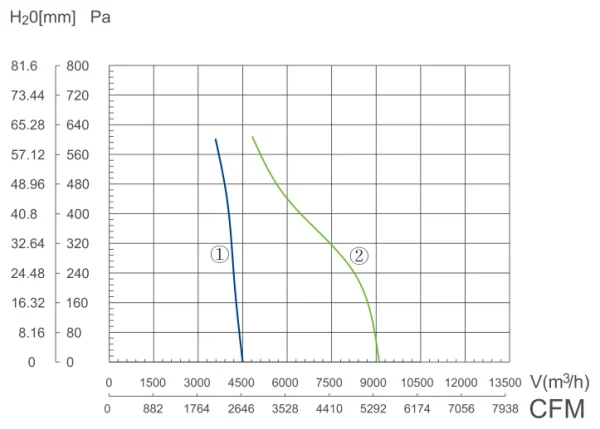

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ350 mm
- Max airflow2,950 m³/h
- Max static pressure370 Pa
- Noise65 dB(A)
LWFA-E-350-01 LWFA Series Direct Drive Centrifugal Blower Ø350 mm
Ø350 mm | AC | Max airflow 2,950 m³/h | Max static pressure 370 Pa | 65 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Downloads for LWFA-E-350-01

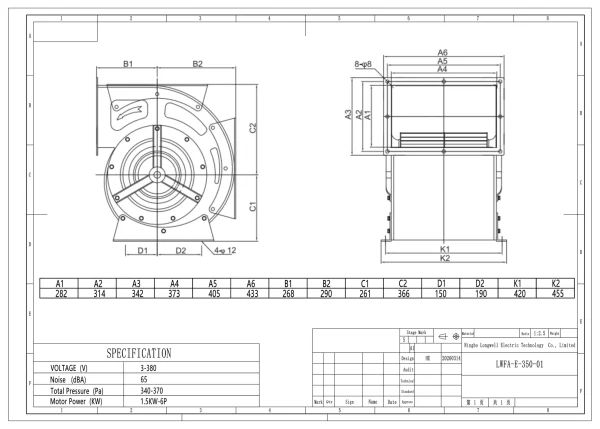

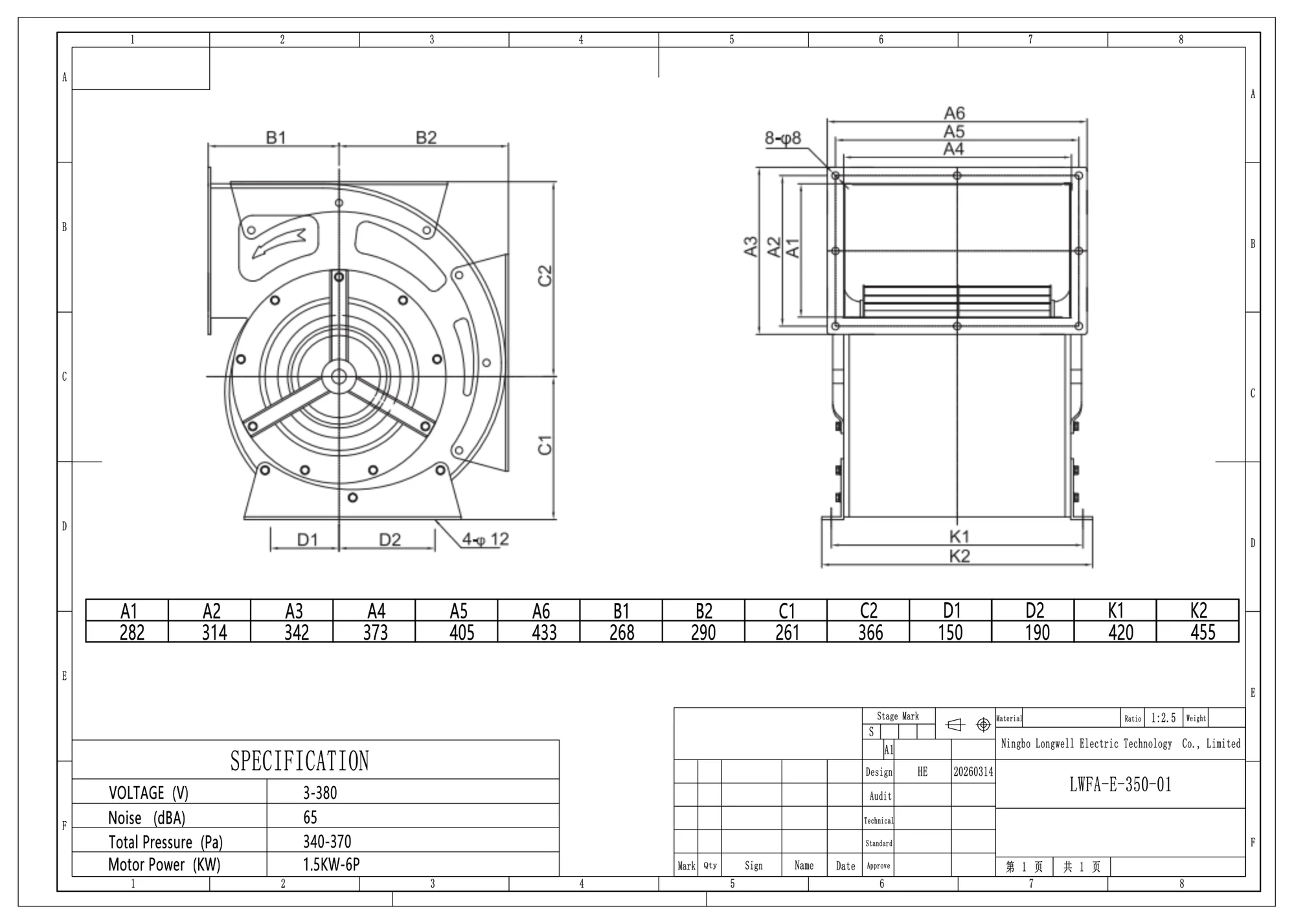

PDFDrawing · 670 KBNeed a non-standard size or another format? Ask an engineer or search the download center.
LWFA-E-350-01 is a LONGWELL LWFA Series Direct Drive Centrifugal Blower from the Impeller Ø280–500 mm range, impeller Ø350 mm, maximum airflow 2,950 m³/h, maximum static pressure 370 Pa, noise 65 dB(A). The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWFA-E-350-01 |
|---|---|
| Motor type | AC |
| Max. airflow | 2,950 m³/h |
| Max. static pressure | 370 Pa |
| Noise | 65 dB(A) |
| Impeller diameter | Ø350 mm |
| Blade diameter | 350mm |
Typical applications
- Commercial kitchen extraction
- Ventilation units and AHUs
- Process and fume extraction
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø350 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWFA-E-350-01 this model | 2,950 m³/h | 370 Pa | — | — | 65 dB(A) | — | |
| LWA-350(14")U(S)M-01 | 60 m³/h | see curve | 1,350 rpm | 140 W | — | 110-120 V | View |
| LWA-350(14")U(S)M-02 | 65 m³/h | see curve | 1,350 rpm | 160 W | — | 110-120 V | View |
| LWA-350(14")U(S)M-03 | 98 m³/h | see curve | 2,800 rpm | 550 W | — | 110-120 V | View |
| LWAA6E350S-5MEB-05 | 1,607 m³/h | see curve | 950 rpm | 75 W | 53 dB(A) | 220/230 V | View |
| LWAA6D350S-5MEB-07 | 1,607 m³/h | see curve | 920 rpm | 70 W | 53 dB(A) | 380 V | View |
| LWAA6E350S-5MEB-06 | 1,854 m³/h | see curve | 1,100 rpm | 83 W | 54 dB(A) | 220/230 V | View |
| LWAA6D350S-5MEB-08 | 1,854 m³/h | see curve | 1,050 rpm | 80 W | 54 dB(A) | 380 V | View |
| LWDA-350 (14")U-MWN-01 | 2,130 m³/h | see curve | 1,720 rpm | 260 W | 74 dB(A) | 110-120 V | View |
| LWAA4E350S-5MEB-17 | 2,493 m³/h | see curve | 1,380 rpm | 150 W | — | 220 V | View |
| LWAA4D350S-5MEW-18 | 2,575 m³/h | see curve | 1,400 rpm | 150 W | — | 380 V | View |
| LWAA4E350S-5MKB-16 | 3,760 m³/h | see curve | 1,500 rpm | 200 W | 58 dB(A) | 380 V | View |
| LWAA4E350S-5MKB-14 | 3,760 m³/h | see curve | 1,500 rpm | 200 W | 58 dB(A) | 220/230 V | View |
| LWA-350(14")U(S)M-04 | 5,500 m³/h | 250 Pa | 2,800 rpm | 750 W | — | 110-120 V | View |
| LWDA-350 (14")S-MWN-02 | 6,450 m³/h | see curve | 2,900 rpm | 903 W | 79 dB(A) | 220-240 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
