Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ305 mm
- Max airflow4,362 m³/h
- Max static pressure491 Pa
- Voltage220 V
- Speed1,100 rpm

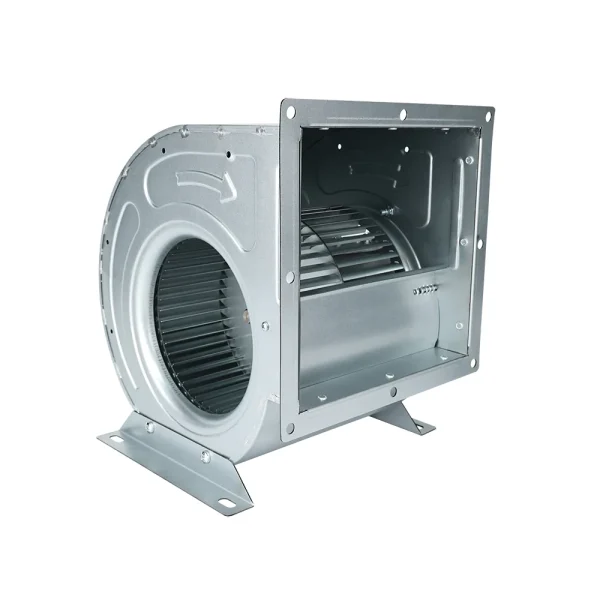

LWDD12-9-EC DD Series EC Direct Drive Centrifugal Blower Ø305 mm
Ø305 mm | EC | Max airflow 4,362 m³/h | Max static pressure 491 Pa
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Need a non-standard size or another format? Ask an engineer or search the download center.
LWDD12-9-EC is a LONGWELL DD Series EC Direct Drive Centrifugal Blower from the Impeller Ø280–500 mm range, impeller Ø305 mm, rated 220 V EC, maximum airflow 4,362 m³/h, maximum static pressure 491 Pa. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWDD12-9-EC |
|---|---|
| Series | LWDD12 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 220 V |
| Frequency | 50 Hz |
| Speed | 1,100 rpm |
| Max. airflow | 4,362 m³/h |
| Max. static pressure | 491 Pa |
| Impeller diameter | Ø305 mm |

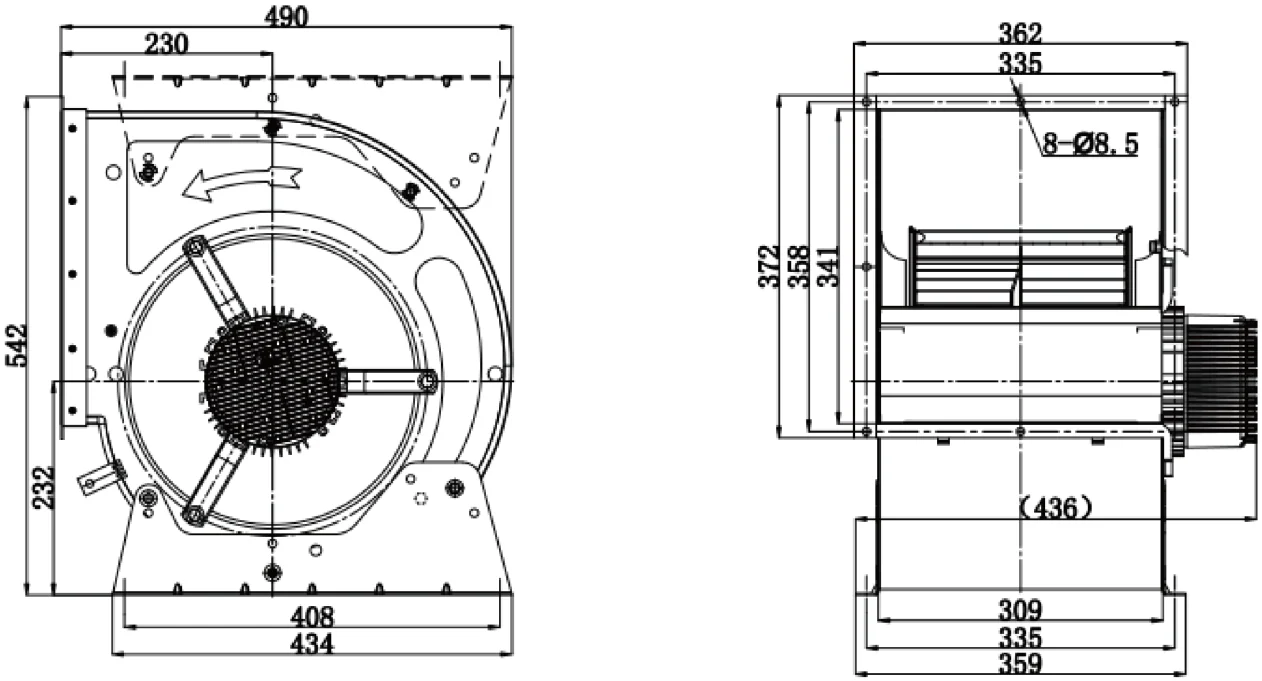

| Dimensions | 12-9 |
Typical applications
- Commercial kitchen extraction
- Ventilation units and AHUs
- Process and fume extraction
Series LWDD12: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø305 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWDD12-9-EC this model | 4,362 m³/h | 491 Pa | 1,100 rpm | — | — | 220 V | |
| LWDD12-12-EC | 1,489 m³/h | 437 Pa | 960 rpm | — | — | 220 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
