LWFA-E series dimensional drawing (shared by several models)

ImpellerØ300 mm11.8 in
Max airflow4,300 m³/h2,531 CFM
Max static pressure720 Pa2.89 in. wg
Noise72 dB(A)

LWFA-E-300-01 LWFA Series Direct Drive Centrifugal Blower Ø300 mm

Ø300 mm | AC | Max airflow 4,300 m³/h | Max static pressure 720 Pa | 72 dB(A)

SKU: LWFA-E-300-01 Categories: Commercial Centrifugal Blowers, Impeller Ø280–500 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueLWFA LWFA Series Direct Driven centrifugal blower · SKU on PDF p. 3

All files for LWFA-E-300-015 files · direct download

PDFFull product catalogue · model on PDF p. 3 WEBPCatalogue data table WEBPPerformance curve PDFSeries catalogue

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Convection ovens Tunnel ovens Commercial dryers Industrial AHUs All industries →

Proven in projects

Drying, heat treatment & ovens Range hoods & ovens Cleanroom build All case studies →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

EXB2D drawing (CAXA EXB)910 KBRequest →

CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWFA-E-300-01

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWFA-E-300-01datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Catalogue table & Curve LWFA-E-300-01

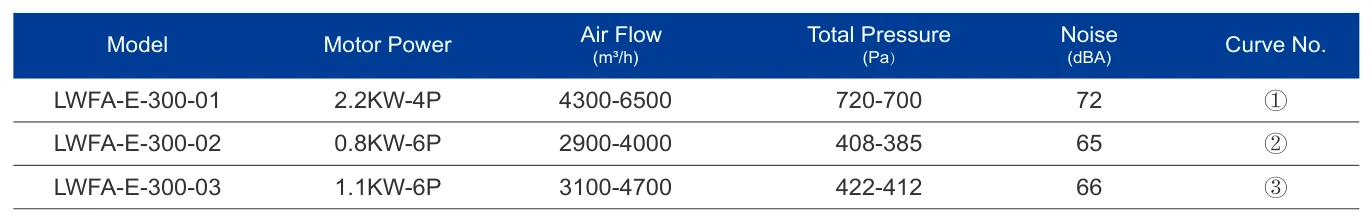

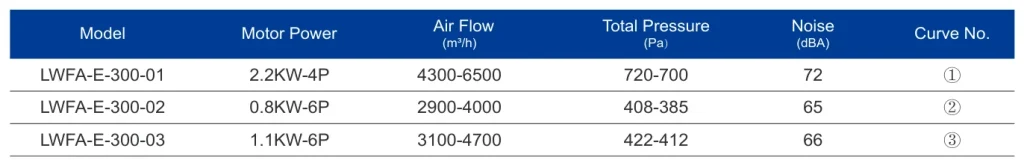

LWFA-E-300-01 Catalogue data table — **Catalogue data table**Series table from the catalogue — read the row for this model. Dimensions are given on the drawing of the same size.

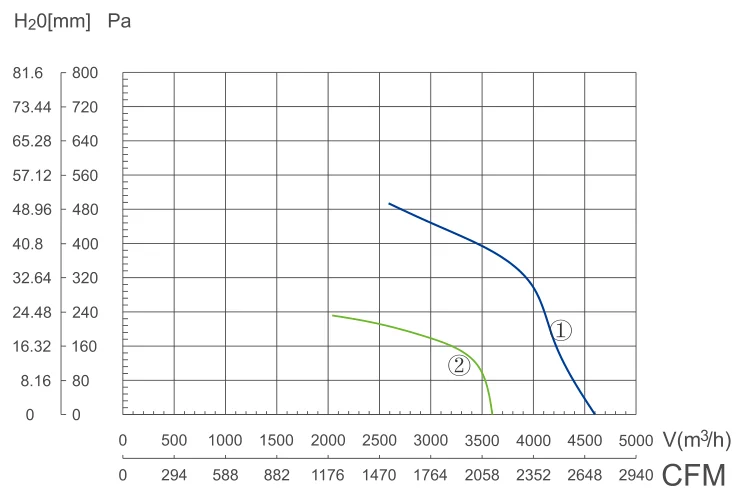

LWFA-E-300-01 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Files for LWFA-E-300-01: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWFA-E-300-01

LWFA-E-300-01 is a LONGWELL LWFA Series Direct Drive Centrifugal Blower from the Impeller Ø280–500 mm range, impeller Ø300 mm, maximum airflow 4,300 m³/h, maximum static pressure 720 Pa, noise 72 dB(A). The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWFA-E-300-01
Motor type	AC
Max. airflow	4,300 m³/h
Max. static pressure	720 Pa
Noise	72 dB(A)
Impeller diameter	Ø300 mm
Blade diameter	300mm

Typical applications

Commercial kitchen extraction
Ventilation units and AHUs
Process and fume extraction

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
