ImpellerØ305 mm12.0 in
Max airflow5,298 m³/h3,118 CFM
Max static pressure437 Pa1.75 in. wg
Voltage220 V
Speed960 rpm

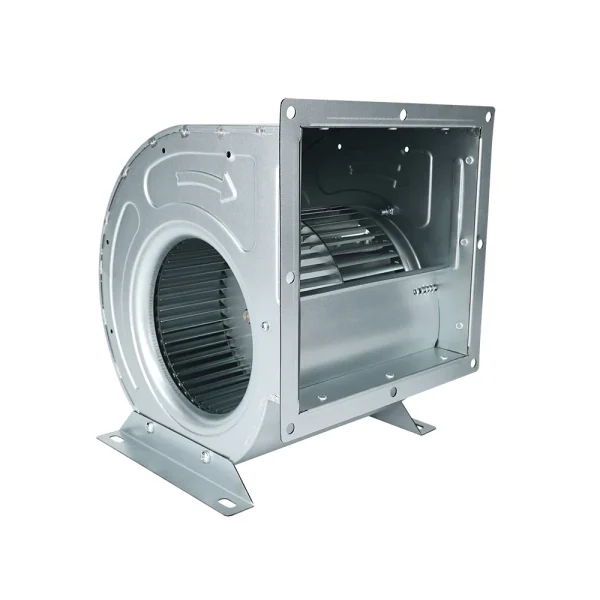

LWDD12-12-EC DD Series EC Direct Drive Centrifugal Blower Ø305 mm

Ø305 mm | EC | Max airflow 5,298 m³/h | Max static pressure 437 Pa

SKU: LWDD12-12-EC Categories: Commercial Centrifugal Blowers, Impeller Ø280–500 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFDatasheet (PDF)electrical & performance data

All files for LWDD12-12-EC3 files · direct download

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Convection ovens Tunnel ovens Commercial dryers Industrial AHUs All industries →

Proven in projects

Drying, heat treatment & ovens Range hoods & ovens Cleanroom build All case studies →

Engineering files (on request)

CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.

EXB2D drawing (CAXA EXB)4.7 MBRequest →

CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

Get a quote · LWDD12-12-EC

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWDD12-12-ECdatasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWDD12-12-EC

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 220 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Dimensional drawing LWDD12-12-EC

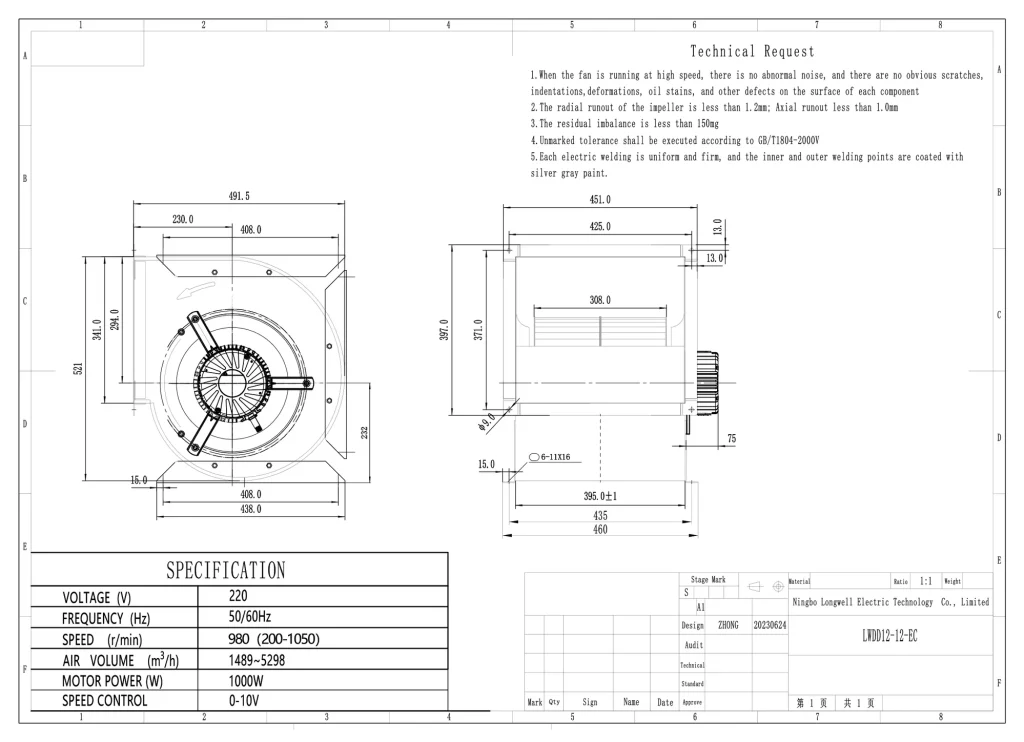

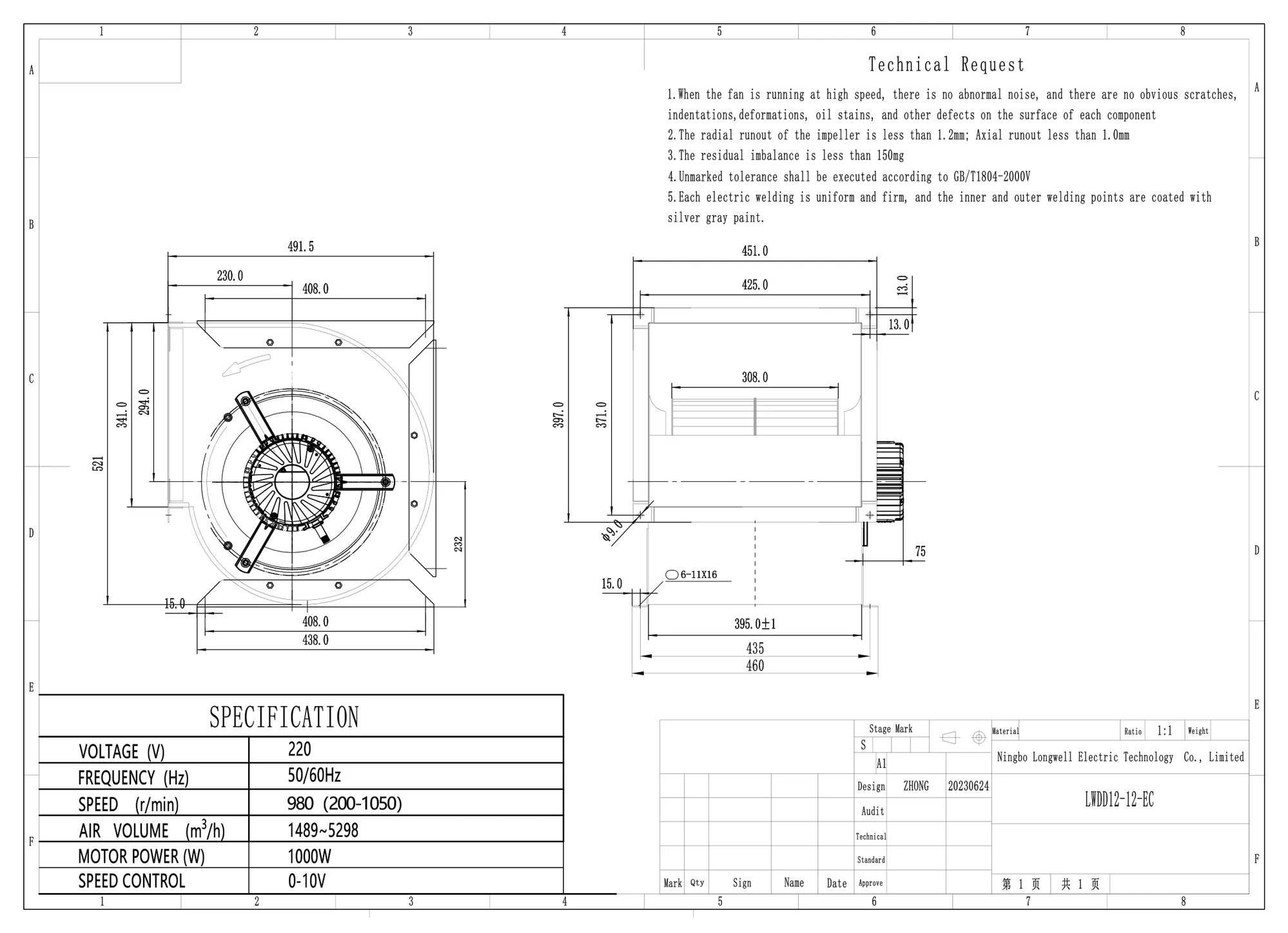

LWDD12-12-EC Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Files for LWDD12-12-EC: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWDD12-12-EC

LWDD12-12-EC is a LONGWELL DD Series EC Direct Drive Centrifugal Blower from the Impeller Ø280–500 mm range, impeller Ø305 mm, rated 220 V EC, maximum airflow 5,298 m³/h, maximum static pressure 437 Pa. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWDD12-12-EC
Series	LWDD12
Motor type	EC
Phase	1-phase
Rated voltage	220 V
Frequency	50 Hz
Speed	960 rpm
Max. airflow	5,298 m³/h
Max. static pressure	437 Pa
Impeller diameter	Ø305 mm
Dimensions	12-12

Typical applications

Commercial kitchen extraction
Ventilation units and AHUs
Process and fume extraction

Series LWDD12: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
