ImpellerØ120 mm4.7 in
Max airflow278 m³/h164 CFM
Max static pressure350 Pa1.41 in. wg
Voltage230 V
Speed1,200 rpm
Input power71 W
Noise54 dB(A)

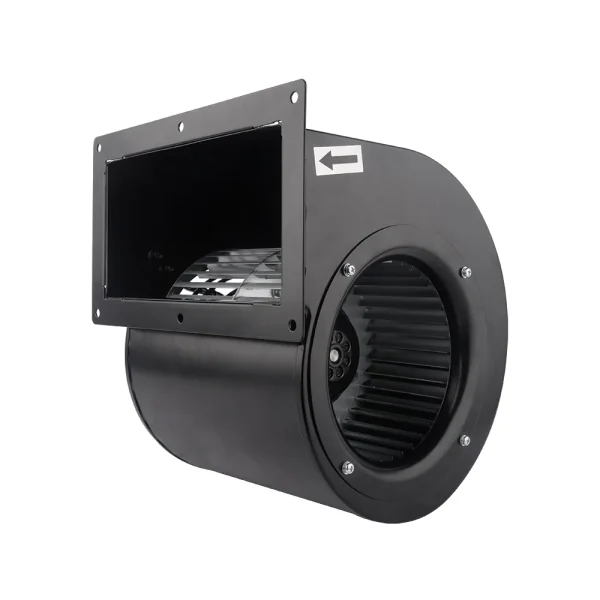

LWFA2E120-092DS-02 AC Dual Inlet Forward Centrifugal Blower Ø120 mm

Ø120 mm | AC | Max airflow 278 m³/h | Max static pressure 350 Pa | 54 dB(A)

SKU: LWFA2E120-092DS-02 Categories: Centrifugal Fans, Dual Inlet Forward Curved Blowers, Impeller Ø120–146 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · RoHS · ETL on request

Get a quote · LWFA2E120-092DS-02

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com All files for LWFA2E120-092DS-02drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

LWFA2E120-092DS-02 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

LWFA2E120-092DS-02 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Series catalogue

PDFLWFA LWFA Series Direct Driven centrifugal blower · 1.4 MB

Covers the whole series, not only this model.

Need a non-standard size or another format? Ask an engineer or search the download center.

LWFA2E120-092DS-02 is a LONGWELL AC Dual Inlet Forward Centrifugal Blower from the Dual Inlet Forward Curved Blowers range, impeller Ø120 mm, rated 230 V AC, maximum airflow 278 m³/h, maximum static pressure 350 Pa, noise 54 dB(A), input power 71 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWFA2E120-092DS-02
Series	LWFA2E120
Motor type	AC
Phase	1-phase
Rated voltage	230 V
Frequency	60 Hz
Current	0.33 A
Input power	71 W
Speed	1,200 rpm
Max. airflow	278 m³/h
Max. static pressure	350 Pa
Noise	54 dB(A)
Ambient temperature	-30 ~ 60 °C
Impeller diameter	Ø120 mm
Rotor diameter	92
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWFA2E120: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø120 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWFA2E120-092DS-02 this model	278 m³/h	350 Pa	1,200 rpm	71 W	54 dB(A)	230 V
LWFA2E120-092NS-01	206 m³/h	278 Pa	2,550 rpm	50 W	51 dB(A)	230 V	View
LWFA2E120-092SS-02	206 m³/h	278 Pa	2,400 rpm	58 W	51 dB(A)	230 V	View
LWFA2E120-092NS-02	216 m³/h	391 Pa	2,800 rpm	63 W	53 dB(A)	230 V	View
LWFA2E120-092SS-03	216 m³/h	391 Pa	2,500 rpm	73 W	53 dB(A)	230 V	View
LWFA4E120-092SS-01	262.5 m³/h	294 Pa	1,760 rpm	54 W	59 dB(A)	230 V	View
LWFA2E120-092DS-01	299 m³/h	278 Pa	1,300 rpm	65 W	54 dB(A)	230 V	View
LWFA2E120-092DS-06	391 m³/h	443 Pa	2,100 rpm	95 W	66 dB(A)	230 V	View
LWFA2E120-092DS-04	391 m³/h	402 Pa	1,550 rpm	116 W	60 dB(A)	230 V	View
LWFA2E120-092DS-05	412 m³/h	330 Pa	2,100 rpm	85 W	66 dB(A)	230 V	View
LWFA2E120-092DS-03	433 m³/h	309 Pa	1,700 rpm	105 W	60 dB(A)	230 V	View
