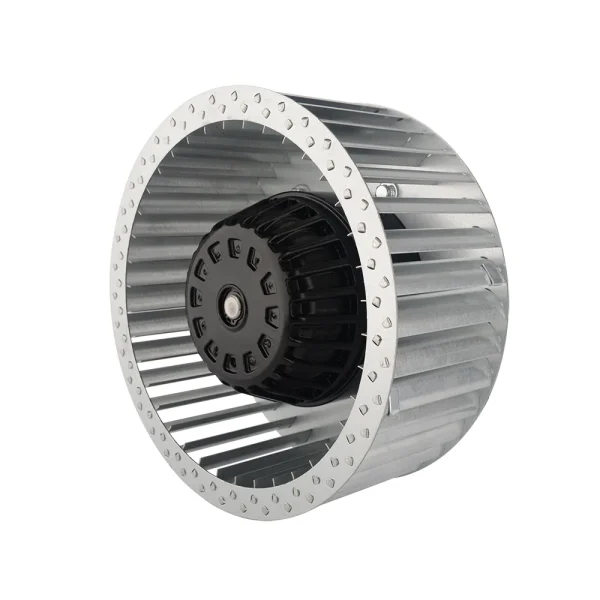

LWFA4D400-188NT-01 product photo
LWFA8D400-188NT-03 product photo
LWFA8D400-188NT-03 product photo
  • ImpellerØ400 mm
  • Max airflow6,695 m³/h
  • Max static pressure1,030 Pa
  • Voltage380 V
  • Speed1,400 rpm
  • Input power4,800 W
  • Noise82 dB(A)

LWFA4D400-188NT-01 AC Forward Curved Centrifugal Fan Ø400 mm

Ø400 mm | AC | Max airflow 6,695 m³/h | Max static pressure 1,030 Pa | 82 dB(A)

SKU: LWFA4D400-188NT-01 Categories: , ,
  • Factory direct
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 18-month warranty
  • CE · ETL · RoHS
View RFQ →

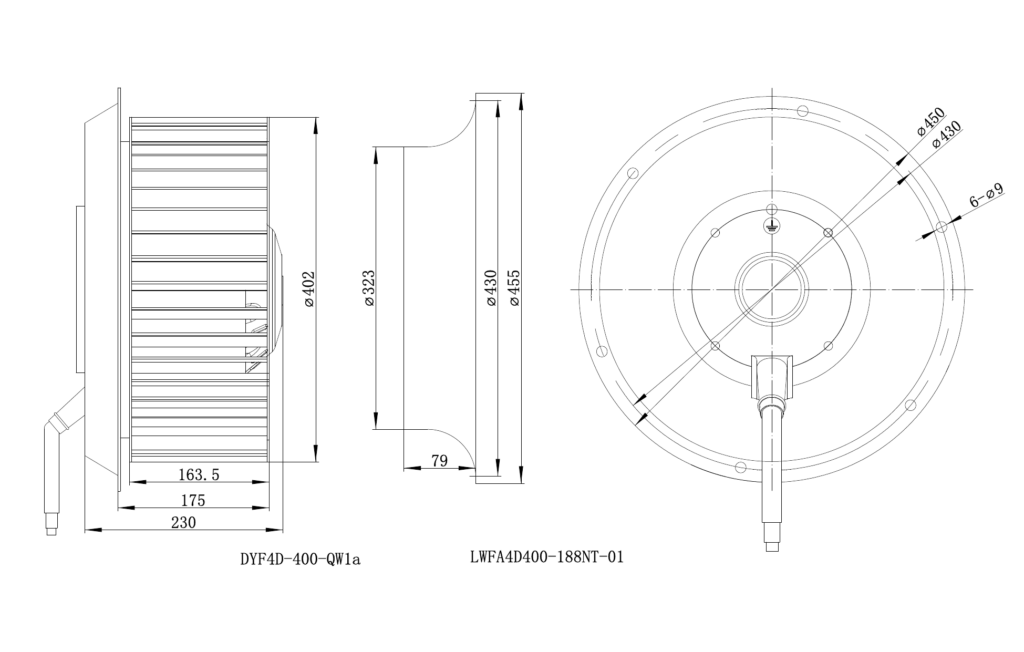

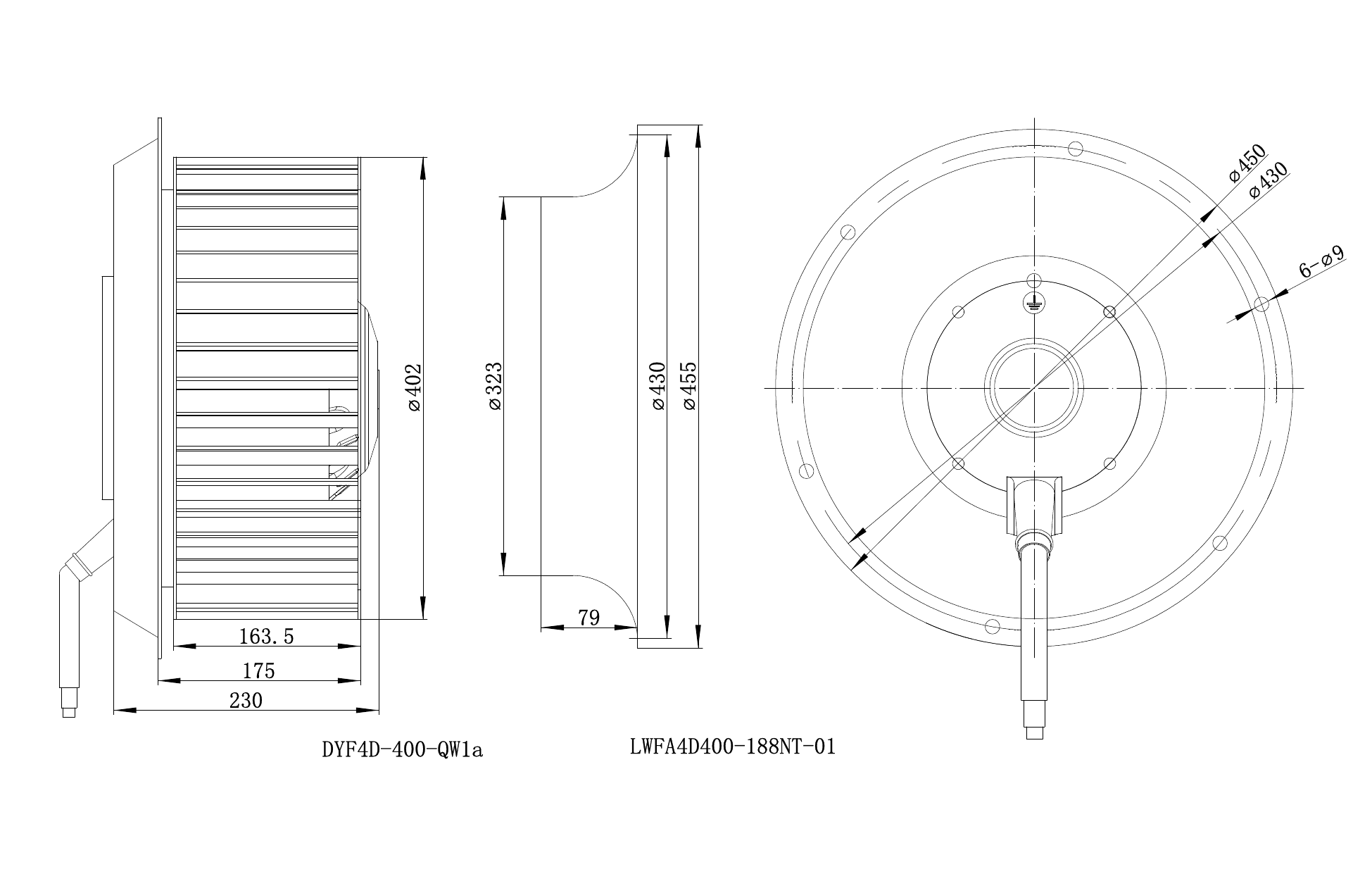

Dimensional drawingDimensions in mm. Confirm against the final approval drawing before machining cut-outs.
LWFA4D400-188NT-01 Dimensional drawing

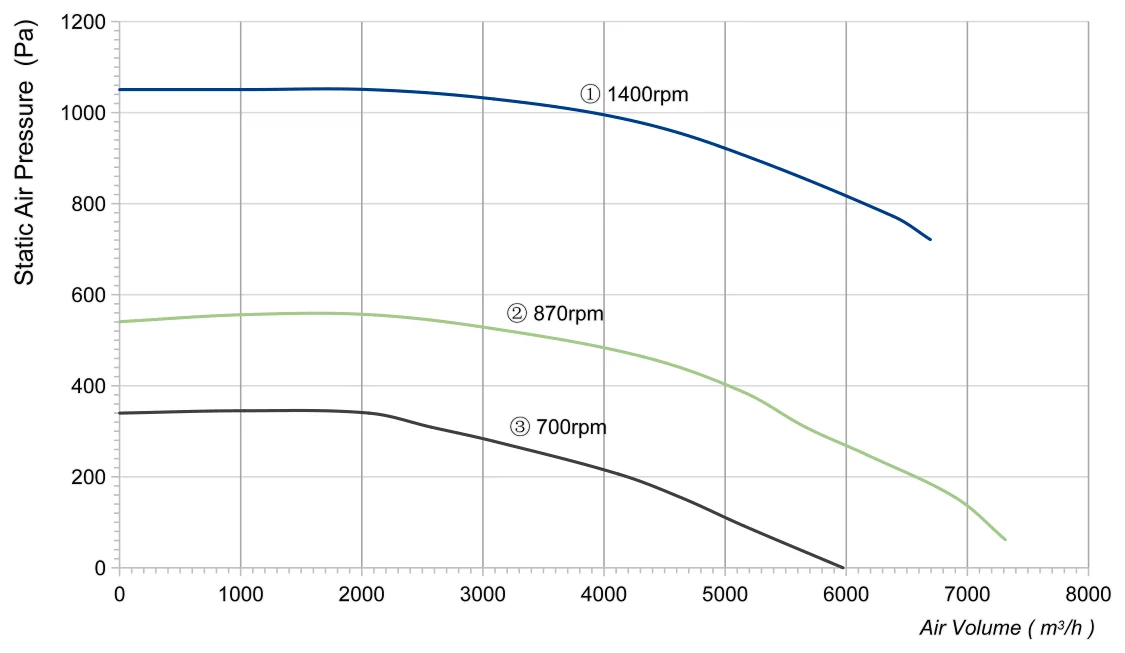

Performance curve (P-Q)Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.
LWFA4D400-188NT-01 Performance curve (P-Q)

Series catalogue

PDFLWFA LWFA Series Direct Driven centrifugal blower · 1.4 MB

Covers the whole series, not only this model.

Need a non-standard size or another format? Ask an engineer or search the download center.

LWFA4D400-188NT-01 is a LONGWELL AC Forward Curved Centrifugal Fan from the Forward Curved Centrifugal Fans range, impeller Ø400 mm, rated 380 V AC, maximum airflow 6,695 m³/h, maximum static pressure 1,030 Pa, noise 82 dB(A), input power 4,800 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model LWFA4D400-188NT-01
Series LWFA4D400
Motor type AC
Phase 3-phase
Rated voltage 380 V
Frequency 50 Hz
Current 8 A
Input power 4,800 W
Speed 1,400 rpm
Max. airflow 6,695 m³/h
Max. static pressure 1,030 Pa
Noise 82 dB(A)
Ambient temperature -30 ~ 60 °C
Impeller diameter Ø400 mm
Rotor diameter 188
Insulation class F
Bearing Maintenance-free ball bearings
Duty S1

Typical applications

  • Air handling units (AHU) and rooftop units (RTU)
  • Data-center CRAH / CRAC units and fan walls
  • Dust extraction and process ventilation
  • Fan filter units and air purifiers

Series LWFA4D400: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø400 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

ModelMax airflowMax static pressureSpeedPowerNoiseVoltage
LWFA4D400-188NT-01 this model 6,695 m³/h1,030 Pa 1,400 rpm4,800 W82 dB(A)380 V
LWA-400(16")U(S)M-01 90 m³/hsee curve 1,350 rpm170 W—110-120 V View
LWA-400(16")U(S)M-02 110 m³/hsee curve 1,350 rpm200 W—110-120 V View
LWA-400(16")U(S)M-03 150 m³/hsee curve 2,800 rpm750 W—110-120 V View
LWEA400S(T)M-068E 2,280 m³/hsee curve 1,450 rpm370 W—220 V View
LWEAF400-01 2,280 m³/hsee curve 1,450 rpm370 W—220 V View
LWDA-400 (16")U-MWN-01 2,500 m³/hsee curve 1,780 rpm440 W75 dB(A)110-120 V View
LWFA-E-400-01 4,500 m³/h612 Pa ——68 dB(A)— View
LWEA400S(T)M-161E 4,687 m³/h119 Pa 1,450 rpm550 W—220 V View
LWMFAF400-01 5,100 m³/h1,390 Pa ——90 dB(A)380 V View
LWFA-E-400-02 5,100 m³/h610 Pa ——70 dB(A)— View
LWMFAF400-02 5,400 m³/h1,700 Pa ——89 dB(A)380 V View
LWDA-400 (16")S-MWN-02 7,100 m³/hsee curve 2,940 rpm1,300 W83 dB(A)220-240 V View
LWEA400S(T)M-162E 9,336 m³/h474 Pa 2,900 rpm1,100 W—220 V View
LWA-400(16")U(S)M-04 11,000 m³/h400 Pa 2,800 rpm1,100 W—110-120 V View

Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.

Related products

Adjacent sizesOne size up when airflow is short, one size down when it is too much

LWBD3G355-102NH-04 product photoLWBD3G355-102NH-04Ø355 mm · 2,421 m³/h · 499 Pa · DCadjacent sizeLONGWELL product videoLWBE3G355-092PS-15Ø355 mm · 2,472 m³/h · 350 Pa · ECadjacent sizeLWBE3G355-092NS-19 product photoLWBE3G355-092NS-19Ø355 mm · 2,472 m³/h · 350.2 Pa · ECadjacent sizeLWBE3G355-102NS-20 product photoLWBE3G355-102NS-20Ø355 mm · 3,554 m³/h · 618 Pa · ECadjacent sizeLWBE3G355-102PS-16 product photoLWBE3G355-102PS-16Ø355 mm · 3,554 m³/h · 618 Pa · ECadjacent sizeLWBA4E355-102NS-01 product photoLWBA4E355-102NS-01Ø355 mm · 2,524 m³/h · 381 Pa · ACadjacent size

Alternatives at a similar dutySimilar airflow, different construction or motor platform

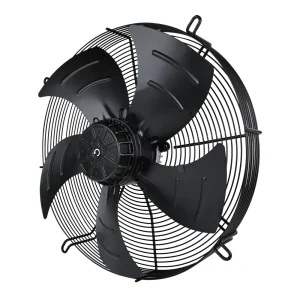

LWAE3G450ST-5MNW-02 product photoLWAE3G450ST-5MNW-02Ø450 mm · 6,695 m³/h · 242 Pa · ECsimilar dutyLWAE3G450SS-5MEW-03 product photoLWAE3G450SS-5MEW-03Ø450 mm · 6,695 m³/h · 242 Pa · ECsimilar dutyLONGWELL product videoLWAE3G450SS-5MGW-05Ø450 mm · 6,695 m³/h · 242 Pa · ECsimilar dutyLWAE3G450SS-5MNW-01 product photoLWAE3G450SS-5MNW-01Ø450 mm · 6,695 m³/h · 242 Pa · ECsimilar dutyLWAA6E550S-5MEB-05 product photoLWAA6E550S-5MEB-05Ø550 mm · 6,695 m³/h · ACsimilar dutyLWAE3G450ST-5MEW-04 product photoLWAE3G450ST-5MEW-04Ø450 mm · 6,695 m³/h · 242 Pa · ECsimilar duty
