Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ400 mm15.7 in
- Max airflow3,090 m³/h1,819 CFM
- Max static pressure515 Pa2.07 in. wg
- Voltage380 V
- Speed1,460 rpm
- Input power320 W
- Noise68 dB(A)
LWBA4D400-102NT-04 AC Backward Curved Centrifugal Fan Ø400 mm
Ø400 mm | AC | Max airflow 3,090 m³/h | Max static pressure 515 Pa | 68 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · RoHS · ETL on request
Downloads for LWBA4D400-102NT-04
PDFDatasheet · 1.9 MBNeed a non-standard size or another format? Ask an engineer or search the download center.
LWBA4D400-102NT-04 is a LONGWELL AC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø400 mm, rated 380 V AC, maximum airflow 3,090 m³/h, maximum static pressure 515 Pa, noise 68 dB(A), input power 320 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

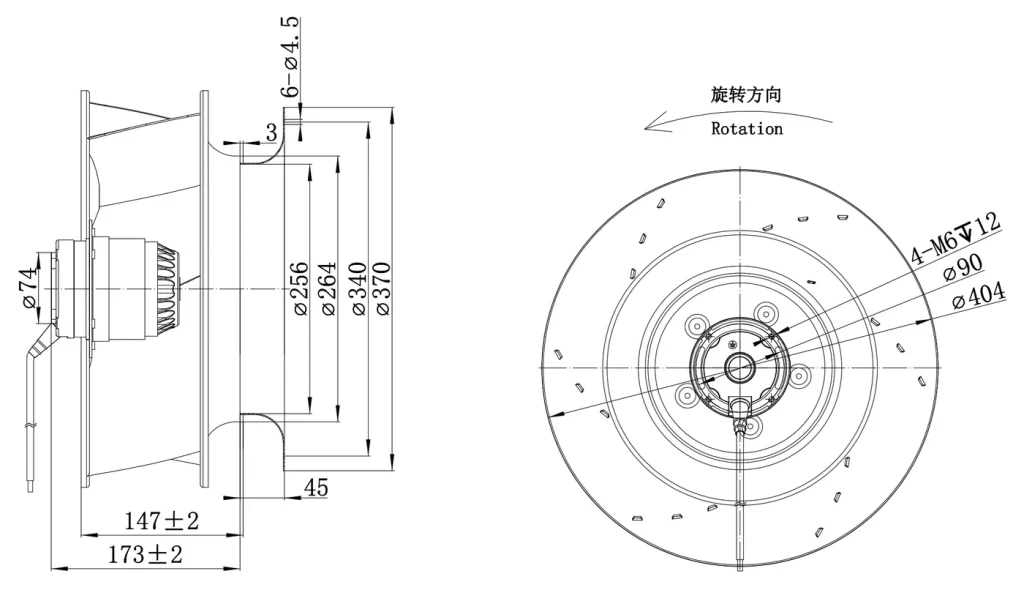

Technical data
| Model | LWBA4D400-102NT-04 |
|---|---|
| Series | LWBA4D400 |
| Motor type | AC |
| Phase | 3-phase |
| Rated voltage | 380 V |
| Frequency | 60 Hz |
| Current | 0.75 A |
| Input power | 320 W |
| Speed | 1,460 rpm |
| Max. airflow | 3,090 m³/h |
| Max. static pressure | 515 Pa |
| Noise | 68 dB(A) |
| Ambient temperature | -40 ~ 65 °C |
| Impeller diameter | Ø400 mm |
| Rotor diameter | 102 |
| Impeller material | Aluminum Alloy |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBA4D400: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø400 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWBA4D400-102NT-04 this model | 3,090 m³/h | 515 Pa | 1,460 rpm | 320 W | 68 dB(A) | 380 V | |
| LWBA6E400-102NS-05 | 2,163 m³/h | 216 Pa | 940 rpm | 135 W | 56 dB(A) | 230 V | View |
| LWBA6E400-102NS-06 | 2,421 m³/h | 278 Pa | 1,050 rpm | 155 W | 57 dB(A) | 230 V | View |
| LWBA4D400-102NT-03 | 2,936 m³/h | 464 Pa | 1,380 rpm | 265 W | 64 dB(A) | 380 V | View |
| LWBA4E400-102NS-01 | 2,936 m³/h | 464 Pa | 1,350 rpm | 260 W | 64 dB(A) | 230 V | View |
| LWBA4E400-102NS-02 | 3,090 m³/h | 515 Pa | 1,450 rpm | 330 W | 68 dB(A) | 230 V | View |
| LWBA4D400-138NT-10 | 4,120 m³/h | 494 Pa | 1,380 rpm | 440 W | 66 dB(A) | 380 V | View |
| LWBA4E400-138NS-09 | 4,120 m³/h | 494 Pa | 1,380 rpm | 430 W | 66 dB(A) | 230 V | View |
| LWBA4D400-138NT-08 | 4,532 m³/h | 494 Pa | 1,370 rpm | 550 W | 69 dB(A) | 380 V | View |
| LWBA4E400-138NS-07 | 4,532 m³/h | 494 Pa | 1,380 rpm | 550 W | 69 dB(A) | 230 V | View |
| LWBA4D400-138NT-11 | 5,082 m³/h | 504 Pa | 1,400 rpm | 484 W | 72 dB(A) | 380 V | View |
| LWFA8D400-188NT-03 | 5,974 m³/h | 345.05 Pa | 700 rpm | 1,700 W | 65 dB(A) | 380 V | View |
| LWFA4D400-188NT-01 | 6,695 m³/h | 1,030 Pa | 1,400 rpm | 4,800 W | 82 dB(A) | 380 V | View |
| LWFA6D400-188NT-02 | 7,313 m³/h | 540.75 Pa | 870 rpm | 2,800 W | 74 dB(A) | 380 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
