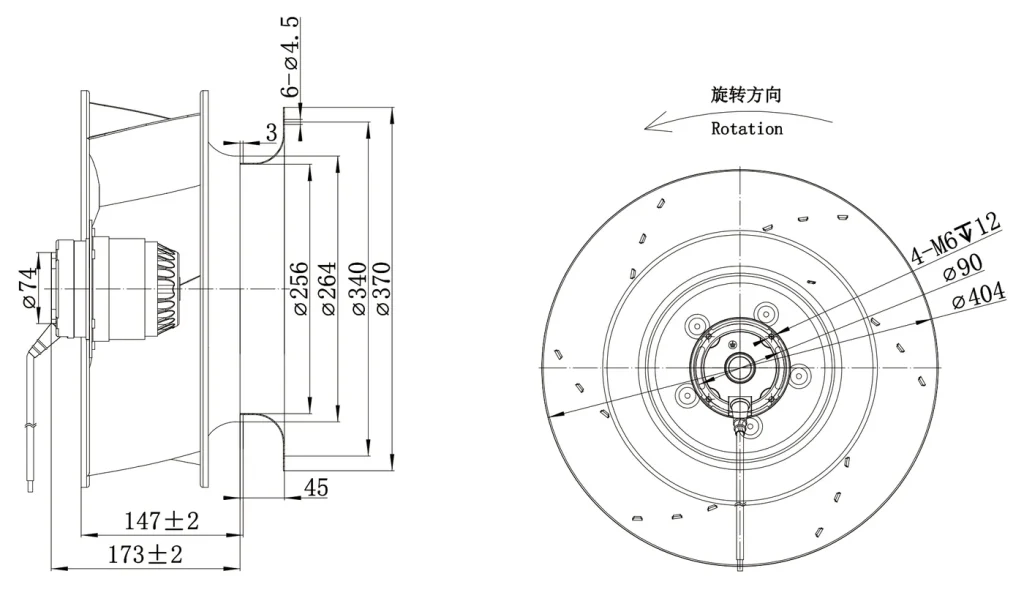

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ400 mm15.7 in
- Max airflow2,163 m³/h1,273 CFM
- Max static pressure216 Pa0.87 in. wg
- Voltage230 V
- Speed940 rpm
- Input power135 W
- Noise56 dB(A)
LWBA6E400-102NS-05 AC Backward Curved Centrifugal Fan Ø400 mm
Ø400 mm | AC | Max airflow 2,163 m³/h | Max static pressure 216 Pa | 56 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
PDFDatasheet (PDF)electrical & performance dataPDFFull product catalogueAC AC Backward centrifugal fans · SKU on PDF p. 32
All files for LWBA6E400-102NS-053 files · direct download
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Proven in: AHU & ventilation unit fans · CRAH FanGrid retrofit · Heat pump fan programme — all case studies on longwellfans.com
Typical applications: Air conditioning · Air handling units · FanGrid arrays · FFU / EFU — all industries
Downloads for LWBA6E400-102NS-05
PDFFull product catalogue · AC AC Backward centrifugal fans · model on PDF p. 32 · 29.3 MBPDFDatasheet · 1.9 MBNeed a non-standard size or another format? Ask an engineer or search the download center.
LWBA6E400-102NS-05 is a LONGWELL AC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø400 mm, rated 230 V AC, maximum airflow 2,163 m³/h, maximum static pressure 216 Pa, noise 56 dB(A), input power 135 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWBA6E400-102NS-05 |
|---|---|
| Series | LWBA6E400 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 0.72 A |
| Input power | 135 W |
| Speed | 940 rpm |
| Max. airflow | 2,163 m³/h |
| Max. static pressure | 216 Pa |
| Noise | 56 dB(A) |
| Ambient temperature | -40 ~ 65 °C |
| Impeller diameter | Ø400 mm |
| Rotor diameter | 102 mm |
| Impeller material | Aluminum Alloy |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Rotation | Clockwise,seen on rotor |
