ImpellerØ200 mm7.9 in
Max airflow720 m³/h424 CFM
Voltage110-120 V
Speed3,400 rpm
Input power179 W
Noise61 dB(A)

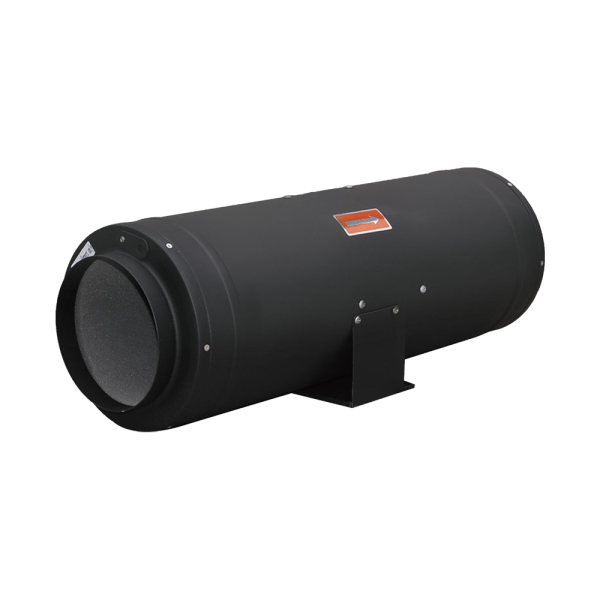

LWDA-200 (8″)U-MWN-03 AC Ultra Silent Metal Duct Fan Ø200 mm

Ø200 mm | AC | Max airflow 720 m³/h | 61 dB(A)

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWDA-200 (8")U-MWN-03

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com All files for LWDA-200 (8")U-MWN-03drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

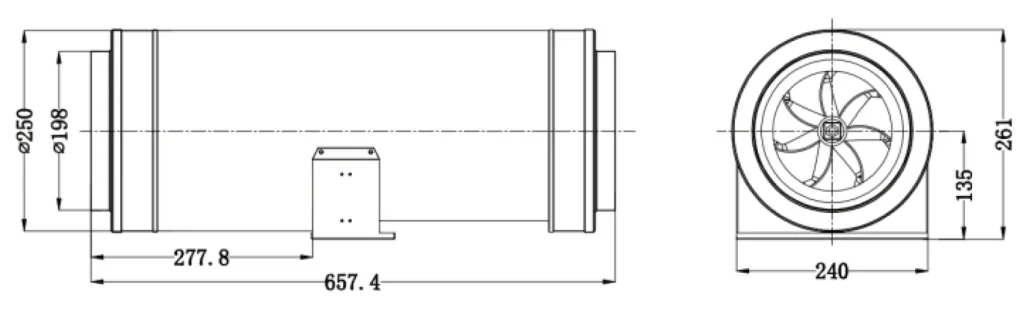

LWDA-200 (8")U-MWN-03 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Need a non-standard size or another format? Ask an engineer or search the download center.

LWDA-200 (8")U-MWN-03 is a LONGWELL AC Ultra Silent Metal Duct Fan from the Ultra Silent Duct Fans range, impeller Ø200 mm, rated 110-120 V AC, maximum airflow 720 m³/h, noise 61 dB(A), input power 179 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWDA-200 (8")U-MWN-03
Series	LWDA200
Motor type	AC
Phase	1-phase
Rated voltage	110-120 V
Frequency	60 Hz
Input power	179 W
Speed	3,400 rpm
Max. airflow	720 m³/h
Noise	61 dB(A)
Impeller diameter	Ø200 mm
Inlet diameter	200mm

Typical applications

Residential and commercial fresh-air systems
Kitchen and bathroom exhaust
Local pressurisation and booster duty
Hotel and office ventilation

Series LWDA200: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø200 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWDA-200 (8")U-MWN-03 this model	720 m³/h	see curve	3,400 rpm	179 W	61 dB(A)	110-120 V
LWA-200(8")U(S)M-01	23 m³/h	see curve	2,800 rpm	135 W	—	110-120 V	View
LWDA-200 (8")U-MWN-01	720 m³/h	see curve	3,400 rpm	179 W	65 dB(A)	110-120 V	View
LWDA-200(8")S-PWN-10	735 m³/h	303 Pa	1,650 rpm	113 W	38 dB(A)	230 V	View
LWDA-200(8")U-PWN-12	750 m³/h	302 Pa	1,950 rpm	128 W	38 dB(A)	115 V	View
LWDA-200(8")S-PWN-09	910 m³/h	384 Pa	2,300 rpm	130 W	40 dB(A)	230 V	View
LWDA-200S-MBN-13	987 m³/h	515 Pa	2,540 rpm	176 W	70 dB(A)	230 V	View
LWFA-E-200-01	1,000 m³/h	305 Pa	—	—	58 dB(A)	—	View
LWDA-200 (8")S-MWN-02	1,150 m³/h	see curve	2,900 rpm	143 W	59 dB(A)	220-240 V	View
LWDA-200 (8")S-MWN-04	1,150 m³/h	see curve	2,900 rpm	143 W	57 dB(A)	220-240 V	View
LWDA-200S-PWN-14	1,236 m³/h	391 Pa	2,500 rpm	130 W	29 dB(A)	230 V	View
LWFA4E200-102NS-02	1,236 m³/h	226.6 Pa	1,280 rpm	330 W	59 dB(A)	230 V	View
LWDA-200(8")U-PWN-11	1,250 m³/h	435 Pa	2,480 rpm	182 W	41 dB(A)	115 V	View
LWA-200(8")U(S)M-02	1,300 m³/h	140 Pa	2,800 rpm	120 W	—	110-120 V	View
LWDA-200(8")S-MWN-08	1,300 m³/h	140 Pa	2,800 rpm	80 W	62 dB(A)	220 V	View
