ImpellerØ120 mm4.7 in
Max airflow350 m³/h206 CFM
Max static pressure412 Pa1.65 in. wg
Voltage230 V
Speed3,230 rpm
Input power90 W
Noise67 dB(A)

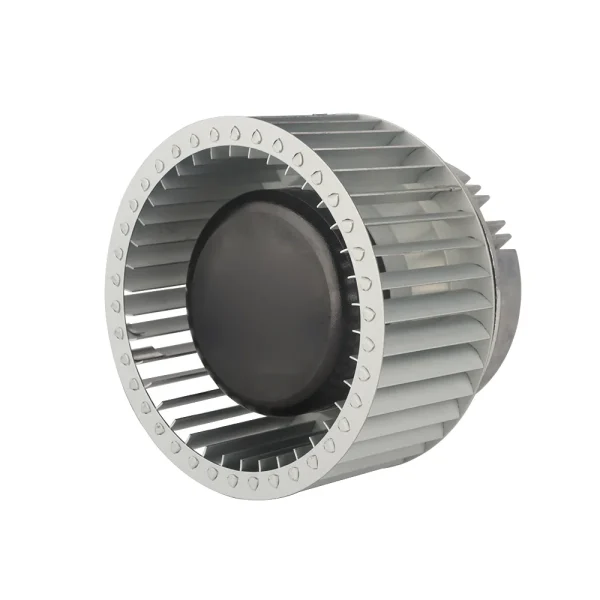

LWFE3G120-072NS-01 EC Forward Curved Centrifugal Fan Ø120 mm

Ø120 mm | EC | Max airflow 350 m³/h | Max static pressure 412 Pa | 67 dB(A)

SKU: LWFE3G120-072NS-01 Categories: Centrifugal Fans, Forward Curved Centrifugal Fans, Impeller Ø108–200 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

Get a quote · LWFE3G120-072NS-01

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com All files for LWFE3G120-072NS-01drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

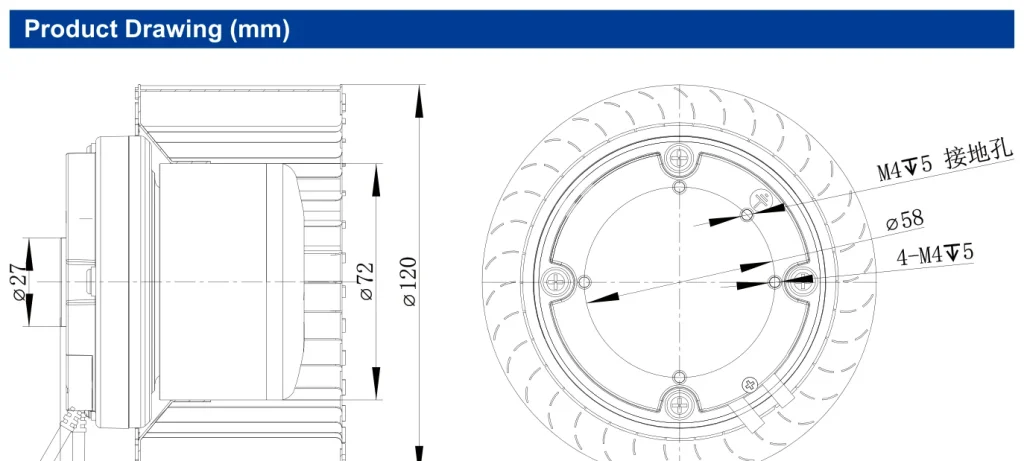

LWFE3G120-072NS-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

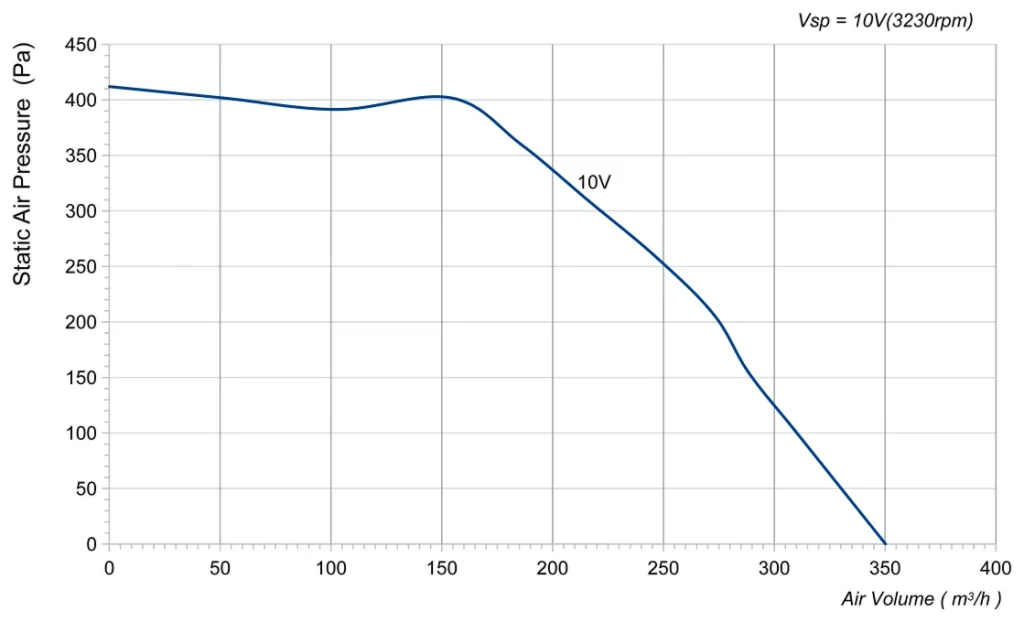

LWFE3G120-072NS-01 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Need a non-standard size or another format? Ask an engineer or search the download center.

LWFE3G120-072NS-01 is a LONGWELL EC Forward Curved Centrifugal Fan from the Forward Curved Centrifugal Fans range, impeller Ø120 mm, rated 230 V EC, maximum airflow 350 m³/h, maximum static pressure 412 Pa, noise 67 dB(A), input power 90 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWFE3G120-072NS-01
Series	LWFE3G120
Motor type	EC
Phase	1-phase
Rated voltage	230 V
Frequency	50 Hz
Current	0.67 A
Input power	90 W
Speed	3,230 rpm
Max. airflow	350 m³/h
Max. static pressure	412 Pa
Noise	67 dB(A)
Ambient temperature	-30 ~ 60 °C
Impeller diameter	Ø120 mm
Rotor diameter	72
Insulation class	B
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWFE3G120: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø120 mm · EC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWFE3G120-072NS-01 this model	350 m³/h	412 Pa	3,230 rpm	90 W	67 dB(A)	230 V
LWFE3G120-072SS-01	268 m³/h	443 Pa	2,200 rpm	42 W	60 dB(A)	230 V	View
LWFE3G120-072SS-02	361 m³/h	649 Pa	3,650 rpm	75 W	61 dB(A)	230 V	View
LWFE3G120-072DS-01	433 m³/h	263 Pa	1,900 rpm	70 W	59 dB(A)	230 V	View
