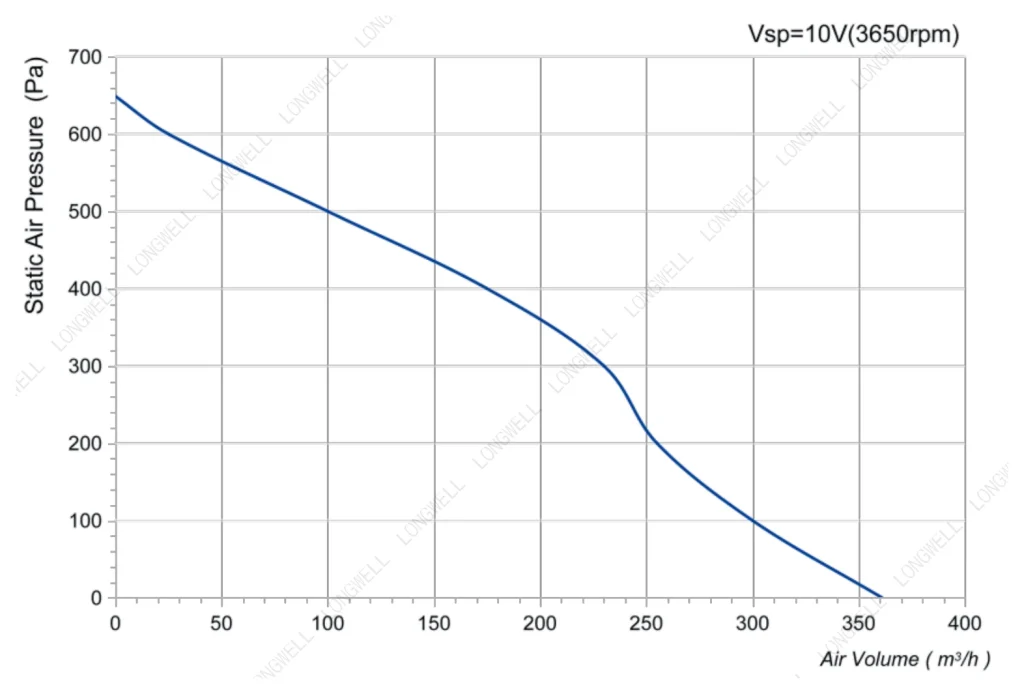

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ120 mm4.7 in
- Max airflow361 m³/h215 CFM
- Max static pressure649 Pa2.61 in. wg
- Voltage230 V
- Speed3,650 rpm
- Input power75 W
- Noise61 dB(A)
LWFE3G120-072SS-02 EC Single Inlet Forward Centrifugal Blower Ø120 mm
Ø120 mm | EC | Max airflow 361 m³/h | Max static pressure 649 Pa | 61 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.
Downloads for LWFE3G120-072SS-02
PDFDatasheetNeed a non-standard size or another format? Ask an engineer or search the download center.
LWFE3G120-072SS-02 is a LONGWELL EC Single Inlet Forward Centrifugal Blower from the Single Inlet Forward Curved Blowers range, impeller Ø120 mm, rated 230 V EC, maximum airflow 361 m³/h, maximum static pressure 649 Pa, noise 61 dB(A), input power 75 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWFE3G120-072SS-02 |
|---|---|
| Series | LWFE3G120 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 0.53 A |
| Input power | 75 W |
| Speed | 3,650 rpm |
| Max. airflow | 361 m³/h |
| Max. airflow (CFM) | 215 CFM |
| Max. static pressure | 649 Pa |
| Noise | 61 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -25 ~ 70℃ |
| Humidity | 0 ~ 85 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø120 mm |
| Rotor diameter | 72 |
| Impeller material | Galvanised sheet steel ( Impeller ) |
| Protection class | IP55 |
| Insulation class | B |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWFE3G120: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø120 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWFE3G120-072SS-02 this model | 361 m³/h | 649 Pa | 3,650 rpm | 75 W | 61 dB(A) | 230 V | |
| LWFE3G120-072SS-01 | 268 m³/h | 443 Pa | 2,200 rpm | 42 W | 60 dB(A) | 230 V | View |
| LWFE3G120-072NS-01 | 350 m³/h | 412 Pa | 3,230 rpm | 90 W | 67 dB(A) | 230 V | View |
| LWFE3G120-072DS-01 | 433 m³/h | 263 Pa | 1,900 rpm | 70 W | 59 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
