ImpellerØ180 mm7.1 in
Max airflow773 m³/h455 CFM
Max static pressure195.7 Pa0.79 in. wg
Voltage230 V
Speed1,450 rpm
Input power85 W
Noise69 dB(A)

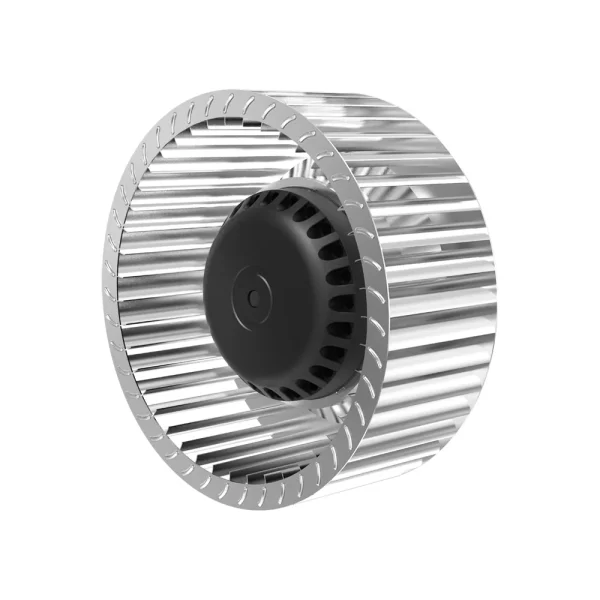

LWFA4E180-092NS-01 AC Forward Curved Centrifugal Fan Ø180 mm

Ø180 mm | AC | Max airflow 773 m³/h | Max static pressure 195.7 Pa | 69 dB(A)

SKU: LWFA4E180-092NS-01 Categories: Centrifugal Fans, Forward Curved Centrifugal Fans, Impeller Ø108–200 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWFA4E180-092NS-01

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com All files for LWFA4E180-092NS-01drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

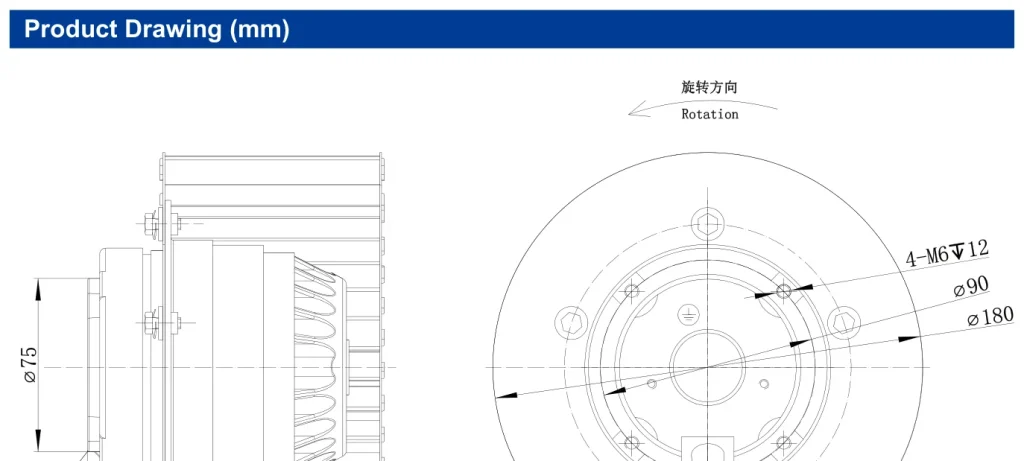

LWFA4E180-092NS-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

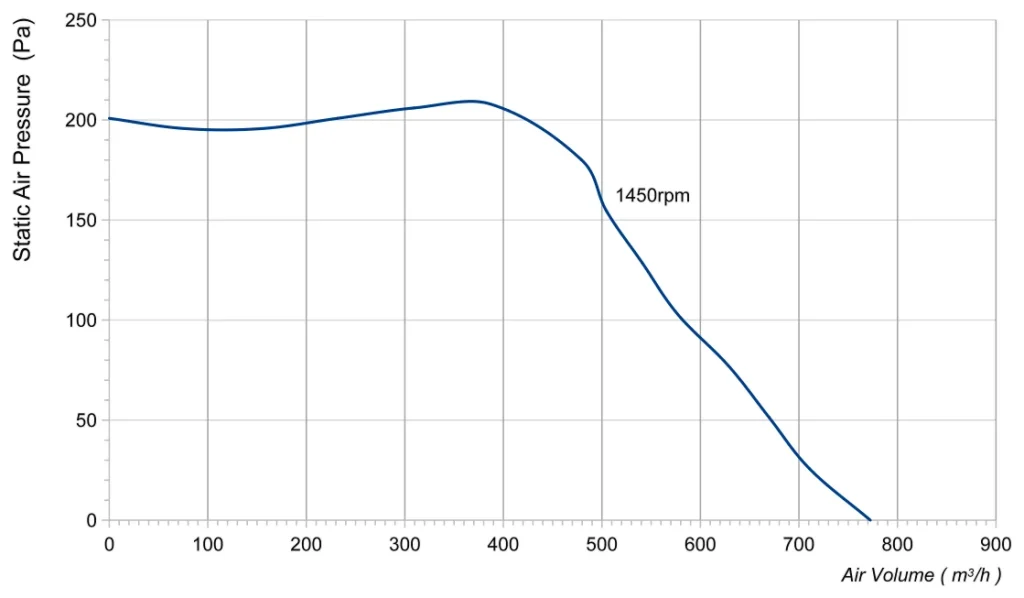

LWFA4E180-092NS-01 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

Series catalogue

PDFLWFA LWFA Series Direct Driven centrifugal blower · 1.4 MB

Covers the whole series, not only this model.

Need a non-standard size or another format? Ask an engineer or search the download center.

LWFA4E180-092NS-01 is a LONGWELL AC Forward Curved Centrifugal Fan from the Forward Curved Centrifugal Fans range, impeller Ø180 mm, rated 230 V AC, maximum airflow 773 m³/h, maximum static pressure 195.7 Pa, noise 69 dB(A), input power 85 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model	LWFA4E180-092NS-01
Series	LWFA4E180
Motor type	AC
Phase	1-phase
Rated voltage	230 V
Frequency	50 Hz
Current	0.52 A
Input power	85 W
Speed	1,450 rpm
Max. airflow	773 m³/h
Max. static pressure	195.7 Pa
Noise	69 dB(A)
Ambient temperature	-30 ~ 60 °C
Impeller diameter	Ø180 mm
Rotor diameter	92
Insulation class	F
Bearing	Maintenance-free ball bearings
Duty	S1

Typical applications

Air handling units (AHU) and rooftop units (RTU)
Data-center CRAH / CRAC units and fan walls
Dust extraction and process ventilation
Fan filter units and air purifiers

Series LWFA4E180: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø180 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWFA4E180-092NS-01 this model	773 m³/h	195.7 Pa	1,450 rpm	85 W	69 dB(A)	230 V
LWBA2E180-092NS-03	443 m³/h	335 Pa	2,560 rpm	52 W	63 dB(A)	230 V	View
LWBA2E180-092NS-01	443 m³/h	335 Pa	2,550 rpm	52 W	63 dB(A)	230 V	View
LWBA2E180-092NS-02	494 m³/h	371 Pa	2,850 rpm	66 W	66 dB(A)	230 V	View
LWFA2E180-092SS-03	742 m³/h	670 Pa	2,000 rpm	300 W	73 dB(A)	230 V	View
LWFA4E180-092SS-02	772.5 m³/h	200.85 Pa	1,330 rpm	135 W	63 dB(A)	230 V	View
LWFA4E180-092SS-01	787.5 m³/h	315 Pa	1,335 rpm	137 W	63 dB(A)	230 V	View
LWDA-180(7")S-MWN-01	1,000 m³/h	90 Pa	2,800 rpm	60 W	58 dB(A)	220 V	View
LWFA4E180-092DS-01	1,205.1 m³/h	247.2 Pa	1,250 rpm	200 W	63 dB(A)	230 V	View
