- ImpellerØ500 mm
- Max airflow6,850 m³/h
- Voltage220/230 V
- Speed1,320 rpm
- Input power420 W
- Noise69 dB(A)
LWAA4E500B-5MKB-12 AC Axial Fan Ø500 mm
Ø500 mm | AC | Max airflow 6,850 m³/h | 69 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS

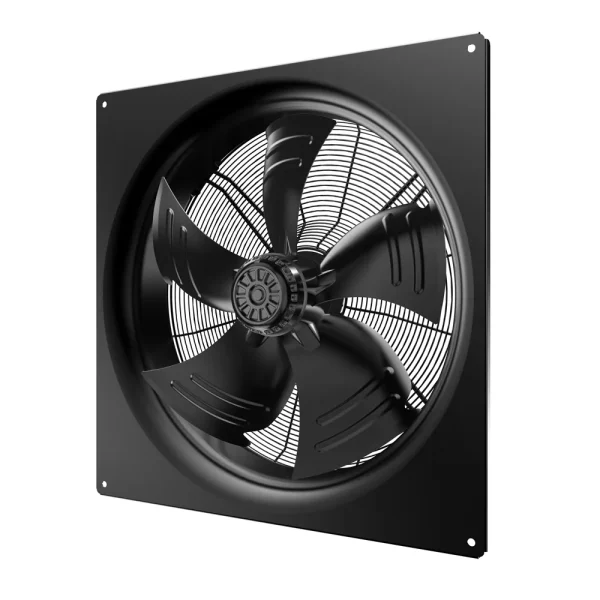

LWAA4E500B-5MKB-12 is a LONGWELL AC Axial Fan from the AC Axial Fans range, impeller Ø500 mm, rated 220/230 V AC, maximum airflow 6,850 m³/h, noise 69 dB(A), input power 420 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWAA4E500B-5MKB-12 |
|---|---|
| Series | LWAA4E500 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 220/230 V |
| Frequency | 50 Hz |
| Current | 1.9 A |
| Input power | 420 W |
| Speed | 1,320 rpm |
| Max. airflow | 6,850 m³/h |
| Noise | 69 dB(A) |
| Ambient temperature | -30 ~ 60 °C |

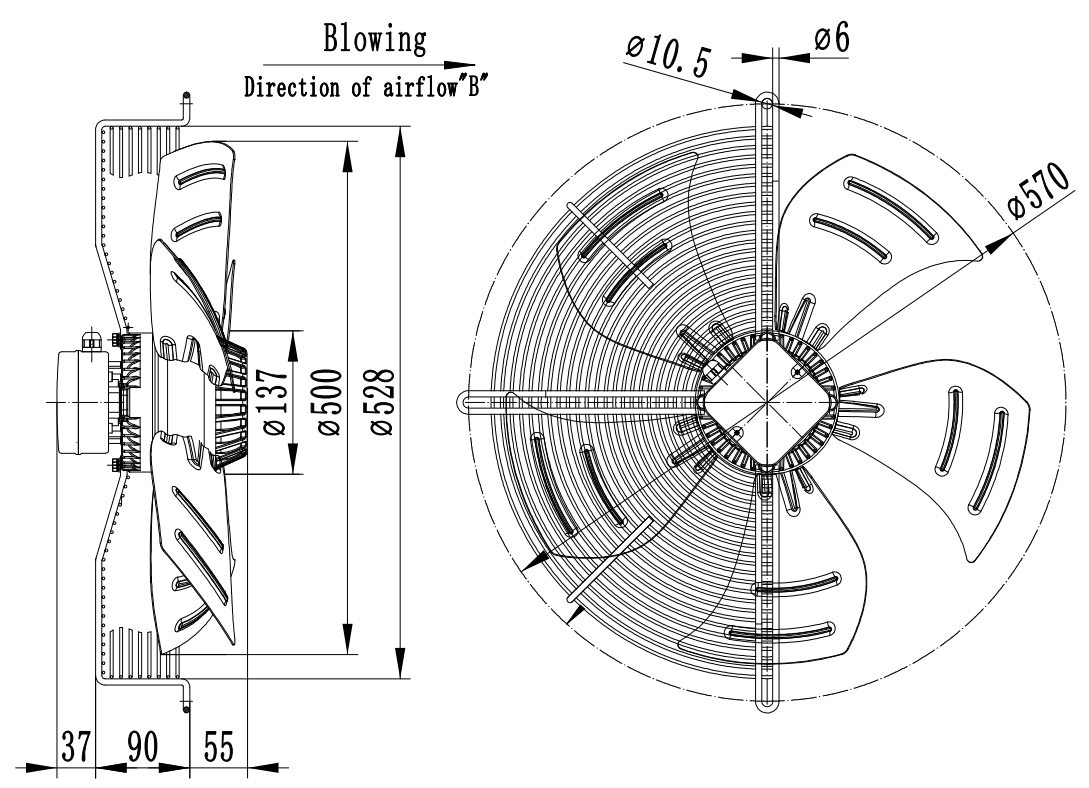

| Impeller diameter | Ø500 mm |
| Impeller material | Cold rolled steel |
| Protection class | IP55 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWAA4E500: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

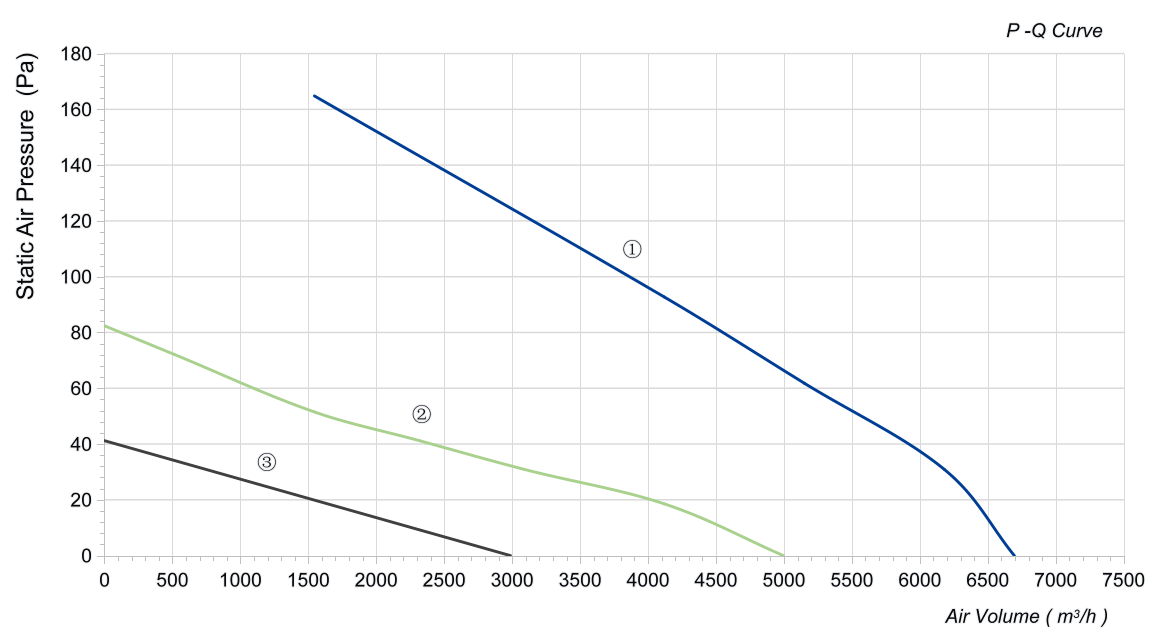

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø500 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAA4E500B-5MKB-12 this model | 6,850 m³/h | see curve | 1,320 rpm | 420 W | 69 dB(A) | 220/230 V | |
| LWA-500(20")U(S)M-01 | 150 m³/h | see curve | 1,350 rpm | 200 W | — | 110-120 V | View |
| LWA-500(20")U(S)M-02 | 165 m³/h | see curve | 1,350 rpm | 250 W | — | 110-120 V | View |
| LWBA6D500-138NT-03 | 5,356 m³/h | 361 Pa | 950 rpm | 450 W | 63 dB(A) | 380 V | View |
| LWEA500S(T)M-069E | 5,700 m³/h | see curve | 1,450 rpm | 550 W | — | 220 V | View |
| LWEAF500-01 | 5,700 m³/h | see curve | 1,450 rpm | 550 W | — | 220 V | View |
| LWBA6D500-138NT-04 | 5,817 m³/h | 412 Pa | 1,050 rpm | 550 W | 65 dB(A) | 380 V | View |
| LWMFAF500-01 | 7,800 m³/h | 2,250 Pa | — | — | 91 dB(A) | 380 V | View |
| LWBA4D500-188NT-01 | 8,034 m³/h | 618 Pa | 1,350 rpm | 1,000 W | 79 dB(A) | 380 V | View |
| LWFA-E-500-01 | 8,380 m³/h | 850 Pa | — | — | 75 dB(A) | — | View |
| LWFA6D500-188NT-01 | 9,064 m³/h | 916.7 Pa | 900 rpm | 4,400 W | 75 dB(A) | 380 V | View |
| LWEA500TM-164E | 9,133 m³/h | 185 Pa | 1,450 rpm | 750 W | — | 380 V | View |
| LWBA4D500-188NT-05 | 9,377 m³/h | 872 Pa | 1,350 rpm | 1,300 W | 81.9 dB(A) | 380 V | View |
| LWBA4D500-188NT-02 | 9,785 m³/h | 773 Pa | 1,400 rpm | 1,500 W | 80 dB(A) | 380 V | View |
| LWFA-E-500-02 | 11,000 m³/h | 910 Pa | — | — | 82 dB(A) | — | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
Related products
Other models in the LWAA4E500 seriesSame impeller, different speed grade or wiring
Adjacent sizesOne size up when airflow is short, one size down when it is too much
LWA-500S(T)M-03EØ490 mm · 6,800 m³/h · 185 Pa · ACadjacent size

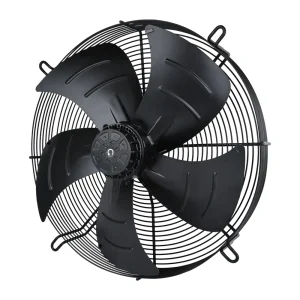

LWAA4E450S-5MEW-22Ø450 mm · 5,562 m³/h · ACadjacent size
LWAA4E550B-5MKB-09Ø550 mm · 8,034 m³/h · ACadjacent size
LWAA4D550S-5MKB-10Ø550 mm · 8,034 m³/h · 194 Pa · ACadjacent size
LWAA4D450S-5MEW-23Ø450 mm · 5,562 m³/h · ACadjacent size

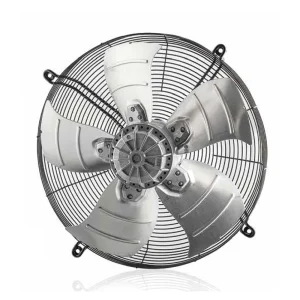

LWAA4D450S-5MEB-17Ø450 mm · 7,725 m³/h · ACadjacent sizeAlternatives at a similar dutySimilar airflow, different construction or motor platform
