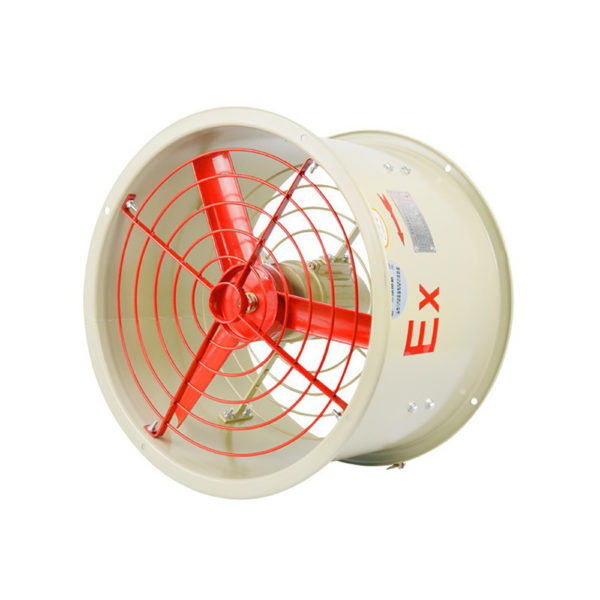

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ500 mm19.7 in
- Max airflow5,700 m³/h3,355 CFM
- Voltage220 V
- Speed1,450 rpm
- Input power550 W
LWEA500S(T)M-069E Tube Axial Fan Ø500 mm
Ø500 mm | AC | Max airflow 5,700 m³/h
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Dimensional drawing LWEA500S(T)M-069E
Files for LWEA500S(T)M-069E: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWEA500S(T)M-069E
LWEA500S(T)M-069E is a LONGWELL Tube Axial Fan from the Tube Axial Fans range, impeller Ø500 mm, rated 220 V AC, maximum airflow 5,700 m³/h, input power 550 W.
Technical data
| Model | LWEA500S(T)M-069E |
|---|---|
| Series | LWEA500 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 220 V |
| Input power | 550 W |
| Speed | 1,450 rpm |
| Max. airflow | 5,700 m³/h |
| Impeller diameter | Ø500 mm |
| Blade diameter | 500mm |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWEA500: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
