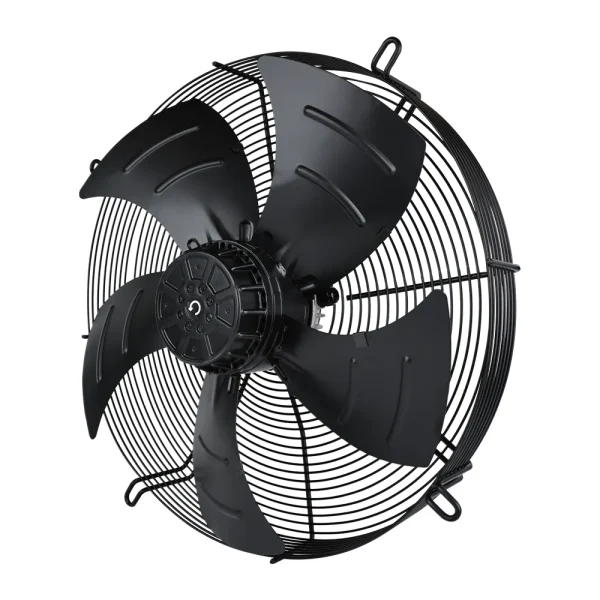

LWAA6D500S-5MEB-08 AC Axial Fan Ø500 mm

Ø500 mm | AC | Max airflow 4,944 m³/h | 66 dB(A)

SKU: LWAA6D500S-5MEB-08 Categories: , ,
  • Factory direct
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 18-month warranty
  • CE · ETL · RoHS
View RFQ →

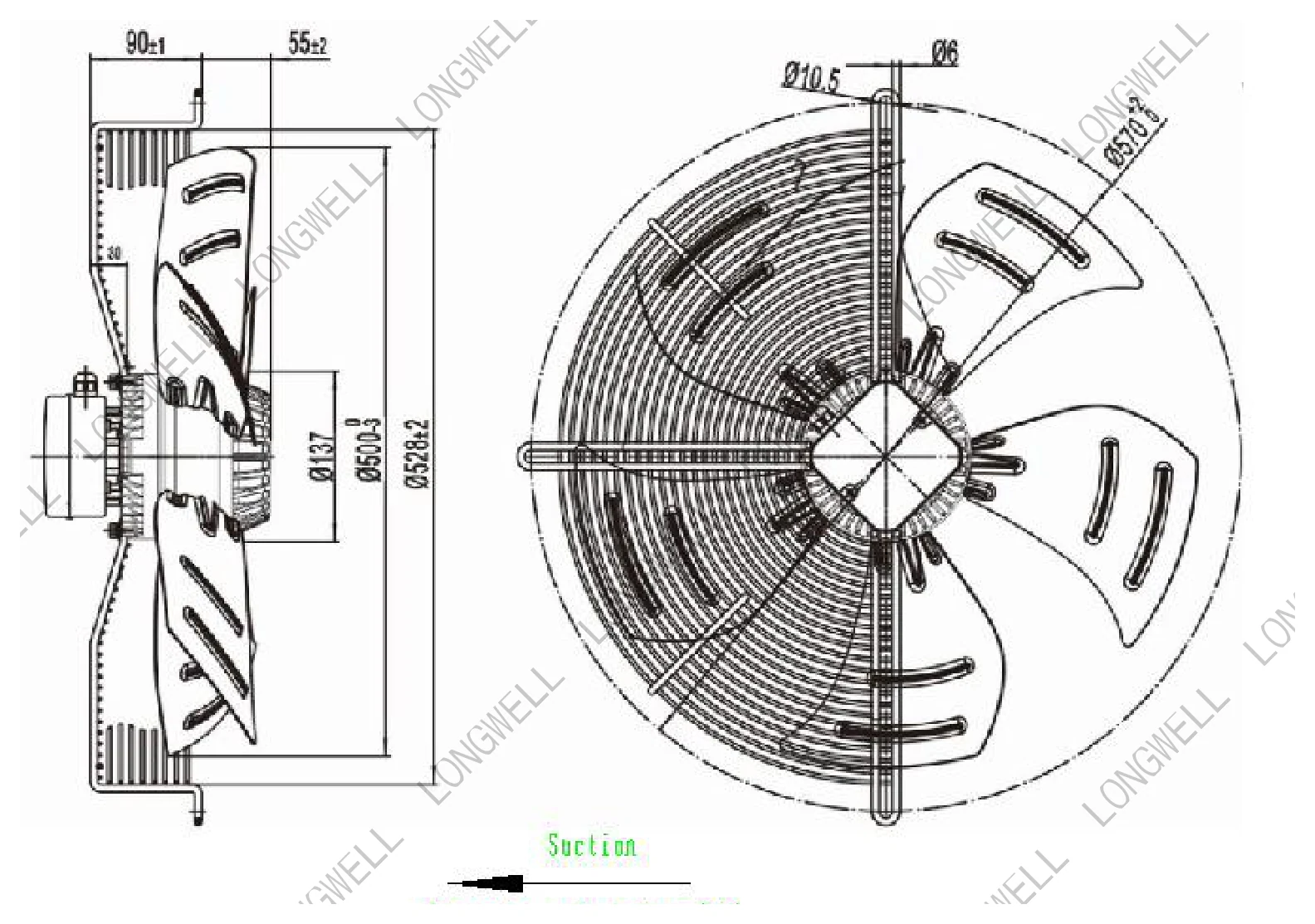

Dimensional drawingDimensions in mm. Confirm against the final approval drawing before machining cut-outs.
LWAA6D500S-5MEB-08 Dimensional drawing

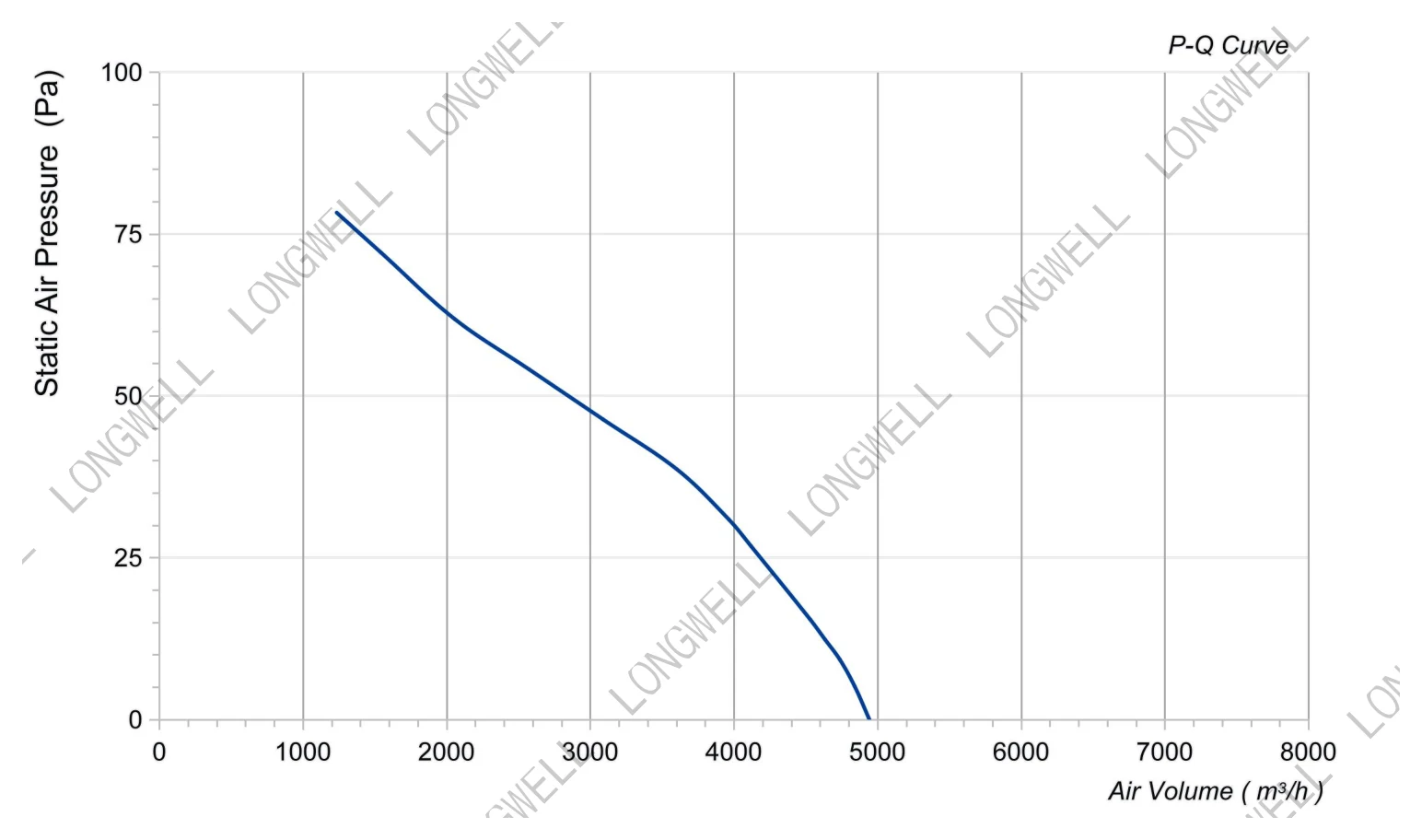

Performance curve (P-Q)Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.
LWAA6D500S-5MEB-08 Performance curve (P-Q)

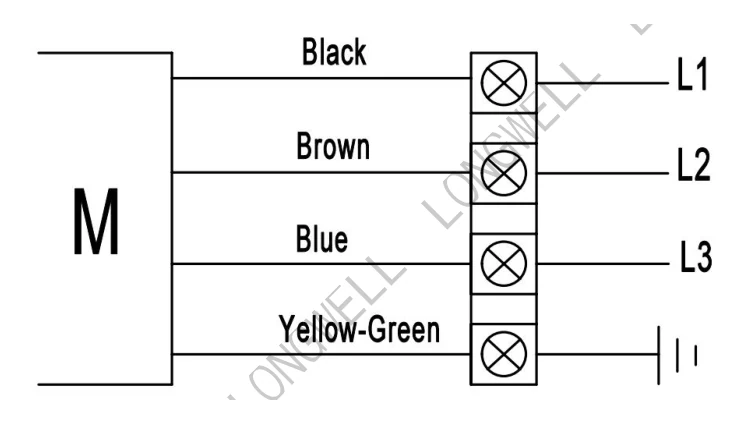

Wiring diagramLead colours and terminal assignment; TK = motor thermal contact.
LWAA6D500S-5MEB-08 Wiring diagram

Downloads for LWAA6D500S-5MEB-08

PDFDatasheet

Need a non-standard size or another format? Ask an engineer or search the download center.

LWAA6D500S-5MEB-08 is a LONGWELL AC Axial Fan from the AC Axial Fans range, impeller Ø500 mm, rated 380 V AC, maximum airflow 4,944 m³/h, noise 66 dB(A), input power 250 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.

Technical data

Model LWAA6D500S-5MEB-08
Series LWAA6D500
Motor type AC
Phase 3-phase
Rated voltage 380 V
Voltage range 342 ~ 418 V
Frequency 60 Hz
Current 0.65 A
Input power 250 W
Speed 1,100 rpm
Max. airflow 4,944 m³/h
Max. airflow (CFM) 2,908 CFM
Noise 66 dB(A)
Ambient temperature -30 ~ +60 ℃
Storage temperature -10 ~ 40℃
Humidity 0 ~ 90 % RH
Altitude < 1000m
Impeller diameter Ø500 mm
Impeller material Steel ( Impeller )
Protection class IP54
Insulation class F
Bearing Maintenance-free ball bearings
Duty S1
Balance grade G6.3
Vibration standard JB/T 8689
Service life 30,000Hours(L10), At 40 °Croom, humidity 15%~65%RH

Typical applications

  • Condensers, evaporators and dry coolers
  • Heat-pump and chiller outdoor units
  • Building and workshop ventilation
  • Cooling towers and transformer cooling

Series LWAA6D500: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø500 mm · AC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

ModelMax airflowMax static pressureSpeedPowerNoiseVoltage
LWAA6D500S-5MEB-08 this model 4,944 m³/hsee curve 1,100 rpm250 W66 dB(A)380 V
LWA-500(20")U(S)M-01 150 m³/hsee curve 1,350 rpm200 W—110-120 V View
LWA-500(20")U(S)M-02 165 m³/hsee curve 1,350 rpm250 W—110-120 V View
LWBA6D500-138NT-03 5,356 m³/h361 Pa 950 rpm450 W63 dB(A)380 V View
LWEA500S(T)M-069E 5,700 m³/hsee curve 1,450 rpm550 W—220 V View
LWEAF500-01 5,700 m³/hsee curve 1,450 rpm550 W—220 V View
LWBA6D500-138NT-04 5,817 m³/h412 Pa 1,050 rpm550 W65 dB(A)380 V View
LWMFAF500-01 7,800 m³/h2,250 Pa ——91 dB(A)380 V View
LWBA4D500-188NT-01 8,034 m³/h618 Pa 1,350 rpm1,000 W79 dB(A)380 V View
LWFA-E-500-01 8,380 m³/h850 Pa ——75 dB(A)— View
LWFA6D500-188NT-01 9,064 m³/h916.7 Pa 900 rpm4,400 W75 dB(A)380 V View
LWEA500TM-164E 9,133 m³/h185 Pa 1,450 rpm750 W—380 V View
LWBA4D500-188NT-05 9,377 m³/h872 Pa 1,350 rpm1,300 W81.9 dB(A)380 V View
LWBA4D500-188NT-02 9,785 m³/h773 Pa 1,400 rpm1,500 W80 dB(A)380 V View
LWFA-E-500-02 11,000 m³/h910 Pa ——82 dB(A)— View

Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
