Industrial Axial Fan dimensional drawing (shared by several models)

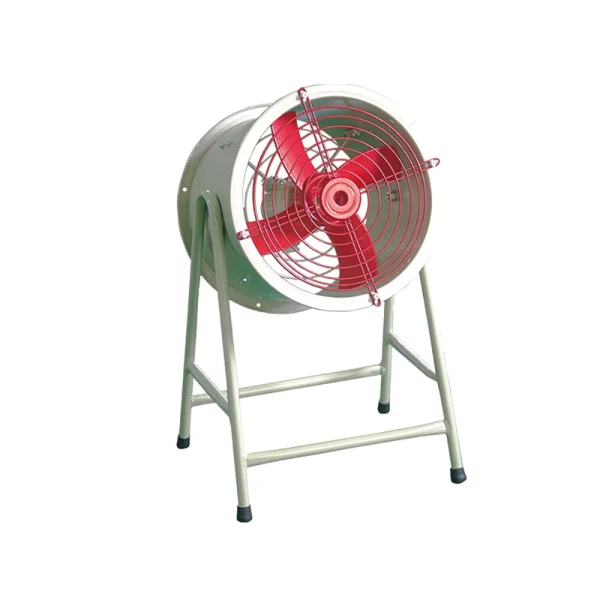

Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.

ImpellerØ710 mm28.0 in
Max airflow26,120 m³/h15,374 CFM
Max static pressure373 Pa1.50 in. wg
Voltage380 V
Speed1,450 rpm
Input power3,000 W4.02 hp

LWEA710TM-168E Industrial Axial Fan Ø710 mm

Ø710 mm | AC | Max airflow 26,120 m³/h | Max static pressure 373 Pa

SKU: LWEA710TM-168E Categories: Axial Fans, Impeller Ø400–1000 mm, Industrial Axial Fans

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFRequest datasheetsent by an engineer within 1 business day

All files for LWEA710TM-168E1 files · direct download

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Roof exhaust Cooling towers Harvest stores Industrial machinery All industries →

Proven in projects

Heat pump fan programme Telecom & power cabinet cooling Cold chain supermarket retrofit Dry-type transformer cooling All case studies →

Get a quote · LWEA710TM-168E

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWEA710TM-168Edatasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Catalogue table LWEA710TM-168E

LWEA710TM-168E Catalogue data table — **Catalogue data table**Series table from the catalogue — read the row for this model. Dimensions are given on the drawing of the same size.

Files for LWEA710TM-168E: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWEA710TM-168E

LWEA710TM-168E is a LONGWELL Industrial Axial Fan from the Industrial Axial Fans range, impeller Ø710 mm, rated 380 V AC, maximum airflow 26,120 m³/h, maximum static pressure 373 Pa, input power 3,000 W.

Technical data

Model	LWEA710TM-168E
Series	LWEA710
Motor type	AC
Phase	3-phase
Rated voltage	380 V
Input power	3,000 W
Speed	1,450 rpm
Max. airflow	26,120 m³/h
Max. static pressure	373 Pa
Impeller diameter	Ø710 mm
Blade diameter	710mm

Typical applications

Condensers, evaporators and dry coolers
Heat-pump and chiller outdoor units
Building and workshop ventilation
Cooling towers and transformer cooling

Series LWEA710: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
