Downloads for LWAA6E400S-5MEB-05
PDFDatasheetNeed a non-standard size or another format? Ask an engineer or search the download center.
- ImpellerØ400 mm15.7 in
- Max airflow2,678 m³/h1,576 CFM
- Voltage220/230 V
- Speed1,350 rpm
- Input power100 W
- Noise49 dB(A)

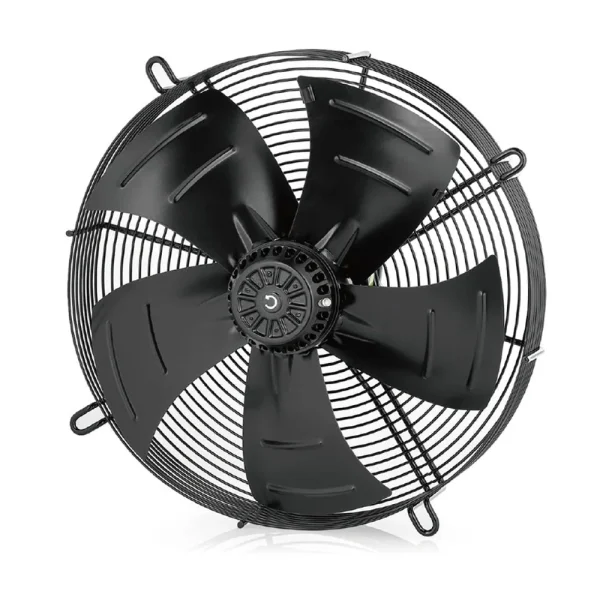

LWAA6E400S-5MEB-05 AC Axial Fan Ø400 mm
Ø400 mm | AC | Max airflow 2,678 m³/h | 49 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
LWAA6E400S-5MEB-05 is a LONGWELL AC Axial Fan from the AC Axial Fans range, impeller Ø400 mm, rated 220/230 V AC, maximum airflow 2,678 m³/h, noise 49 dB(A), input power 100 W. The fixed-speed AC external-rotor motor is simple, robust and cost-effective for constant-duty applications.
Technical data
| Model | LWAA6E400S-5MEB-05 |
|---|---|
| Series | LWAA6E400 |
| Motor type | AC |
| Phase | 1-phase |
| Rated voltage | 220/230 V |
| Voltage range | 198 ~ 242 V |
| Frequency | 50 Hz |
| Current | 0.5 A |
| Input power | 100 W |
| Speed | 1,350 rpm |
| Max. airflow | 2,678 m³/h |
| Noise | 49 dB(A) |
| Ambient temperature | -30 ~ +60 ℃ |
| Storage temperature | -40 ~ 80℃ |
| Humidity | 0 ~ 95 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø400 mm |
| Impeller material | Cold-rolled sheet ( Impeller ) |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T8689 |
| Service life | 30,000Hours(L10), At normal supply voltage , 20 °Croom with full speed, humidity 15%~65%RH |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWAA6E400: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

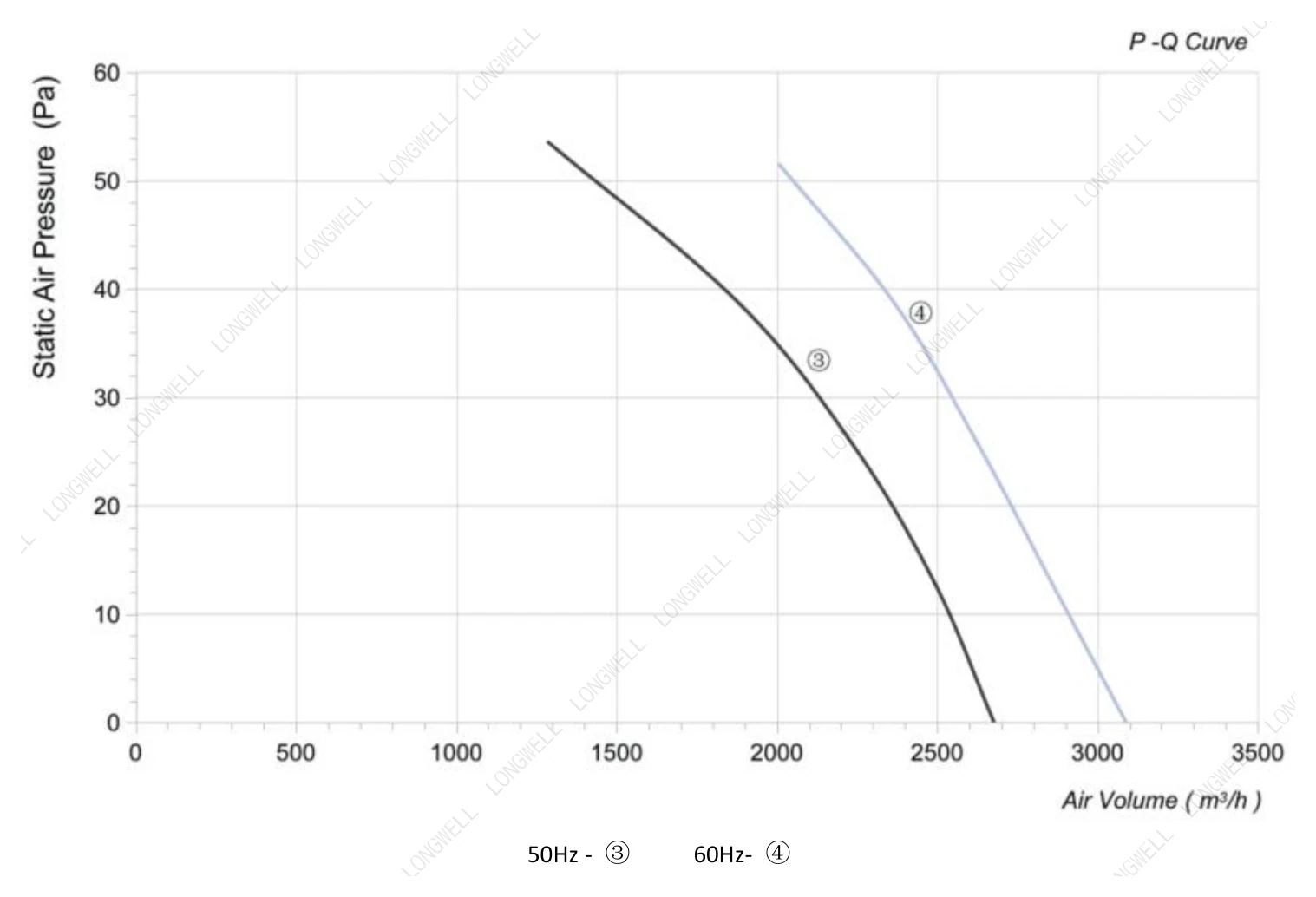

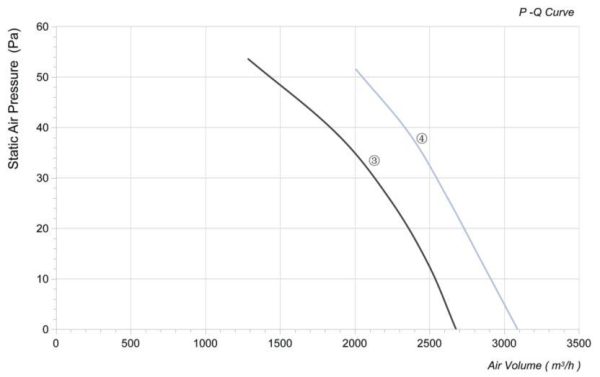

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø400 mm · AC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAA6E400S-5MEB-05 this model | 2,678 m³/h | see curve | 1,350 rpm | 100 W | 49 dB(A) | 220/230 V | |
| LWA-400(16")U(S)M-01 | 90 m³/h | see curve | 1,350 rpm | 170 W | — | 110-120 V | View |
| LWA-400(16")U(S)M-02 | 110 m³/h | see curve | 1,350 rpm | 200 W | — | 110-120 V | View |
| LWA-400(16")U(S)M-03 | 150 m³/h | see curve | 2,800 rpm | 750 W | — | 110-120 V | View |
| LWEA400S(T)M-068E | 2,280 m³/h | see curve | 1,450 rpm | 370 W | — | 220 V | View |
| LWEAF400-01 | 2,280 m³/h | see curve | 1,450 rpm | 370 W | — | 220 V | View |
| LWDA-400 (16")U-MWN-01 | 2,500 m³/h | see curve | 1,780 rpm | 440 W | 75 dB(A) | 110-120 V | View |
| LWFA-E-400-01 | 4,500 m³/h | 612 Pa | — | — | 68 dB(A) | — | View |
| LWEA400S(T)M-161E | 4,687 m³/h | 119 Pa | 1,450 rpm | 550 W | — | 220 V | View |
| LWMFAF400-01 | 5,100 m³/h | 1,390 Pa | — | — | 90 dB(A) | 380 V | View |
| LWFA-E-400-02 | 5,100 m³/h | 610 Pa | — | — | 70 dB(A) | — | View |
| LWMFAF400-02 | 5,400 m³/h | 1,700 Pa | — | — | 89 dB(A) | 380 V | View |
| LWDA-400 (16")S-MWN-02 | 7,100 m³/h | see curve | 2,940 rpm | 1,300 W | 83 dB(A) | 220-240 V | View |
| LWEA400S(T)M-162E | 9,336 m³/h | 474 Pa | 2,900 rpm | 1,100 W | — | 220 V | View |
| LWA-400(16")U(S)M-04 | 11,000 m³/h | 400 Pa | 2,800 rpm | 1,100 W | — | 110-120 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
