Frame size172 mm6.8 in
Max airflow498 m³/h293 CFM
Max static pressure269 Pa1.08 in. wg
Voltage12 V
Speed4,000 rpm
Input power42 W
Noise61.1 dB(A)

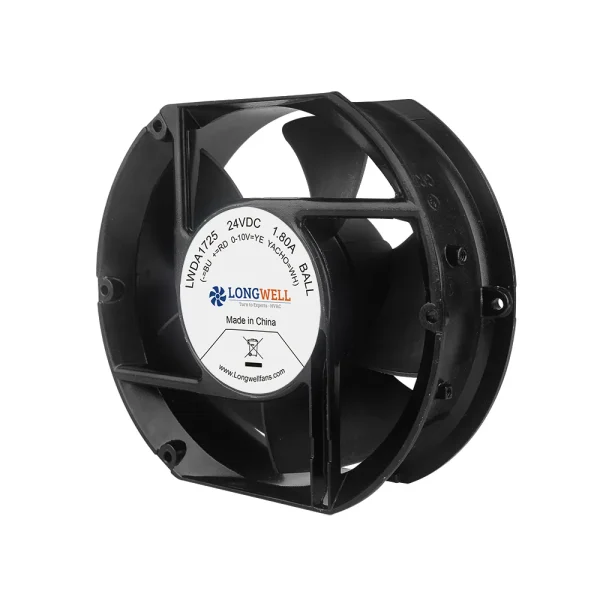

LWAD17251LX-02 DC Axial Cooling Fan 172 mm

172 mm | DC | Max airflow 498 m³/h | Max static pressure 269 Pa | 61.1 dB(A)

SKU: LWAD17251LX-02 Categories: Cooling Fans & Blowers, DC Axial Cooling Fans, Frame 120–200 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWAD17251LX-02

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com All files for LWAD17251LX-02drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

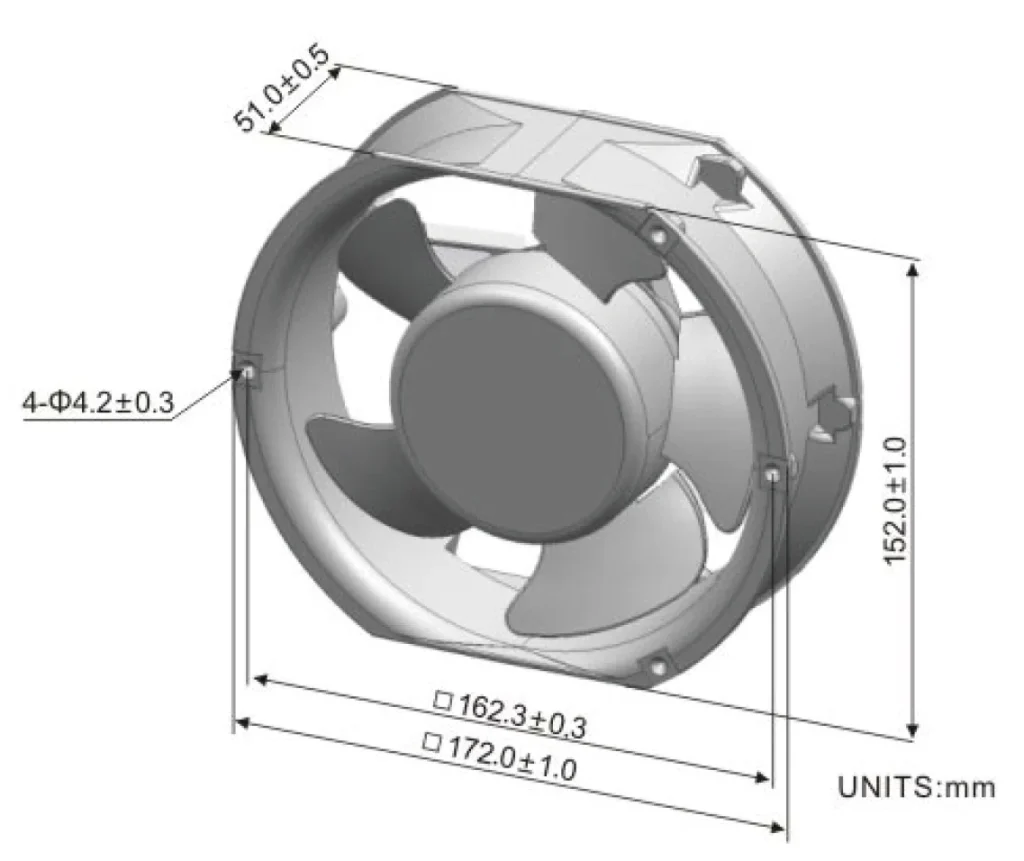

LWAD17251LX-02 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Need a non-standard size or another format? Ask an engineer or search the download center.

LWAD17251LX-02 is a LONGWELL DC Axial Cooling Fan from the DC Axial Cooling Fans range, frame size 172 mm, rated 12 V DC, maximum airflow 498 m³/h, maximum static pressure 269 Pa, noise 61.1 dB(A), input power 42 W. The low-voltage brushless DC motor suits battery-powered equipment and electronics cooling with speed control on demand.

Technical data

Model	LWAD17251LX-02
Series	LWAD17251
Motor type	DC
Rated voltage	12 V
Current	3.5 A
Input power	42 W
Speed	4,000 rpm
Max. airflow	498 m³/h
Max. static pressure	269 Pa
Noise	61.1 dB(A)
Frame size	172 mm
Dimensions	172x51mm
Impeller material	Plastic(UL94-VO)

Typical applications

Power supplies and inverters
Telecom and server cabinets
Battery packs and EV chargers
Medical and laboratory equipment

Series LWAD17251: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same frame size (172 mm · DC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWAD17251LX-02 this model	498 m³/h	269 Pa	4,000 rpm	42 W	61.1 dB(A)	12 V
LWAD17251HL-05	311.4 m³/h	105 Pa	2,500 rpm	28.8 W	50.9 dB(A)	48 V	View
LWAD17251HM-04	373.8 m³/h	151 Pa	3,000 rpm	48 W	54.9 dB(A)	48 V	View
LWAD17251HH-03	436.2 m³/h	206 Pa	3,500 rpm	57.6 W	58.2 dB(A)	48 V	View
LWAD17251HX-02	498 m³/h	269 Pa	4,000 rpm	76.8 W	61.1 dB(A)	48 V	View
LWAD17251HL-10	516.6 m³/h	248 Pa	4,000 rpm	28.8 W	66.2 dB(A)	48 V	View
LWAD17251ML-10	516.6 m³/h	248 Pa	4,000 rpm	36 W	66.2 dB(A)	24 V	View
LWAD17251HM-09	580.8 m³/h	314 Pa	4,500 rpm	48 W	68.8 dB(A)	48 V	View
LWAD17251MM-09	580.8 m³/h	314 Pa	4,500 rpm	48 W	68.8 dB(A)	24 V	View
LWAD17251HH-08	645.6 m³/h	387 Pa	5,000 rpm	57.6 W	71 dB(A)	48 V	View
LWAD17251MH-08	645.6 m³/h	387 Pa	5,000 rpm	60 W	71 dB(A)	24 V	View
LWAD17251HX-07	710.4 m³/h	469 Pa	5,500 rpm	76.8 W	73.1 dB(A)	48 V	View
LWAD17251MX-07	710.4 m³/h	469 Pa	5,500 rpm	84 W	73.1 dB(A)	24 V	View
LWAD17251HX-06	774.6 m³/h	558 Pa	6,000 rpm	96 W	75 dB(A)	48 V	View
LWAD17251MX-06	774.6 m³/h	558 Pa	6,000 rpm	108 W	75 dB(A)	24 V	View
