Downloads for LWAE17251SM-02
PDFDatasheetNeed a non-standard size or another format? Ask an engineer or search the download center.
- Frame size175 mm
- Max airflow205 m³/h
- Max static pressure133.89 Pa
- Voltage100-240 V
- Speed2,800 rpm
- Noise51 dB(A)

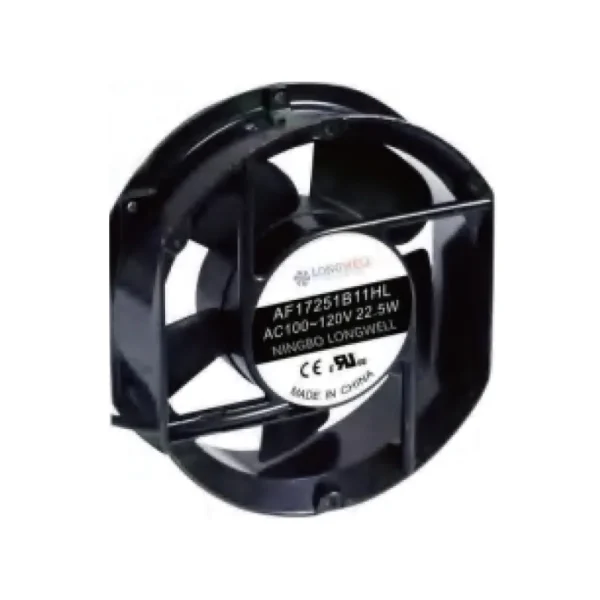

LWAE17251SM-02 EC Cooling Fan 175 mm
175 mm | EC | Max airflow 205 m³/h | Max static pressure 133.89 Pa | 51 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
LWAE17251SM-02 is a LONGWELL EC Cooling Fan from the EC Cooling Fans range, frame size 175 mm, rated 100-240 V EC, maximum airflow 205 m³/h, maximum static pressure 133.89 Pa, noise 51 dB(A). The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWAE17251SM-02 |
|---|---|
| Series | LWAE17251 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 100-240 V |
| Current | 0.17 A |
| Speed | 2,800 rpm |
| Max. airflow | 205 m³/h |
| Max. static pressure | 133.89 Pa |
| Noise | 51 dB(A) |
| Humidity | 5 % RH ~ 90% RH |
| Frame size | 175 mm |

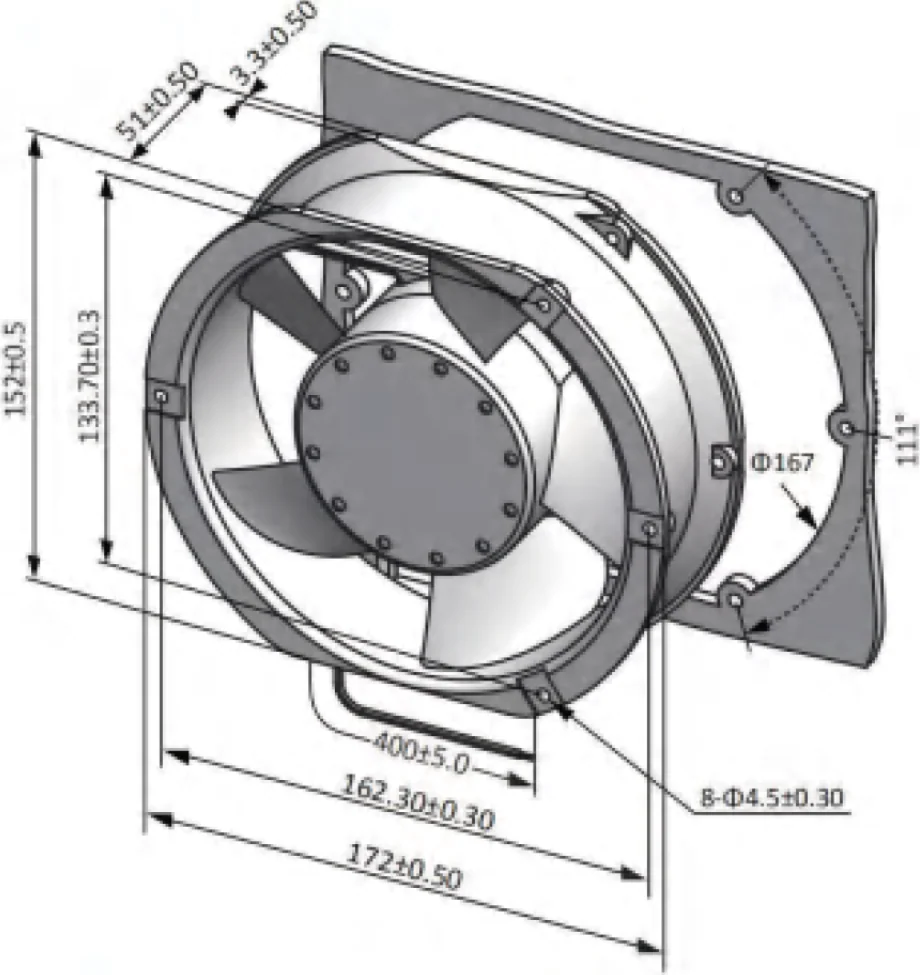

| Dimensions | 175x51mm |
| Bearing | Type : Two Ball Bearings |
Typical applications
- Power supplies and inverters
- Telecom and server cabinets
- Battery packs and EV chargers
- Medical and laboratory equipment
Series LWAE17251: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same frame size (175 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAE17251SM-02 this model | 205 m³/h | 133.89 Pa | 2,800 rpm | — | 51 dB(A) | 100-240 V | |
| LWFE3G175-072PS-01 | 535.6 m³/h | 453.2 Pa | 2,800 rpm | 55 W | 65 dB(A) | 230 V | View |
| LWBE3G175-072NU-16 | 535.6 m³/h | 453.2 Pa | 2,800 rpm | 55 W | 65 dB(A) | 115 V | View |
| LWFE3G175-072PS-05 | 700.4 m³/h | 875.5 Pa | 4,800 rpm | 155 W | 75 dB(A) | 230 V | View |
| LWFE3G175-072PS-03 | 700.4 m³/h | 803.4 Pa | 4,400 rpm | 115 W | 74 dB(A) | 230 V | View |
| LWBE3G175-072NU-18 | 700.4 m³/h | 803.4 Pa | 4,400 rpm | 115 W | 74 dB(A) | 115 V | View |
| LWBE3G175-072NS-09 | 700.4 m³/h | 875.5 Pa | 4,800 rpm | 155 W | 75 dB(A) | 230 V | View |
| LWBE3G175-072NS-08 | 700.4 m³/h | 803.4 Pa | 4,400 rpm | 115 W | 74 dB(A) | 230 V | View |
| LWFE3G175-072PS-02 | 741.6 m³/h | 535.6 Pa | 3,300 rpm | 85 W | 72 dB(A) | 230 V | View |
| LWBE3G175-072NU-17 | 741.6 m³/h | 535.6 Pa | 3,300 rpm | 85 W | 72 dB(A) | 115 V | View |
| LWFE3G175-072PS-04 | 911.55 m³/h | 875.5 Pa | 4,760 rpm | 170 W | 71 dB(A) | 230 V | View |
| LWBE3G175-072NU-19 | 911.55 m³/h | 875.5 Pa | 4,760 rpm | 170 W | 71 dB(A) | 115 V | View |
| LWBE3G175-072NS-07 | 911.55 m³/h | 875.5 Pa | 4,760 rpm | 170 W | 71 dB(A) | 230 V | View |
| LWBE3G175-072PS-10 | 924 m³/h | 893 Pa | 5,020 rpm | 132 W | 69 dB(A) | 230 V | View |
| LWBE3G175-072NS-10 | 924 m³/h | 893 Pa | 5,020 rpm | 132 W | 69 dB(A) | 230 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
