Frame size200 mm7.9 in
Max airflow1,141.8 m³/h672 CFM
Max static pressure241 Pa0.97 in. wg
Voltage24 V
Speed3,000 rpm
Input power84 W
Noise66 dB(A)

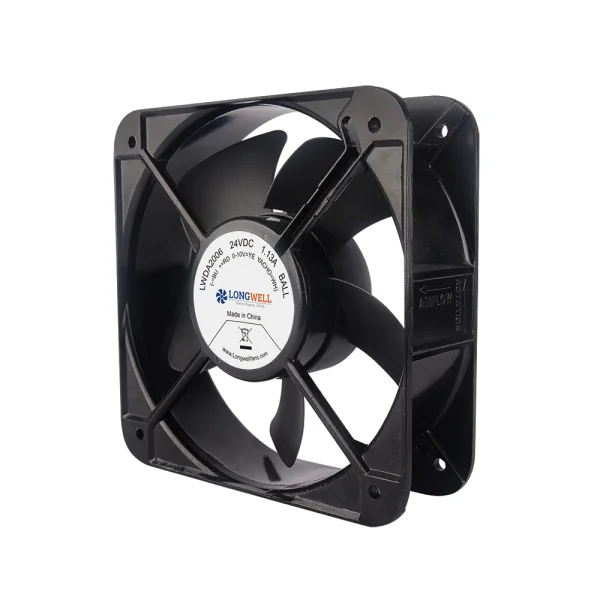

LWAD20060MH-01 DC Axial Cooling Fan 200 mm

200 mm | DC | Max airflow 1,141.8 m³/h | Max static pressure 241 Pa | 66 dB(A)

SKU: LWAD20060MH-01 Categories: Cooling Fans & Blowers, DC Axial Cooling Fans, Frame 120–200 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · RoHS · ETL on request

Get a quote · LWAD20060MH-01

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for LWAD20060MH-01drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

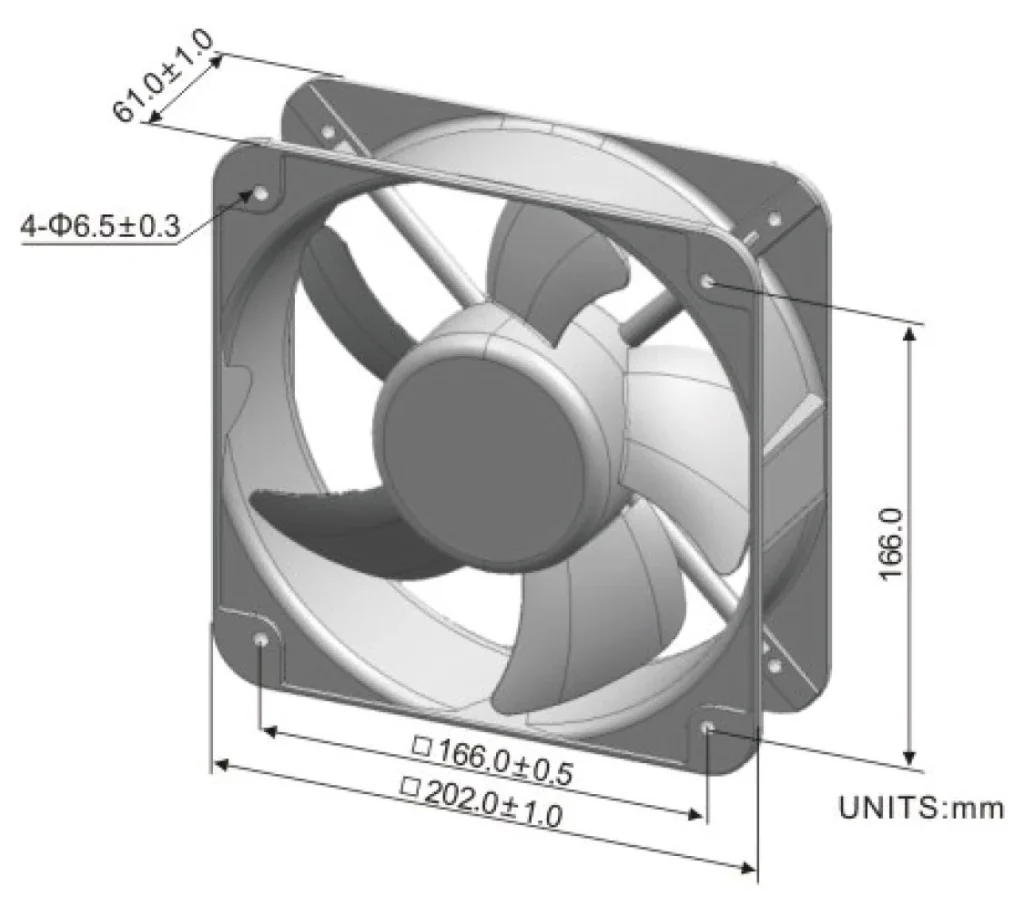

LWAD20060MH-01 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.
