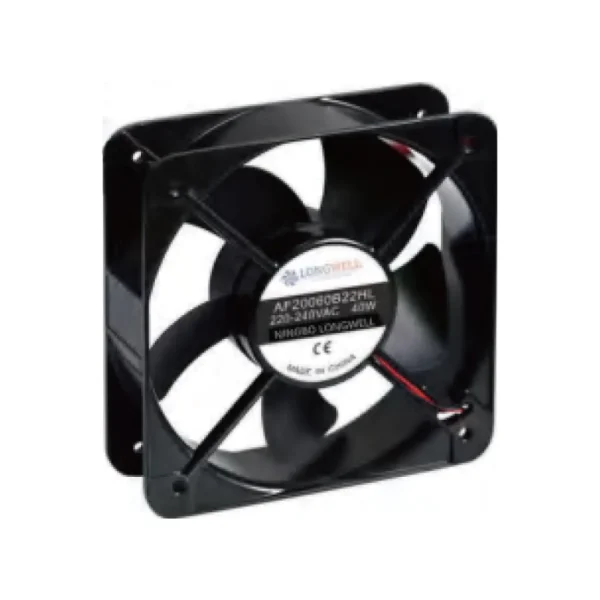

LWAE20060SL-03 product photo
  • Frame size200 mm
  • Max airflow303.51 m³/h
  • Max static pressure62.92 Pa
  • Voltage220 V
  • Speed1,600 rpm
  • Noise49.8 dB(A)

LWAE20060SL-03 EC Cooling Fan 200 mm

200 mm | EC | Max airflow 303.51 m³/h | Max static pressure 62.92 Pa | 49.8 dB(A)

SKU: LWAE20060SL-03 Categories: , ,
  • Factory direct
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 18-month warranty
  • CE · ETL · RoHS
View RFQ →

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

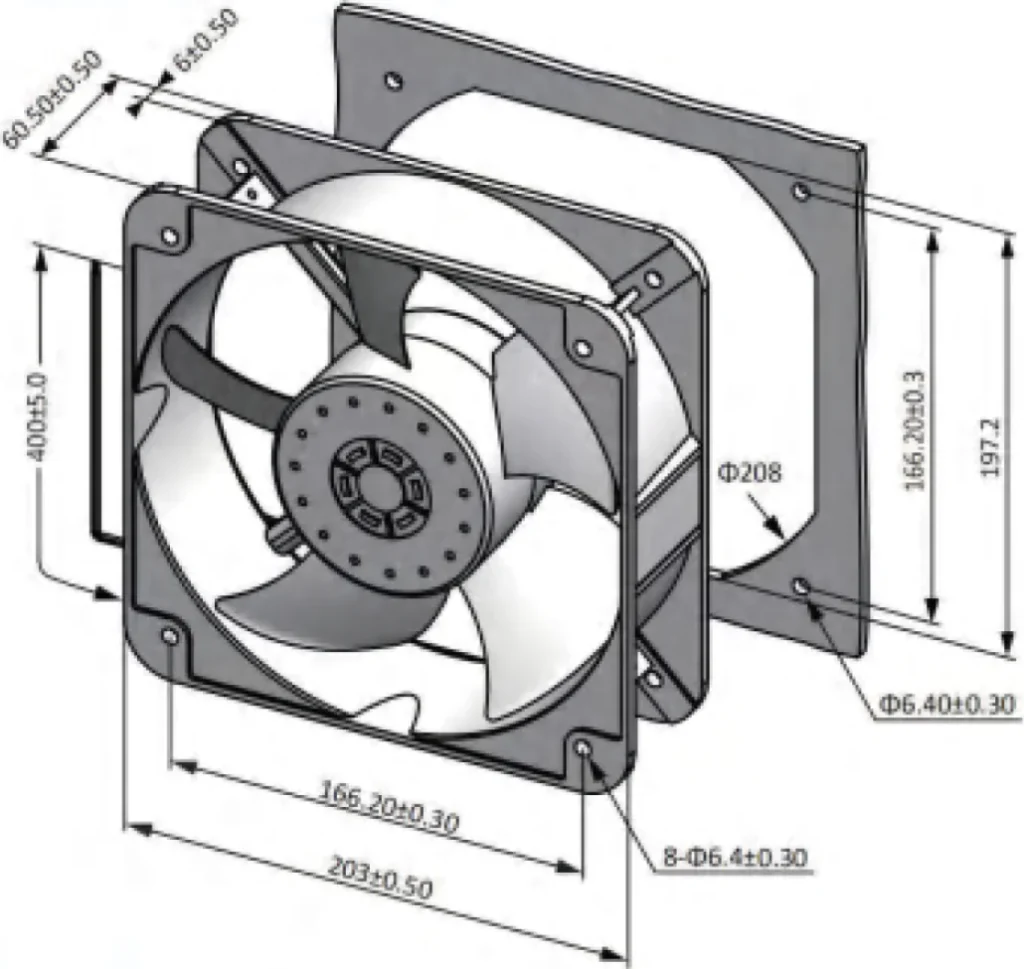

Dimensional drawingDimensions in mm. Confirm against the final approval drawing before machining cut-outs.
LWAE20060SL-03 Dimensional drawing

Downloads for LWAE20060SL-03

PDFDatasheet

Need a non-standard size or another format? Ask an engineer or search the download center.

LWAE20060SL-03 is a LONGWELL EC Cooling Fan from the EC Cooling Fans range, frame size 200 mm, rated 220 V EC, maximum airflow 303.51 m³/h, maximum static pressure 62.92 Pa, noise 49.8 dB(A). The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model LWAE20060SL-03
Series LWAE20060
Motor type EC
Phase 1-phase
Rated voltage 220 V
Current 0.09 A
Speed 1,600 rpm
Max. airflow 303.51 m³/h
Max. static pressure 62.92 Pa
Noise 49.8 dB(A)
Humidity 5 % RH ~ 90% RH
Frame size 200 mm
Dimensions 200x60mm
Bearing Type : Two Ball Bearings

Typical applications

  • Power supplies and inverters
  • Telecom and server cabinets
  • Battery packs and EV chargers
  • Medical and laboratory equipment

Series LWAE20060: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same frame size (200 mm · EC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

ModelMax airflowMax static pressureSpeedPowerNoiseVoltage
LWAE20060SL-03 this model 303.51 m³/h62.92 Pa 1,600 rpm—49.8 dB(A)220 V
LWAE20060SM-02 380.73 m³/h96.14 Pa 2,100 rpm—56.4 dB(A)220 V View
LWAE20060SH-01 474.97 m³/h143.08 Pa 2,600 rpm—61.7 dB(A)220 V View
LWDE-200 (8")U-MWN-01 700 m³/hsee curve 3,300 rpm140 W61 dB(A)110-120 V View
LWDE-200 (8")U-MWN-03 700 m³/hsee curve 3,300 rpm140 W59 dB(A)110-120 V View
LWAE3G200ST-5PGW-06 886 m³/hsee curve 2,600 rpm80 W54 dB(A)220 V View
LWAE3G200SS-5PGW-05 886 m³/hsee curve 2,600 rpm80 W54 dB(A)220 V View
LWAE3G200ST-5PEW-04 886 m³/hsee curve 2,600 rpm80 W54 dB(A)220 V View
LWAE3G200SS-5PEW-03 886 m³/hsee curve 2,600 rpm80 W54 dB(A)220 V View
LWDE-200S-MBN-09 1,210 m³/h1,030 Pa 2,700 rpm170 W71 dB(A)230 V View
LWDE-200 (8")S-MWN-02 1,310 m³/hsee curve 3,300 rpm140 W61 dB(A)220-240 V View
LWDE-200 (8")S-MWN-04 1,310 m³/hsee curve 3,300 rpm140 W59 dB(A)220-240 V View
LWFE3G200-102SS-01 1,638 m³/h700 Pa 1,800 rpm510 W73 dB(A)230 V View
LWFE3G200-102DS-01 2,060 m³/h1,030 Pa 1,150 rpm300 W64 dB(A)230 V View
LWFE3G200-102DS-02 2,575 m³/h464 Pa 1,300 rpm390 W66 dB(A)230 V View

Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
