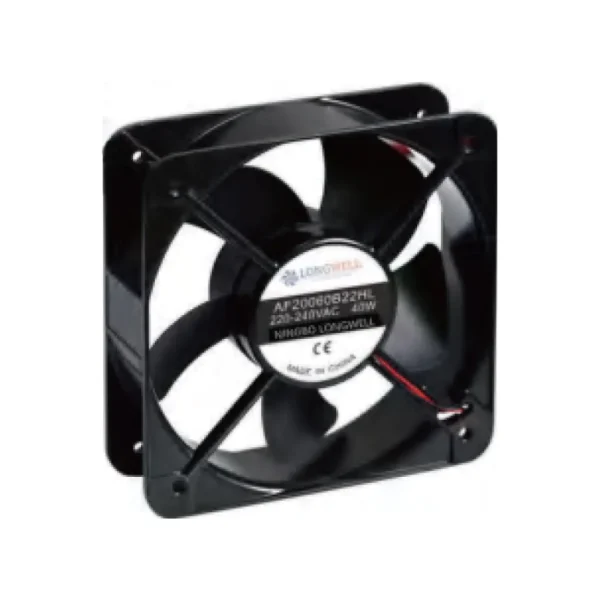

LWAE20060SH-01 product photo
  • Frame size200 mm
  • Max airflow474.97 m³/h
  • Max static pressure143.08 Pa
  • Voltage220 V
  • Speed2,600 rpm
  • Noise61.7 dB(A)

LWAE20060SH-01 EC Cooling Fan 200 mm

200 mm | EC | Max airflow 474.97 m³/h | Max static pressure 143.08 Pa | 61.7 dB(A)

SKU: LWAE20060SH-01 Categories: , ,
  • Factory direct
  • OEM / ODM
  • Samples in 1–3 days
  • Production 15–30 days
  • 18-month warranty
  • CE · ETL · RoHS
View RFQ →

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

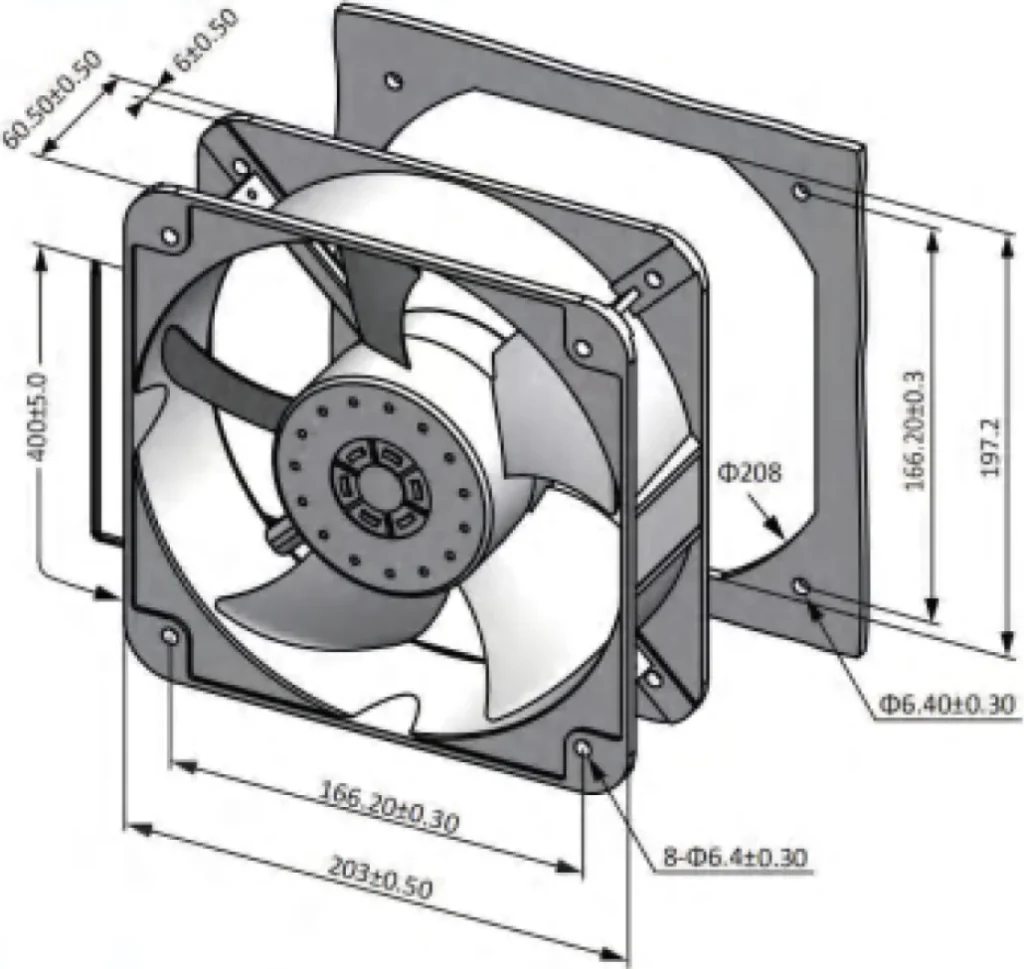

Dimensional drawingDimensions in mm. Confirm against the final approval drawing before machining cut-outs.
LWAE20060SH-01 Dimensional drawing

Downloads for LWAE20060SH-01

PDFDatasheet

Need a non-standard size or another format? Ask an engineer or search the download center.

LWAE20060SH-01 is a LONGWELL EC Cooling Fan from the EC Cooling Fans range, frame size 200 mm, rated 220 V EC, maximum airflow 474.97 m³/h, maximum static pressure 143.08 Pa, noise 61.7 dB(A). The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model LWAE20060SH-01
Series LWAE20060
Motor type EC
Phase 1-phase
Rated voltage 220 V
Current 0.32 A
Speed 2,600 rpm
Max. airflow 474.97 m³/h
Max. static pressure 143.08 Pa
Noise 61.7 dB(A)
Humidity 5 % RH ~ 90% RH
Frame size 200 mm
Dimensions 200x60mm
Bearing Type : Two Ball Bearings

Typical applications

  • Power supplies and inverters
  • Telecom and server cabinets
  • Battery packs and EV chargers
  • Medical and laboratory equipment

Series LWAE20060: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same frame size (200 mm · EC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

ModelMax airflowMax static pressureSpeedPowerNoiseVoltage
LWAE20060SH-01 this model 474.97 m³/h143.08 Pa 2,600 rpm—61.7 dB(A)220 V
LWAE20060SL-03 303.51 m³/h62.92 Pa 1,600 rpm—49.8 dB(A)220 V View
LWAE20060SM-02 380.73 m³/h96.14 Pa 2,100 rpm—56.4 dB(A)220 V View
LWDE-200 (8")U-MWN-01 700 m³/hsee curve 3,300 rpm140 W61 dB(A)110-120 V View
LWDE-200 (8")U-MWN-03 700 m³/hsee curve 3,300 rpm140 W59 dB(A)110-120 V View
LWAE3G200ST-5PGW-06 886 m³/hsee curve 2,600 rpm80 W54 dB(A)220 V View
LWAE3G200SS-5PGW-05 886 m³/hsee curve 2,600 rpm80 W54 dB(A)220 V View
LWAE3G200ST-5PEW-04 886 m³/hsee curve 2,600 rpm80 W54 dB(A)220 V View
LWAE3G200SS-5PEW-03 886 m³/hsee curve 2,600 rpm80 W54 dB(A)220 V View
LWDE-200S-MBN-09 1,210 m³/h1,030 Pa 2,700 rpm170 W71 dB(A)230 V View
LWDE-200 (8")S-MWN-02 1,310 m³/hsee curve 3,300 rpm140 W61 dB(A)220-240 V View
LWDE-200 (8")S-MWN-04 1,310 m³/hsee curve 3,300 rpm140 W59 dB(A)220-240 V View
LWFE3G200-102SS-01 1,638 m³/h700 Pa 1,800 rpm510 W73 dB(A)230 V View
LWFE3G200-102DS-01 2,060 m³/h1,030 Pa 1,150 rpm300 W64 dB(A)230 V View
LWFE3G200-102DS-02 2,575 m³/h464 Pa 1,300 rpm390 W66 dB(A)230 V View

Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.

Related products

Other models in the LWAE20060 seriesSame impeller, different speed grade or wiring

LWAE20060SM-02 product photoLWAE20060SM-02200 mm · 380.73 m³/h · 96.14 Pa · ECsame seriesLWAE20060SL-03 product photoLWAE20060SL-03200 mm · 303.51 m³/h · 62.92 Pa · ECsame series

Adjacent sizesOne size up when airflow is short, one size down when it is too much

LWAE17251SL-03 product photoLWAE17251SL-03175 mm · 183.34 m³/h · 108.55 Pa · ECadjacent sizeLWAE17251SH-01 product photoLWAE17251SH-01175 mm · 237.16 m³/h · 176.9 Pa · ECadjacent sizeLWAE17251SM-02 product photoLWAE17251SM-02175 mm · 205 m³/h · 133.89 Pa · ECadjacent sizeLWAD17251MX-02 product photoLWAD17251MX-02172 mm · 498 m³/h · 269 Pa · DCadjacent sizeLWAD17251MX-01 product photoLWAD17251MX-01172 mm · 560.4 m³/h · 340 Pa · DCadjacent sizeLWAD17251LL-05 product photoLWAD17251LL-05172 mm · 311.4 m³/h · 105 Pa · DCadjacent size

Alternatives at a similar dutySimilar airflow, different construction or motor platform

LWBE3G133-072NS-06 product photoLWBE3G133-072NS-06Ø133 mm · 473 m³/h · 609 Pa · ECsimilar dutyLWBE3G133-072PS-06 product photoLWBE3G133-072PS-06Ø133 mm · 473 m³/h · 609 Pa · ECsimilar dutyLWFA2E146-092DS-07 product photoLWFA2E146-092DS-07Ø146 mm · 479 m³/h · 391 Pa · ACsimilar dutyLONGWELL product videoLWBA2E190-072NS-01Ø190 mm · 483 m³/h · 357 Pa · ACsimilar dutyLWFE3G140-072NS-01 product photoLWFE3G140-072NS-01Ø140 mm · 484 m³/h · 216 Pa · ECsimilar dutyLONGWELL product videoLWCD-80350MN-06Ø80 mm · 465 m³/h · 39 Pa · DCsimilar duty

See all Cooling Fans & Blowers  ·  select by duty point
