Frame size200 mm7.9 in
Max airflow647 m³/h380.73 CFM
Max static pressure96.14 Pa0.39 in. wg
Voltage220 V
Speed2,100 rpm
Noise56.4 dB(A)

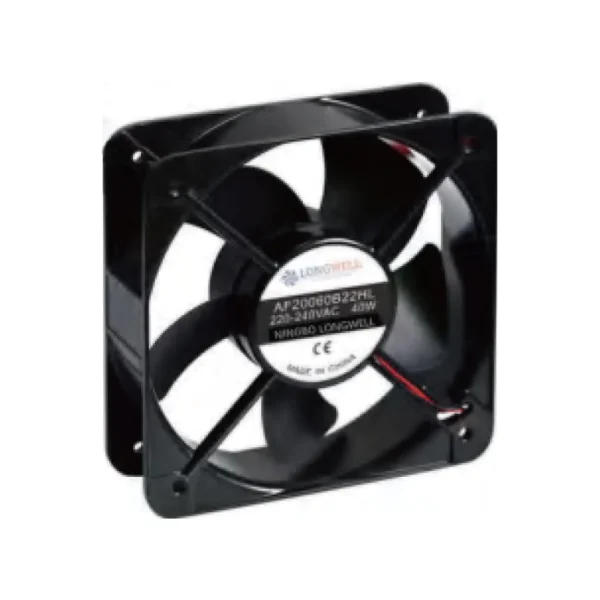

LWAE20060SM-02 EC Cooling Fan 200 mm

200 mm | EC | Max airflow 380.73 m³/h | Max static pressure 96.14 Pa | 56.4 dB(A)

SKU: LWAE20060SM-02 Categories: Cooling Fans & Blowers, EC Cooling Fans, Impeller Ø120–254 mm

Direct from LONGWELL
OEM / ODM
Samples in 1–3 days
Production 15–30 days
12-month warranty
CE · RoHS · ETL on request

PDFRequest datasheetsent by an engineer within 1 business day

All files for LWAE20060SM-021 files · direct download

CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center

Used in

Server cooling Automation cabinets Data-center cooling Drive & control cabinets All industries →

Proven in projects

350 kW charger cabinet cooling BESS container thermal Wind, solar & inverter cooling All case studies →

Get a quote · LWAE20060SM-02

Price, curve check and lead time within 1 business day.

Used for this quotation and technical support. If you accept optional measurement, hashed contact details may also help measure advertising. Privacy notice.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Files for LWAE20060SM-02datasheet · catalogue · drawings · curves — listed above

Samples 1–3 days · fee credited to your order
Typically 50–200 pcs · ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
Released to LONGWELL standards · 12-month warranty
How ordering works →

Performance curve (P-Q) LWAE20060SM-02

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 220 V). Data version: catalogue curve re-digitised 2026-09-20 (axis-calibrated, cross-checked). The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

Dimensional drawing LWAE20060SM-02

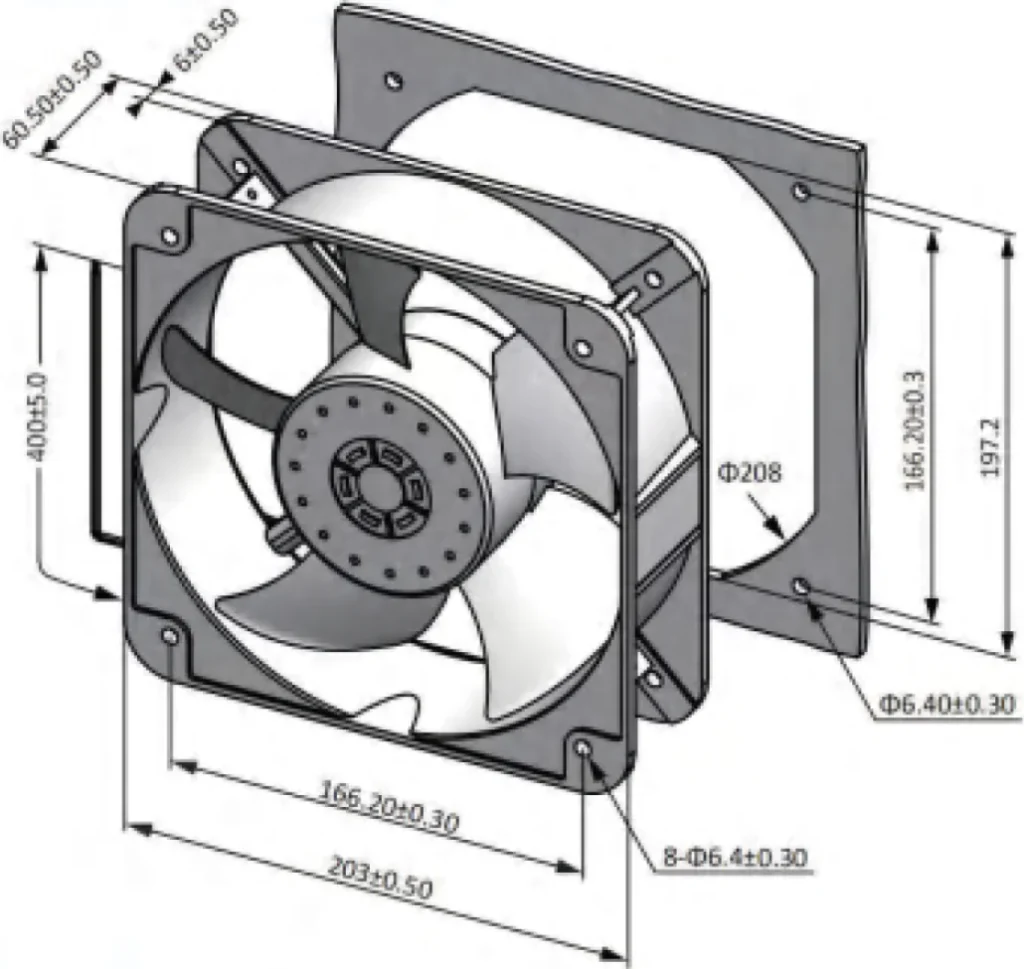

LWAE20060SM-02 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

Files for LWAE20060SM-02: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.

Technical description LWAE20060SM-02

LWAE20060SM-02 is a LONGWELL EC Cooling Fan from the EC Cooling Fans range, frame size 200 mm, rated 220 V EC, maximum airflow 380.73 m³/h, maximum static pressure 96.14 Pa, noise 56.4 dB(A). The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWAE20060SM-02
Series	LWAE20060
Motor type	EC
Phase	1-phase
Rated voltage	220 V
Current	0.16 A
Speed	2,100 rpm
Max. airflow	647 m³/h
Max. airflow (CFM)	380.73 CFM
Max. static pressure	96.14 Pa
Noise	56.4 dB(A)
Frame size	200 mm
Dimensions	200x60mm

Typical applications

Power supplies and inverters
Telecom and server cabinets
Battery packs and EV chargers
Medical and laboratory equipment

Series LWAE20060: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
