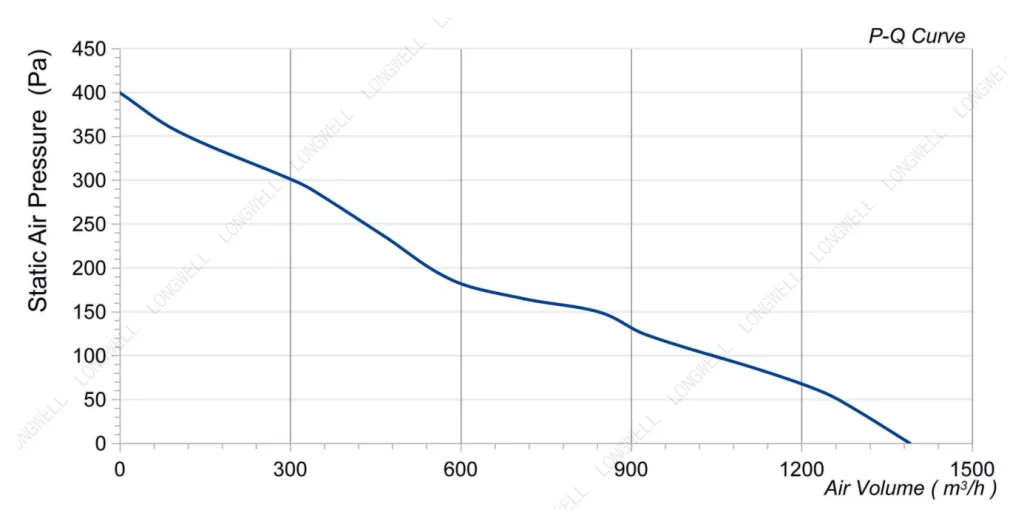

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ200 mm7.9 in
- Max airflow1,391 m³/h819 CFM
- Max static pressure395 Pa1.59 in. wg
- Voltage220/230 V
- Speed3,600 rpm
- Input power115 W
- Noise64 dB(A)

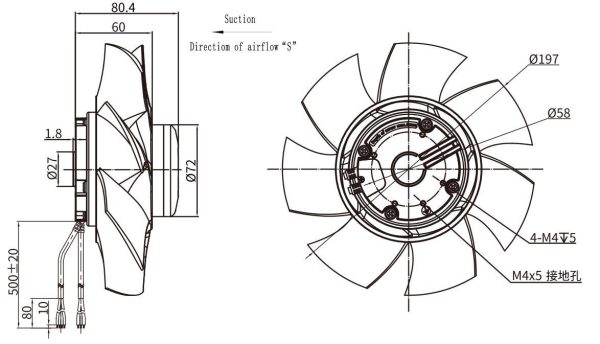

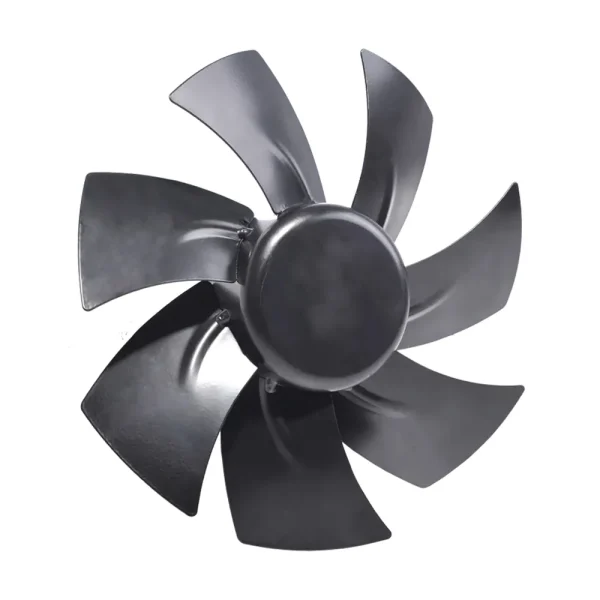

LWAE3G200SS-7PNW-15 EC Axial Fan Ø200 mm
Ø200 mm | EC | Max airflow 1,391 m³/h | Max static pressure 395 Pa | 64 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Downloads for LWAE3G200SS-7PNW-15
PDFDatasheetNeed a non-standard size or another format? Ask an engineer or search the download center.

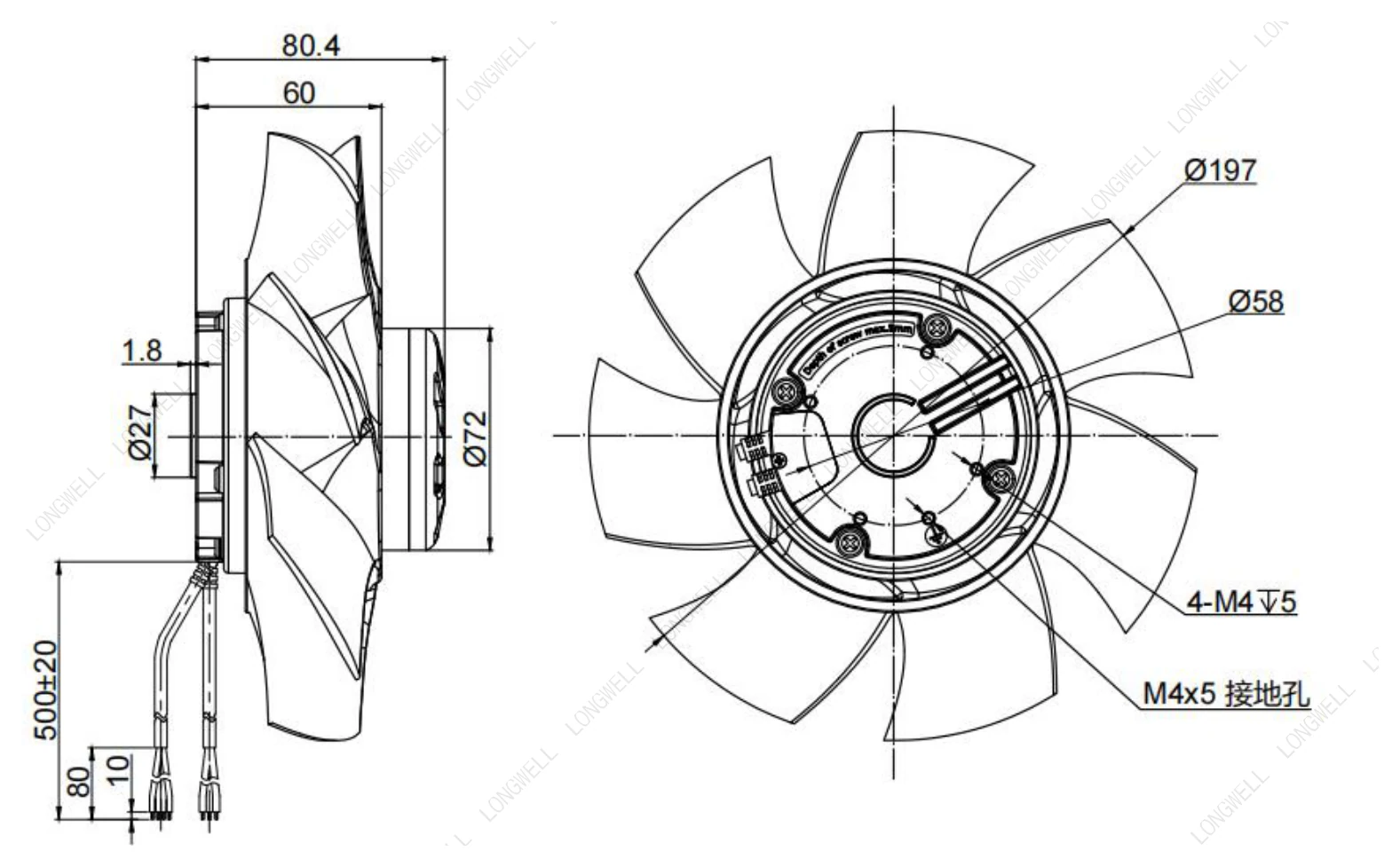

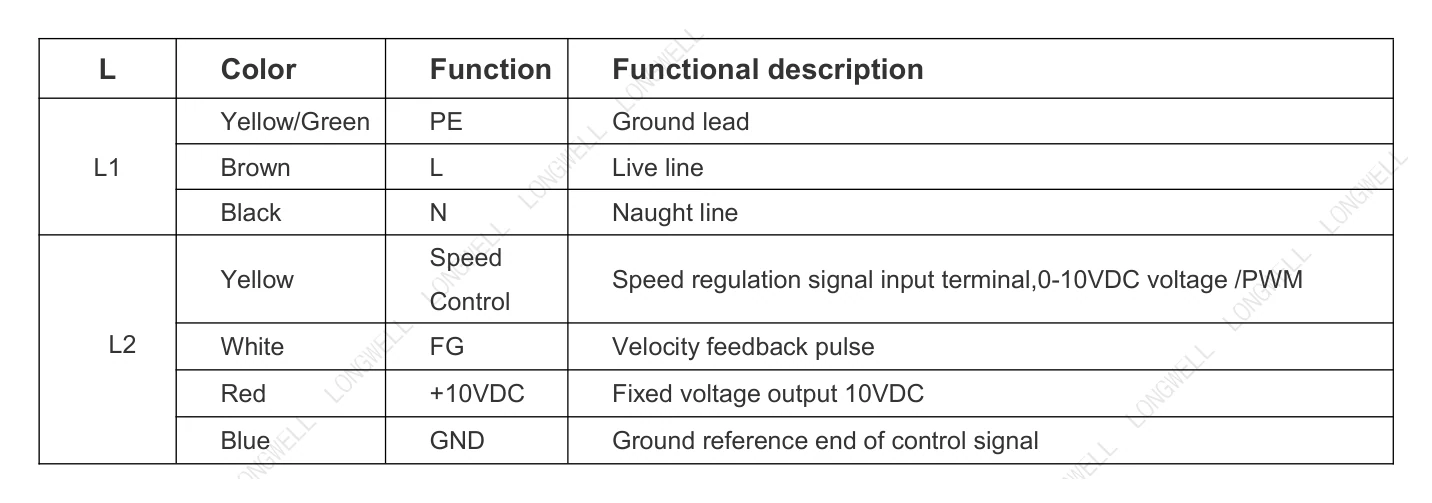

LWAE3G200SS-7PNW-15 is a LONGWELL EC Axial Fan from the EC Axial Fans range, impeller Ø200 mm, rated 220/230 V EC, maximum airflow 1,391 m³/h, maximum static pressure 395 Pa, noise 64 dB(A), input power 115 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWAE3G200SS-7PNW-15 |
|---|---|
| Series | LWAE3G200 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 220/230 V |
| Voltage range | 176 ~ 264 V |
| Frequency | 50 Hz |
| Current | 0.85 A |
| Input power | 115 W |
| Speed | 3,600 rpm |
| Max. airflow | 1,391 m³/h |
| Max. airflow (CFM) | 818 CFM |
| Max. static pressure | 395 Pa |
| Noise | 64 dB(A) |
| Ambient temperature | -25 ~ +60 ℃ |
| Storage temperature | -40 ~ 80℃ |
| Humidity | 5 ~ 95 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø200 mm |
| Impeller material | Sheet steel ( Impeller ) |
| Protection class | IP55 |
| Insulation class | B |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 30,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWAE3G200: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø200 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAE3G200SS-7PNW-15 this model | 1,391 m³/h | 395 Pa | 3,600 rpm | 115 W | 64 dB(A) | 220/230 V | |
| LWAE20060SL-03 | 303.51 m³/h | 62.92 Pa | 1,600 rpm | — | 49.8 dB(A) | 220 V | View |
| LWAE20060SM-02 | 380.73 m³/h | 96.14 Pa | 2,100 rpm | — | 56.4 dB(A) | 220 V | View |
| LWDE-200 (8")U-MWN-01 | 700 m³/h | see curve | 3,300 rpm | 140 W | 61 dB(A) | 110-120 V | View |
| LWDE-200 (8")U-MWN-03 | 700 m³/h | see curve | 3,300 rpm | 140 W | 59 dB(A) | 110-120 V | View |
| LWAE3G200ST-5PGW-06 | 886 m³/h | see curve | 2,600 rpm | 80 W | 54 dB(A) | 220 V | View |
| LWAE3G200SS-5PGW-05 | 886 m³/h | see curve | 2,600 rpm | 80 W | 54 dB(A) | 220 V | View |
| LWAE3G200ST-5PEW-04 | 886 m³/h | see curve | 2,600 rpm | 80 W | 54 dB(A) | 220 V | View |
| LWAE3G200SS-5PEW-03 | 886 m³/h | see curve | 2,600 rpm | 80 W | 54 dB(A) | 220 V | View |
| LWDE-200S-MBN-09 | 1,210 m³/h | 1,030 Pa | 2,700 rpm | 170 W | 71 dB(A) | 230 V | View |
| LWDE-200 (8")S-MWN-02 | 1,310 m³/h | see curve | 3,300 rpm | 140 W | 61 dB(A) | 220-240 V | View |
| LWDE-200 (8")S-MWN-04 | 1,310 m³/h | see curve | 3,300 rpm | 140 W | 59 dB(A) | 220-240 V | View |
| LWFE3G200-102SS-01 | 1,638 m³/h | 700 Pa | 1,800 rpm | 510 W | 73 dB(A) | 230 V | View |
| LWFE3G200-102DS-01 | 2,060 m³/h | 1,030 Pa | 1,150 rpm | 300 W | 64 dB(A) | 230 V | View |
| LWFE3G200-102DS-02 | 2,575 m³/h | 464 Pa | 1,300 rpm | 390 W | 66 dB(A) | 230 V | View |
