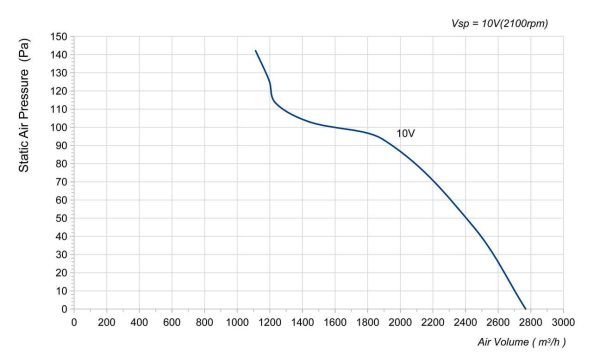

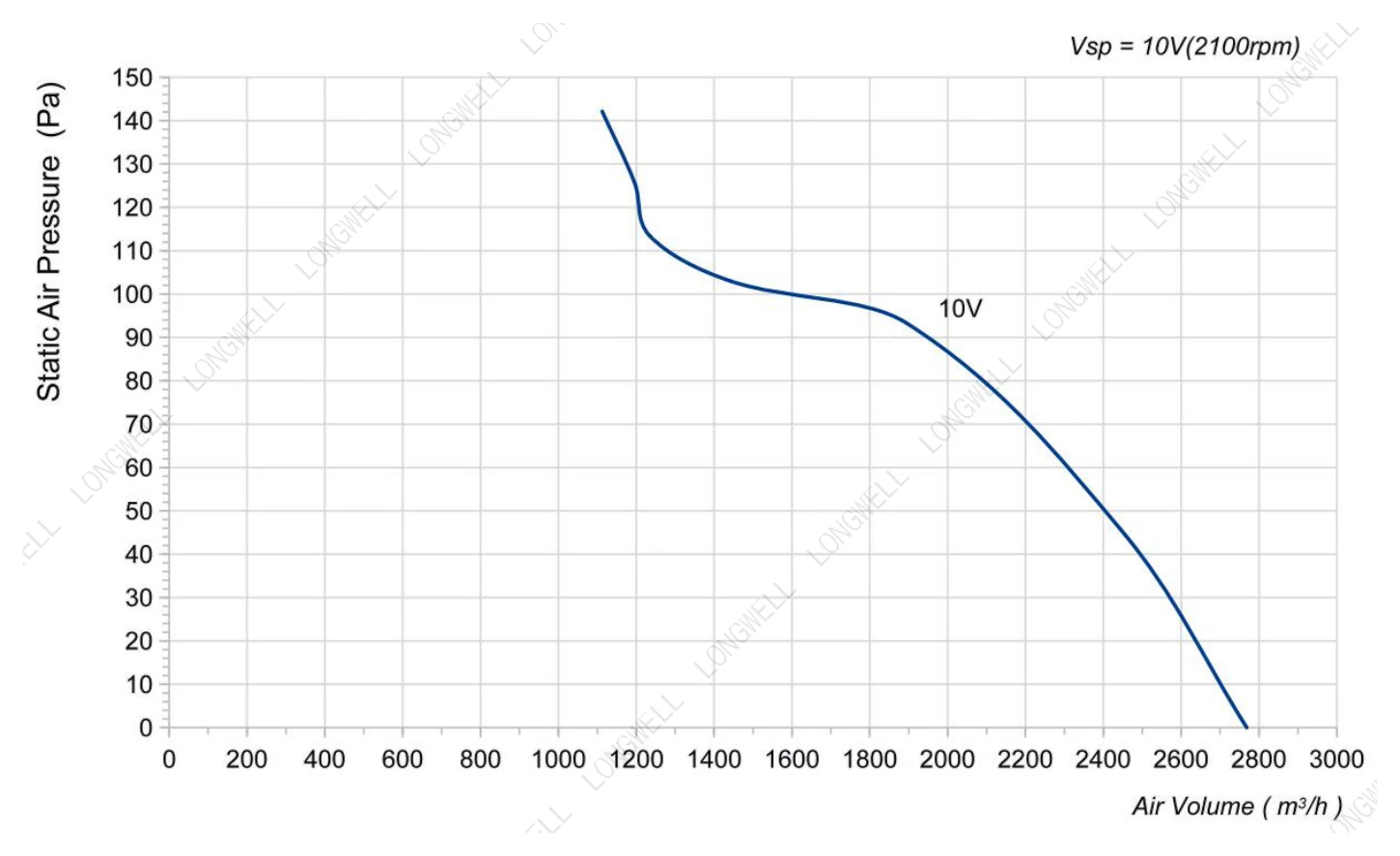

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ300 mm
- Max airflow2,781 m³/h
- Max static pressure141 Pa
- Voltage230 V
- Speed2,100 rpm
- Input power126 W
- Noise65 dB(A)

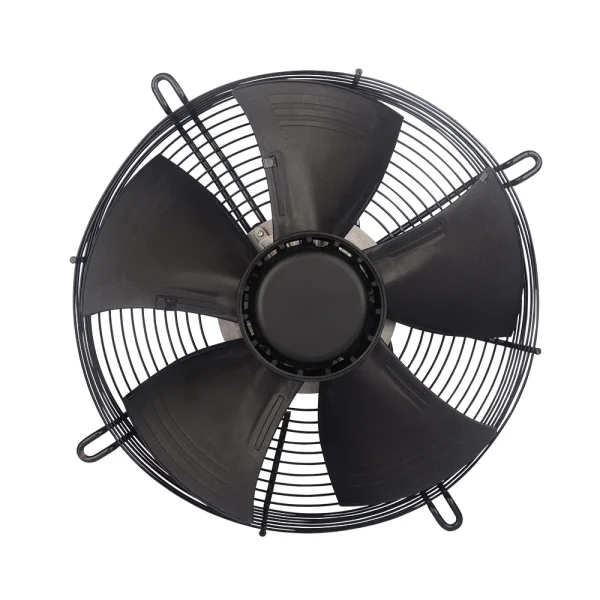

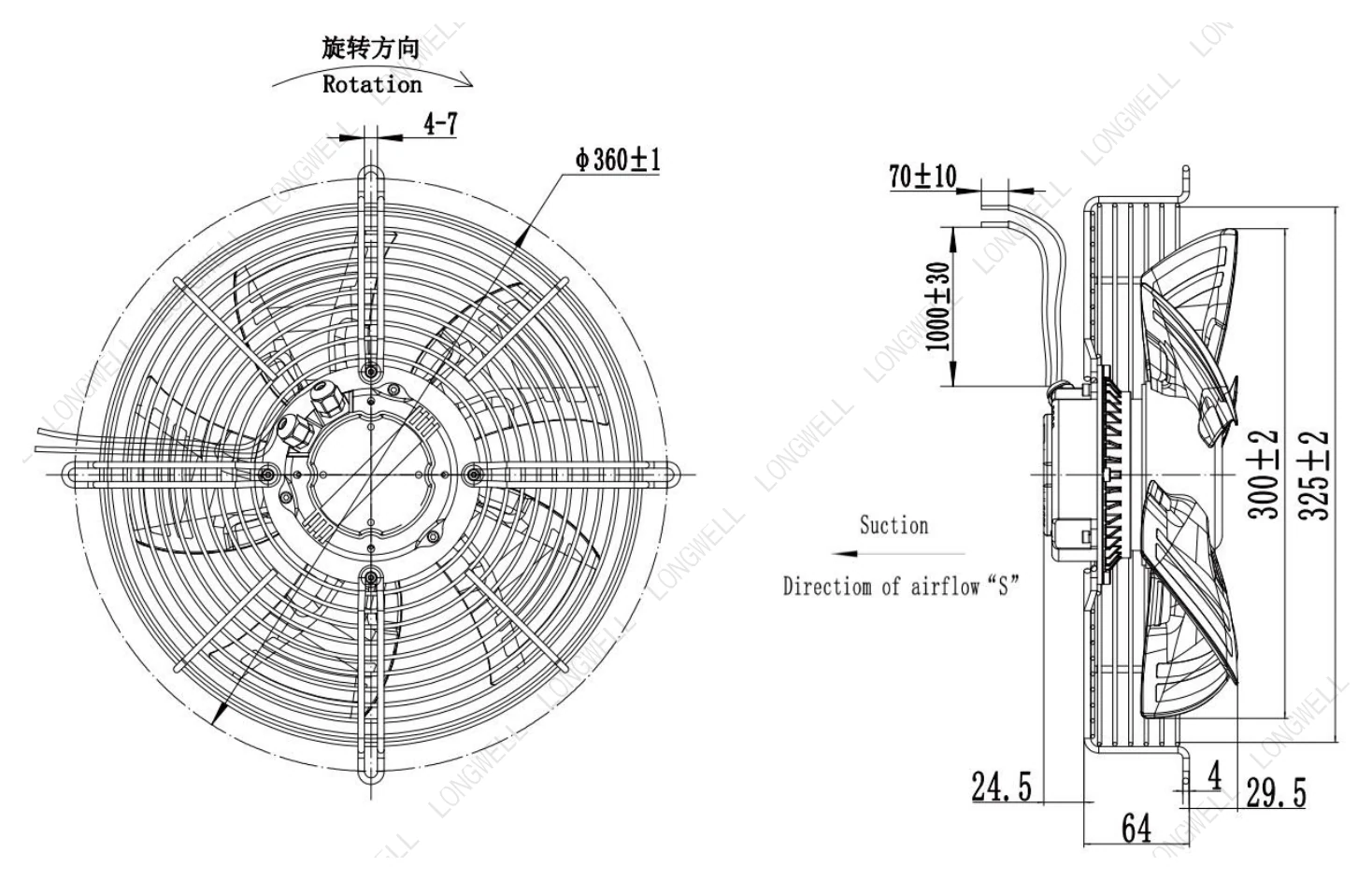

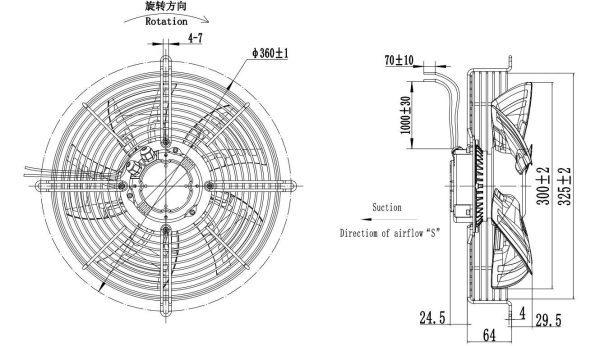

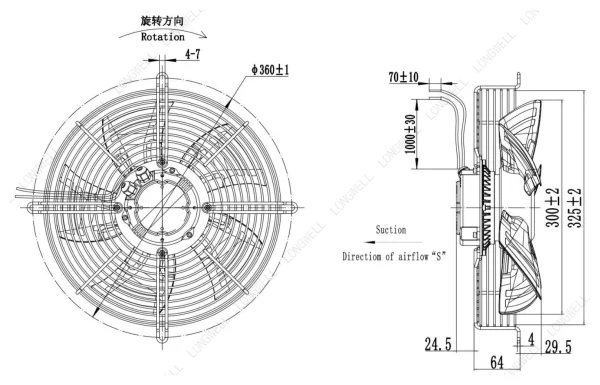

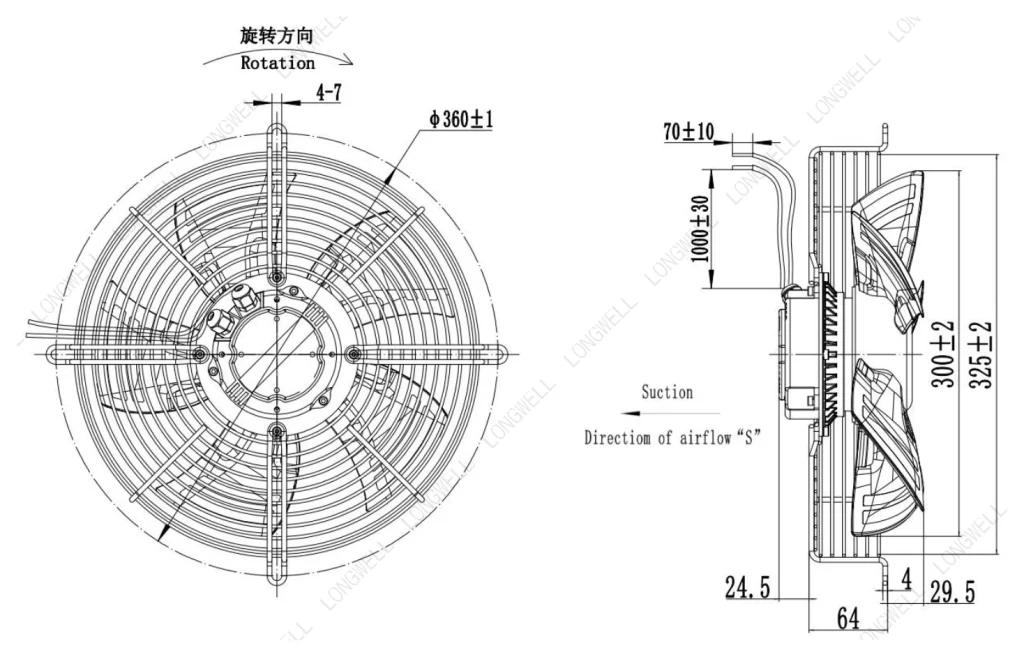

LWAE3G300SS-5PEW-09 EC Axial Fan Ø300 mm
Ø300 mm | EC | Max airflow 2,781 m³/h | Max static pressure 141 Pa | 65 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Downloads for LWAE3G300SS-5PEW-09
PDFDatasheetNeed a non-standard size or another format? Ask an engineer or search the download center.

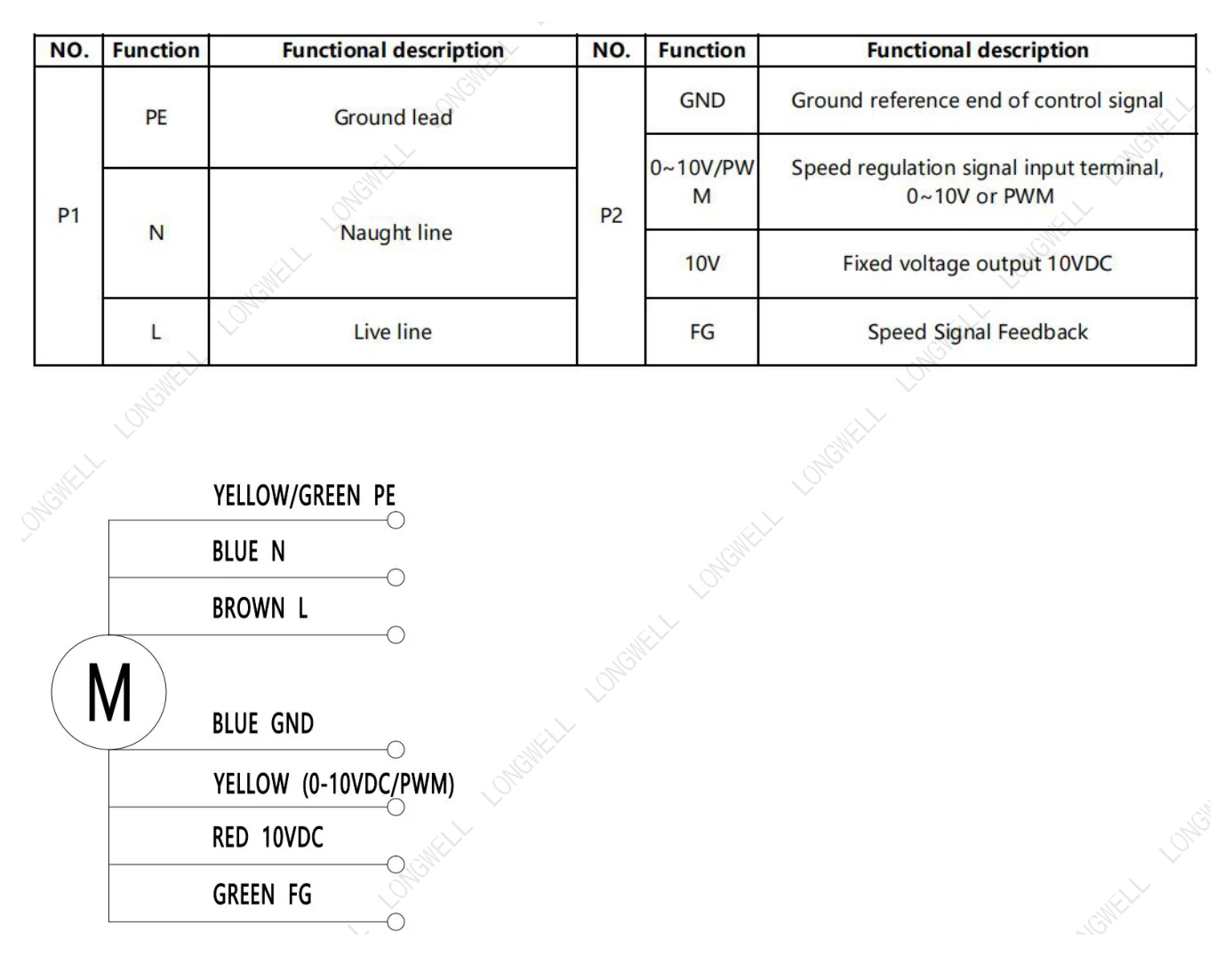

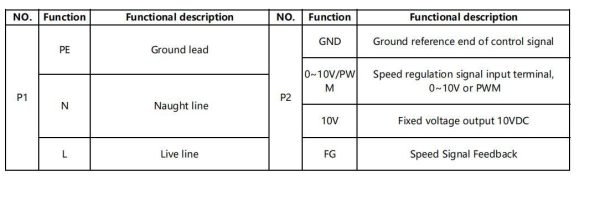

LWAE3G300SS-5PEW-09 is a LONGWELL EC Axial Fan from the EC Axial Fans range, impeller Ø300 mm, rated 230 V EC, maximum airflow 2,781 m³/h, maximum static pressure 141 Pa, noise 65 dB(A), input power 126 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWAE3G300SS-5PEW-09 |
|---|---|
| Series | LWAE3G300 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Voltage range | 207 ~ 277 V |
| Frequency | 50 Hz |
| Current | 0.87 A |
| Input power | 126 W |
| Speed | 2,100 rpm |
| Max. airflow | 2,781 m³/h |
| Max. static pressure | 141 Pa |
| Noise | 65 dB(A) |
| Ambient temperature | -25 ~ +60 ℃ |
| Storage temperature | -25 ~ 70℃ |
| Humidity | 0 ~ 85 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø300 mm |
| Impeller material | PA66 ( Impeller ) |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T8689 |
| Service life | 40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWAE3G300: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø300 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAE3G300SS-5PEW-09 this model | 2,781 m³/h | 141 Pa | 2,100 rpm | 126 W | 65 dB(A) | 230 V | |
| LWAE3G300ST-5MEW-08 | 1,751 m³/h | 228 Pa | 1,600 rpm | 90 W | 59 dB(A) | 220/230 V | View |
| LWDE-300 (12")U-MWN-01 | 1,763 m³/h | see curve | 3,200 rpm | 352 W | 74 dB(A) | 110-120 V | View |
| LWDE-300 (12")U-MWN-03 | 1,763 m³/h | see curve | 3,200 rpm | 352 W | 70 dB(A) | 110-120 V | View |
| LWAE3G300ST-5PNW-11 | 1,906 m³/h | 118 Pa | 1,600 rpm | 100 W | 54 dB(A) | 220/230 V | View |
| LWAE3G300ST-5PGW-15 | 1,906 m³/h | 118 Pa | 1,600 rpm | 100 W | 54 dB(A) | 220/230 V | View |
| LWAE3G300ST-5PEW-13 | 1,906 m³/h | 118 Pa | 1,600 rpm | 100 W | 54 dB(A) | 220/230 V | View |
| LWAE3G300SS-5PNW-10 | 1,906 m³/h | 118 Pa | 1,600 rpm | 100 W | 54 dB(A) | 220/230 V | View |
| LWAE3G300SS-5PGW-14 | 1,906 m³/h | 118 Pa | 1,600 rpm | 100 W | 54 dB(A) | 220/230 V | View |
| LWAE3G300ST-5PNW-02 | 2,575 m³/h | 168 Pa | 2,100 rpm | 165 W | 64 dB(A) | 220/230 V | View |
| LWAE3G300ST-5PGW-06 | 2,575 m³/h | 168 Pa | 2,100 rpm | 165 W | 64 dB(A) | 220/230 V | View |
| LWAE3G300ST-5PEW-04 | 2,575 m³/h | 168 Pa | 2,100 rpm | 165 W | 64 dB(A) | 220/230 V | View |
| LWAE3G300SS-5PNW-01 | 2,575 m³/h | 168 Pa | 2,100 rpm | 165 W | 64 dB(A) | 220/230 V | View |
| LWDE-300 (12")S-MWN-02 | 3,500 m³/h | see curve | 3,200 rpm | 352 W | 74 dB(A) | 220-240 V | View |
| LWDE-300 (12")S-MWN-04 | 3,500 m³/h | see curve | 3,200 rpm | 352 W | 70 dB(A) | 220-240 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
