ImpellerØ350 mm13.8 in
Max airflow2,884 m³/h1,697 CFM
Max static pressure150 Pa0.60 in. wg
Voltage220/230 V
Speed1,600 rpm
Input power150 W
Noise66 dB(A)

LWAE3G350SS-5MEW-07 EC Axial Fan Ø350 mm

Ø350 mm | EC | Max airflow 2,884 m³/h | Max static pressure 150 Pa | 66 dB(A)

SKU: LWAE3G350SS-5MEW-07 Categories: Axial Fans, EC Axial Fans, Impeller Ø300–450 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · RoHS · ETL on request

Get a quote · LWAE3G350SS-5MEW-07

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for LWAE3G350SS-5MEW-07drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Required airflow Required static pressure

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.

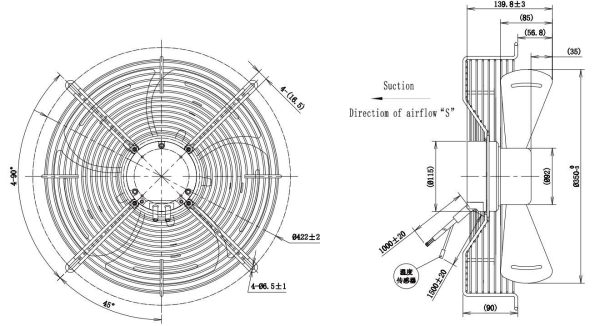

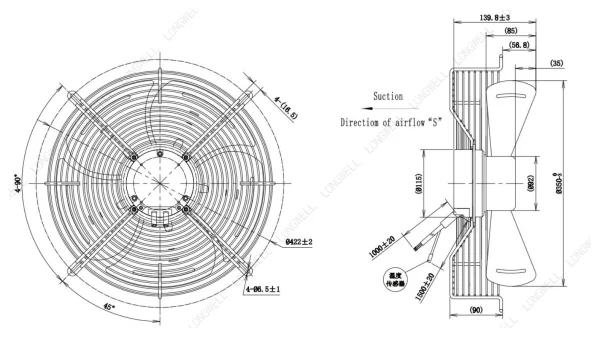

LWAE3G350SS-5MEW-07 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

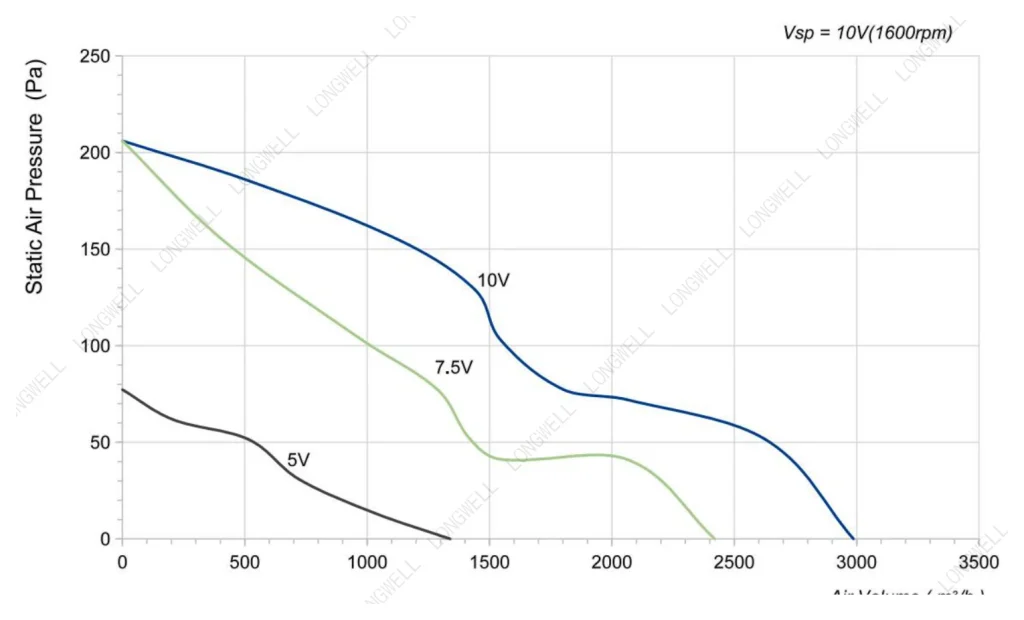

LWAE3G350SS-5MEW-07 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

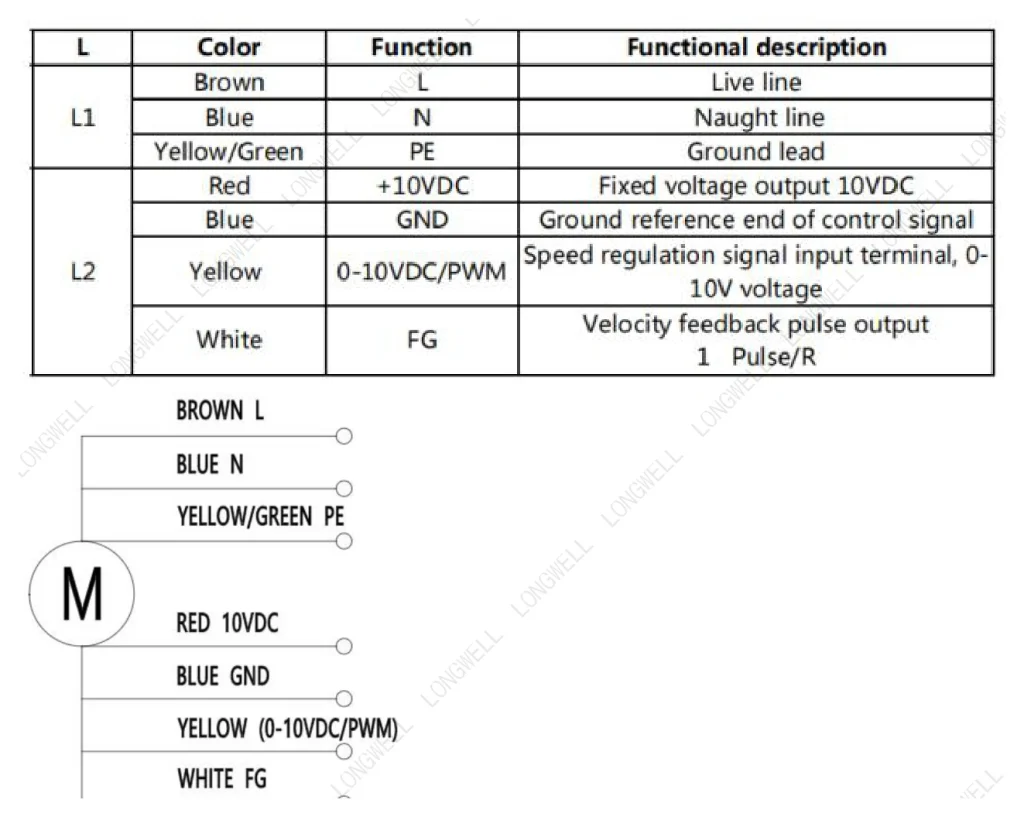

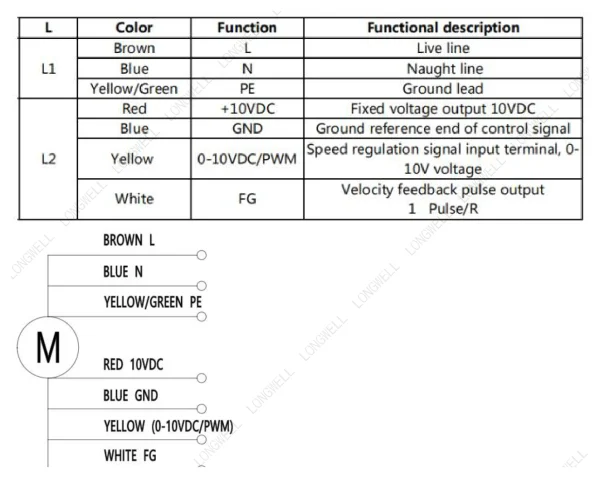

LWAE3G350SS-5MEW-07 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Downloads for LWAE3G350SS-5MEW-07

PDFDatasheet

Need a non-standard size or another format? Ask an engineer or search the download center.

LWAE3G350SS-5MEW-07 is a LONGWELL EC Axial Fan from the EC Axial Fans range, impeller Ø350 mm, rated 220/230 V EC, maximum airflow 2,884 m³/h, maximum static pressure 150 Pa, noise 66 dB(A), input power 150 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWAE3G350SS-5MEW-07
Series	LWAE3G350
Motor type	EC
Phase	1-phase
Rated voltage	220/230 V
Voltage range	176 ~ 264 V
Frequency	50 Hz
Current	1 A
Input power	150 W
Speed	1,600 rpm
Max. airflow	2,884 m³/h
Max. static pressure	150 Pa
Noise	66 dB(A)
Ambient temperature	-25 ~ +60 ℃
Storage temperature	-25 ~ 70℃
Humidity	0 ~ 85 % RH
Altitude	< 1000m
Impeller diameter	Ø350 mm
Impeller material	Sheet steel ( Impeller )
Protection class	IP54
Insulation class	B
Bearing	Maintenance-free ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T8689
Service life	40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH

Typical applications

Condensers, evaporators and dry coolers
Heat-pump and chiller outdoor units
Building and workshop ventilation
Cooling towers and transformer cooling

Series LWAE3G350: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø350 mm · EC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWAE3G350SS-5MEW-07 this model	2,884 m³/h	150 Pa	1,600 rpm	150 W	66 dB(A)	220/230 V
LWAE3G350ST-5MEW-08	2,884 m³/h	150 Pa	1,600 rpm	150 W	66 dB(A)	220/230 V	View
LWAE3G350ST-5PNW-02	3,451 m³/h	128 Pa	1,800 rpm	175 W	65 dB(A)	220/230 V	View
LWAE3G350ST-5PGW-06	3,451 m³/h	128 Pa	1,800 rpm	175 W	65 dB(A)	220/230 V	View
LWAE3G350ST-5PEW-04	3,451 m³/h	128 Pa	1,800 rpm	175 W	65 dB(A)	220/230 V	View
LWAE3G350SS-5PNW-01	3,451 m³/h	128 Pa	1,800 rpm	175 W	65 dB(A)	220/230 V	View
LWAE3G350SS-5PGW-05	3,451 m³/h	128 Pa	1,800 rpm	175 W	65 dB(A)	220/230 V	View
LWAE3G350SS-5PEW-03	3,451 m³/h	128 Pa	1,800 rpm	175 W	65 dB(A)	220/230 V	View
LWAE3G350SS-5PEW-09	3,554 m³/h	144 Pa	1,600 rpm	164 W	62 dB(A)	230 V	View
