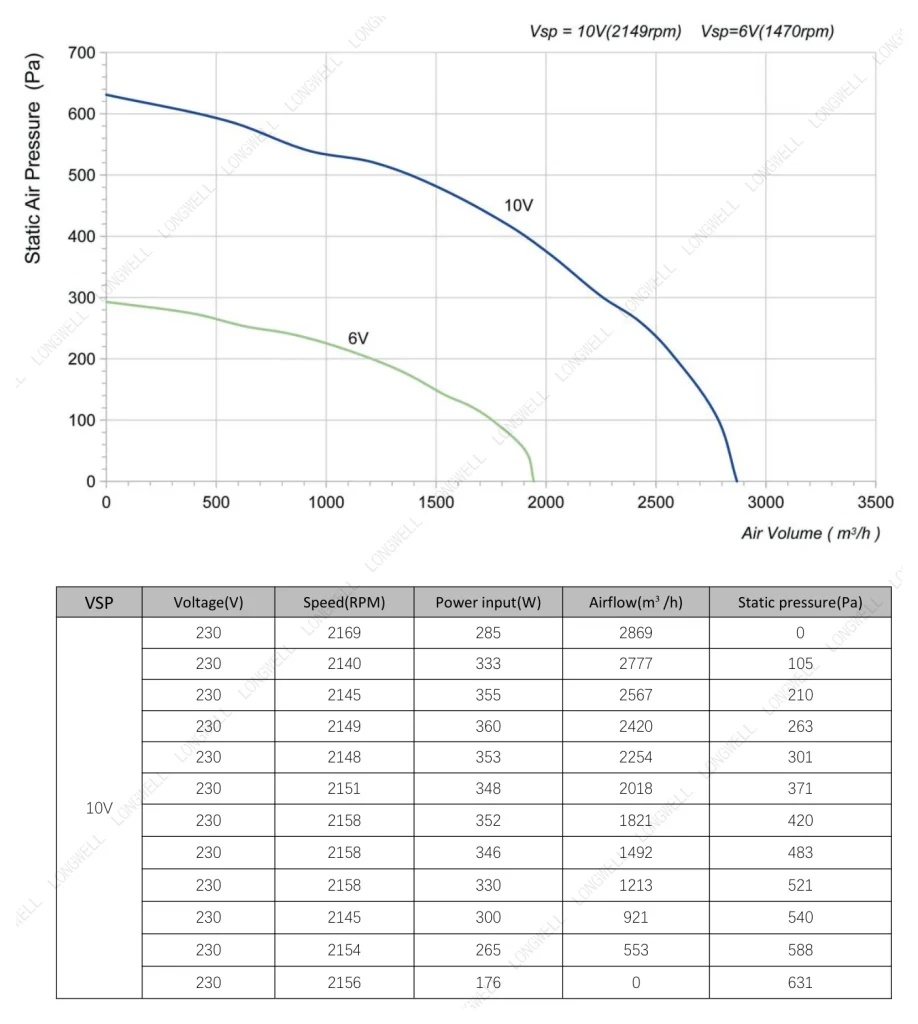

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ310 mm12.2 in
- Max airflow2,868.6 m³/h1,688 CFM
- Max static pressure630 Pa2.53 in. wg
- Voltage230 V
- Speed2,150 rpm
- Input power285 W
- Noise70 dB(A)

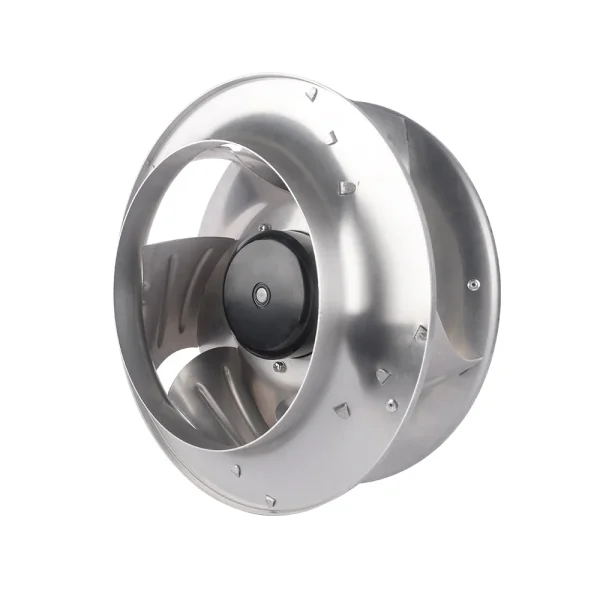

LWBE3G310-102NS-16 EC Backward Curved Centrifugal Fan Ø310 mm
Ø310 mm | EC | Max airflow 2,868.6 m³/h | Max static pressure 630 Pa | 70 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Engineering files (on request)
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

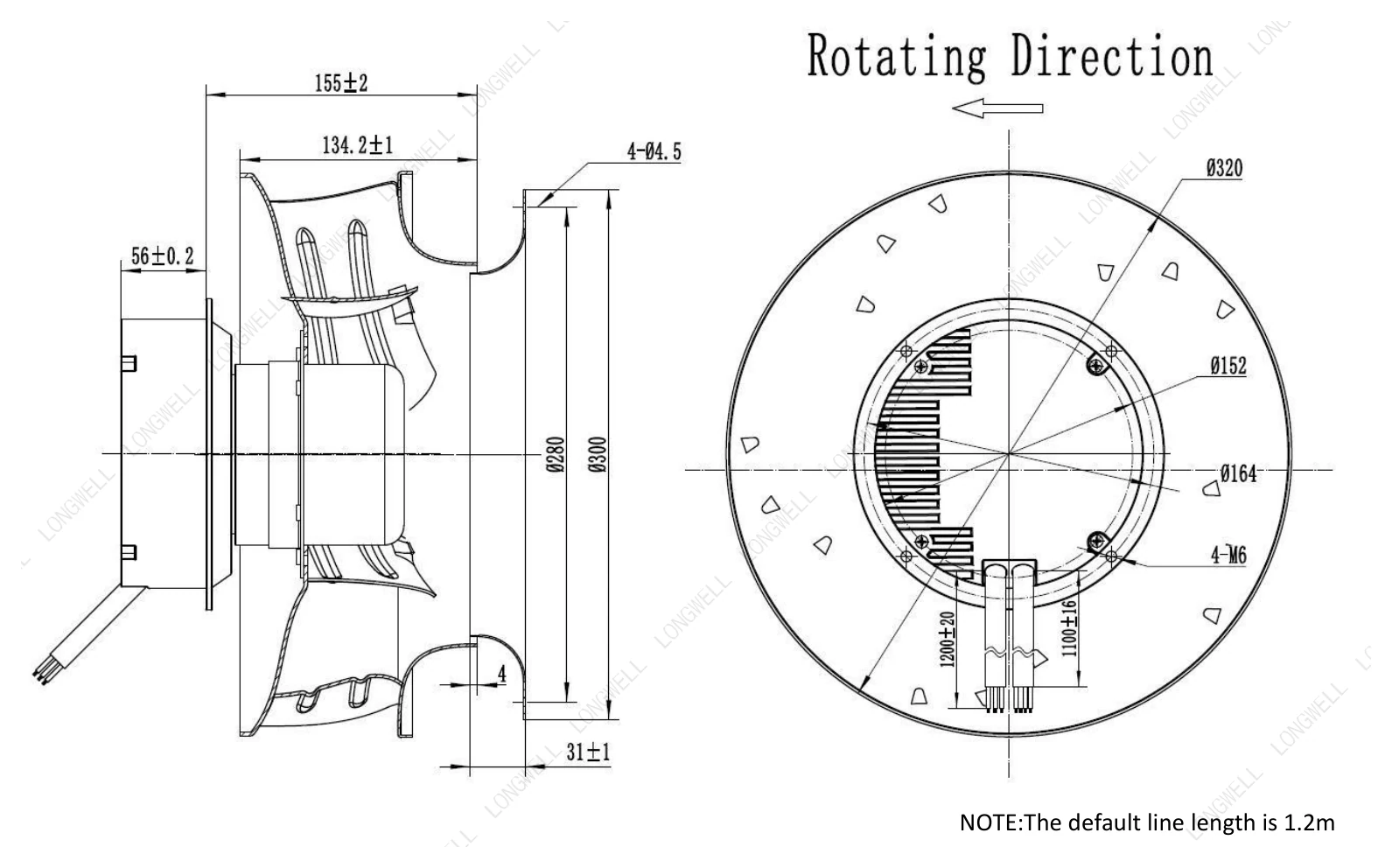

LWBE3G310-102NS-16 — construction, airflow path and running condition.
LWBE3G310-102NS-16 EC Backward Curved Centrifugal Fan | Performance Test · open in video library
Need a non-standard size or another format? Ask an engineer or search the download center.
LWBE3G310-102NS-16 is a LONGWELL EC Backward Curved Centrifugal Fan from the Backward Curved Centrifugal Fans range, impeller Ø310 mm, rated 230 V EC, maximum airflow 2,868.6 m³/h, maximum static pressure 630 Pa, noise 70 dB(A), input power 285 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWBE3G310-102NS-16 |
|---|---|
| Series | LWBE3G310 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 230 V |
| Frequency | 50 Hz |
| Current | 1.57 A |
| Input power | 285 W |
| Speed | 2,150 rpm |
| Max. airflow | 2,868.6 m³/h |
| Max. airflow (CFM) | 1,688 CFM |
| Max. static pressure | 630 Pa |
| Noise | 70 dB(A) |
| Ambient temperature | -25 ~ 60 °C |
| Storage temperature | -25 ~ 70℃ |
| Humidity | 0 ~ 85% RH |
| Altitude | < 1000m |
| Impeller diameter | Ø310 mm |
| Rotor diameter | 102 |
| Impeller material | Aluminum Alloy (Impeller) |
| Protection class | IP54 |
| Insulation class | F |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10). At 40℃room, humidity 15%~65%RH |
| Rotation | Clockwise,seen on rotor |
Typical applications
- Air handling units (AHU) and rooftop units (RTU)
- Data-center CRAH / CRAC units and fan walls
- Dust extraction and process ventilation
- Fan filter units and air purifiers
Series LWBE3G310: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø310 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWBE3G310-102NS-16 this model | 2,868.6 m³/h | 630 Pa | 2,150 rpm | 285 W | 70 dB(A) | 230 V | |
| LWBE3G310-092PS-11 | 2,235 m³/h | 474 Pa | 1,850 rpm | 160 W | 75 dB(A) | 230 V | View |
| LWFE3G310-072PS-01 | 2,266 m³/h | 700.4 Pa | 1,810 rpm | 175 W | 66 dB(A) | 230 V | View |
| LWBE3G310-092PS-12 | 2,410 m³/h | 443 Pa | 1,750 rpm | 150 W | 75 dB(A) | 230 V | View |
| LWFE3G310-092PS-08 | 2,523.5 m³/h | 669.5 Pa | 2,050 rpm | 220 W | 66 dB(A) | 230 V | View |
| LWFE3G310-092PS-07 | 2,678 m³/h | 607.7 Pa | 1,500 rpm | 175 W | 63 dB(A) | 230 V | View |
| LWBE3G310-102PS-02 | 2,869 m³/h | 630 Pa | 2,150 rpm | 285 W | 70 dB(A) | 230 V | View |
| LWBE3G310-102PS-16 | 2,884 m³/h | 963 Pa | 2,600 rpm | 450 W | 78 dB(A) | 230 V | View |
| LWBE3G310-102PS-15 | 2,936 m³/h | 700 Pa | 2,300 rpm | 370 W | 76 dB(A) | 230 V | View |
| LWFE3G310-102PS-03 | 4,120 m³/h | 1,081.5 Pa | 2,960 rpm | 700 W | 85 dB(A) | 230 V | View |
| LWBE3G310-138PT-04 | 4,398 m³/h | 824 Pa | 2,600 rpm | 980 W | 74 dB(A) | 400 V | View |
| LWBE3G310-138NT-05 | 4,398.1 m³/h | 824 Pa | 2,600 rpm | 980 W | 74 dB(A) | 400 V | View |
| LWFE3G310-102PT-09 | 5,150 m³/h | 1,730.4 Pa | 3,000 rpm | 1,100 W | 85 dB(A) | 400 V | View |
| LWBE3G310-138NT-25 | 5,592.9 m³/h | 1,082 Pa | 3,300 rpm | 1,588 W | 92 dB(A) | 400 V | View |
| LWBE3G310-138PT-10 | 5,593 m³/h | 1,082 Pa | 3,300 rpm | 1,588 W | 92 dB(A) | 400 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
