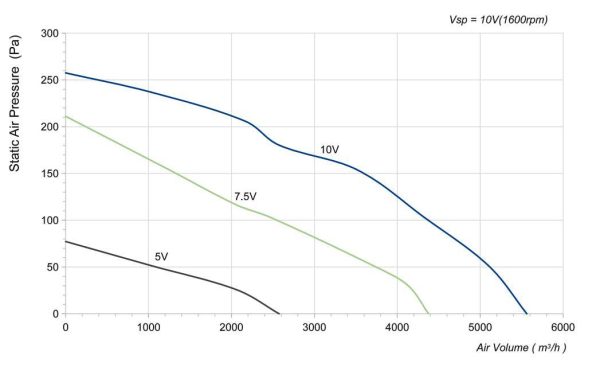

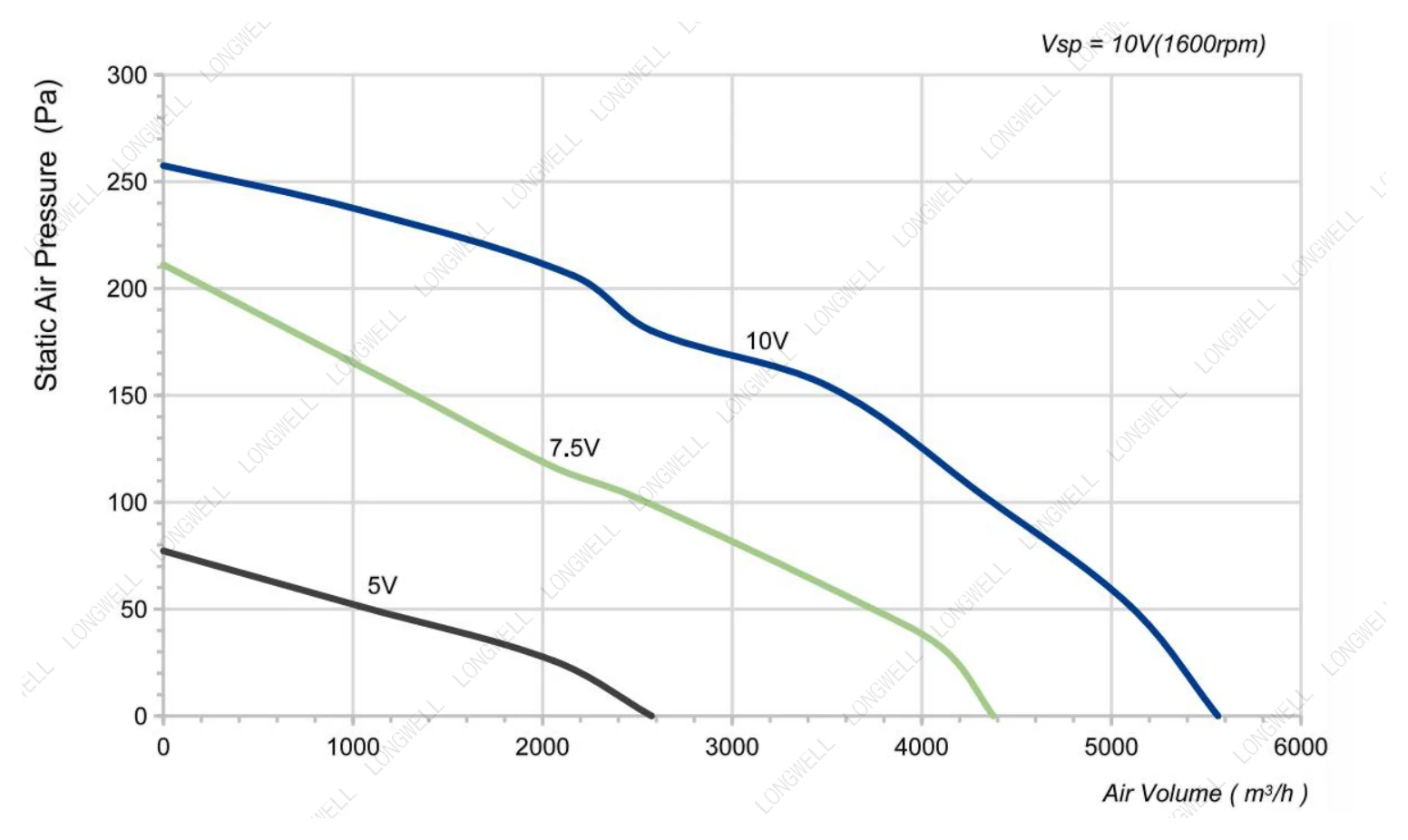

Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
- ImpellerØ400 mm
- Max airflow5,562 m³/h
- Max static pressure258 Pa
- Voltage220/230 V
- Speed1,600 rpm
- Input power360 W
- Noise67 dB(A)
LWAE3G400SS-5MEW-07 EC Axial Fan Ø400 mm
Ø400 mm | EC | Max airflow 5,562 m³/h | Max static pressure 258 Pa | 67 dB(A)
- Factory direct
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 18-month warranty
- CE · ETL · RoHS
Need a non-standard size or another format? Ask an engineer or search the download center.
LWAE3G400SS-5MEW-07 is a LONGWELL EC Axial Fan from the EC Axial Fans range, impeller Ø400 mm, rated 220/230 V EC, maximum airflow 5,562 m³/h, maximum static pressure 258 Pa, noise 67 dB(A), input power 360 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWAE3G400SS-5MEW-07 |
|---|---|
| Series | LWAE3G400 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 220/230 V |
| Voltage range | 176 ~ 264 V |
| Frequency | 50/60 Hz |
| Current | 1.6 A |
| Input power | 360 W |
| Speed | 1,600 rpm |
| Max. airflow | 5,562 m³/h |
| Max. airflow (CFM) | 3,272 CFM |
| Max. static pressure | 258 Pa |
| Noise | 67 dB(A) |
| Ambient temperature | -25 ~ +60 ℃ |
| Storage temperature | -25 ~ 70℃ |
| Humidity | 0 ~ 85 % RH |
| Altitude | < 1000m |

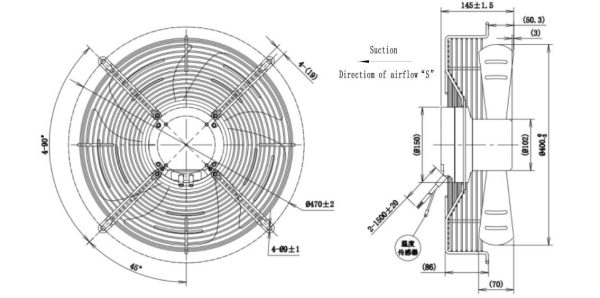

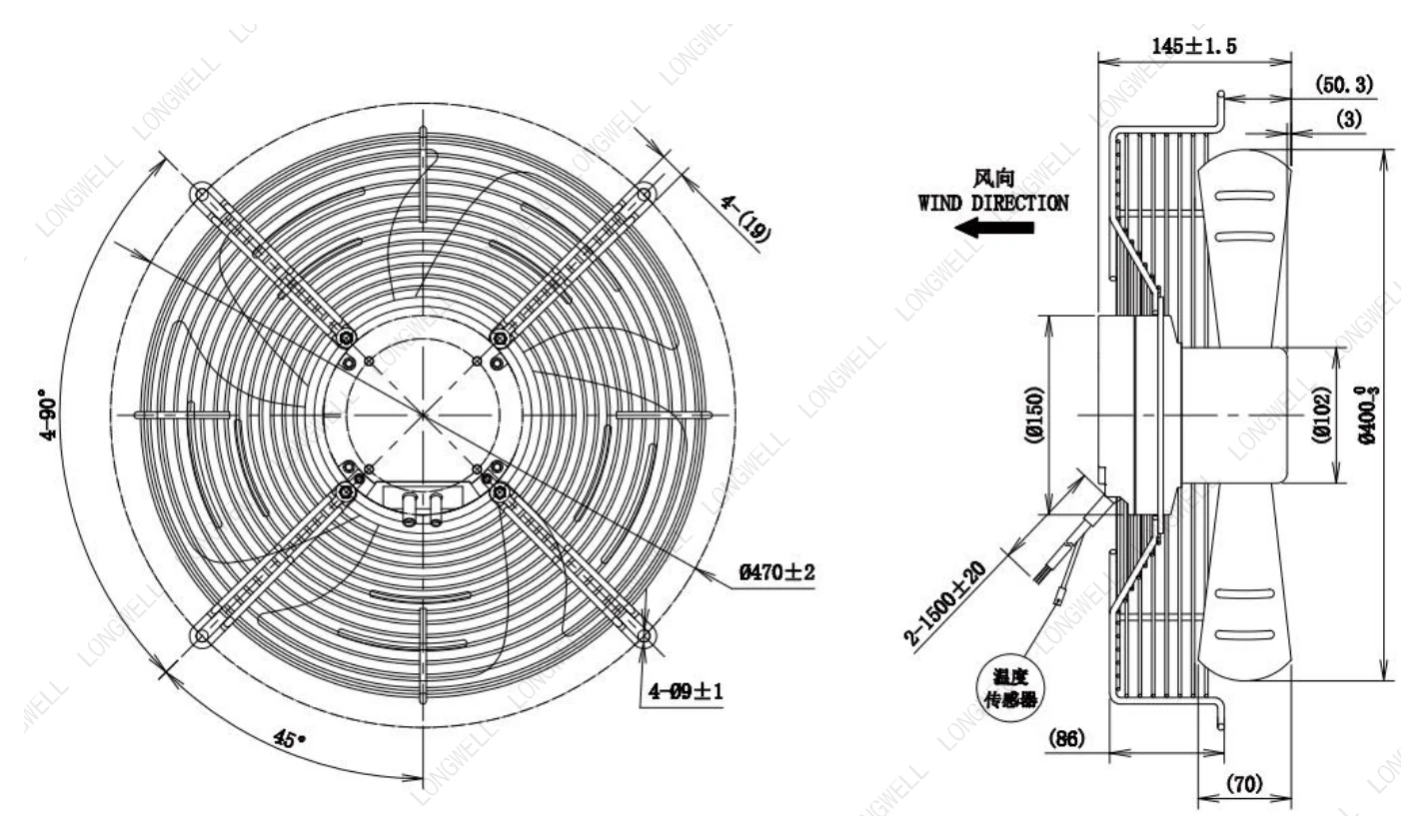

| Impeller diameter | Ø400 mm |
| Impeller material | Sheet steel ( Impeller ) |
| Protection class | IP54 |
| Insulation class | B |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |

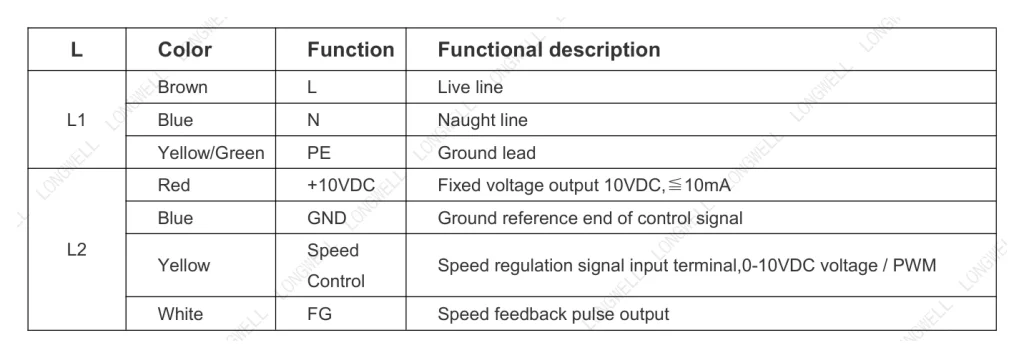

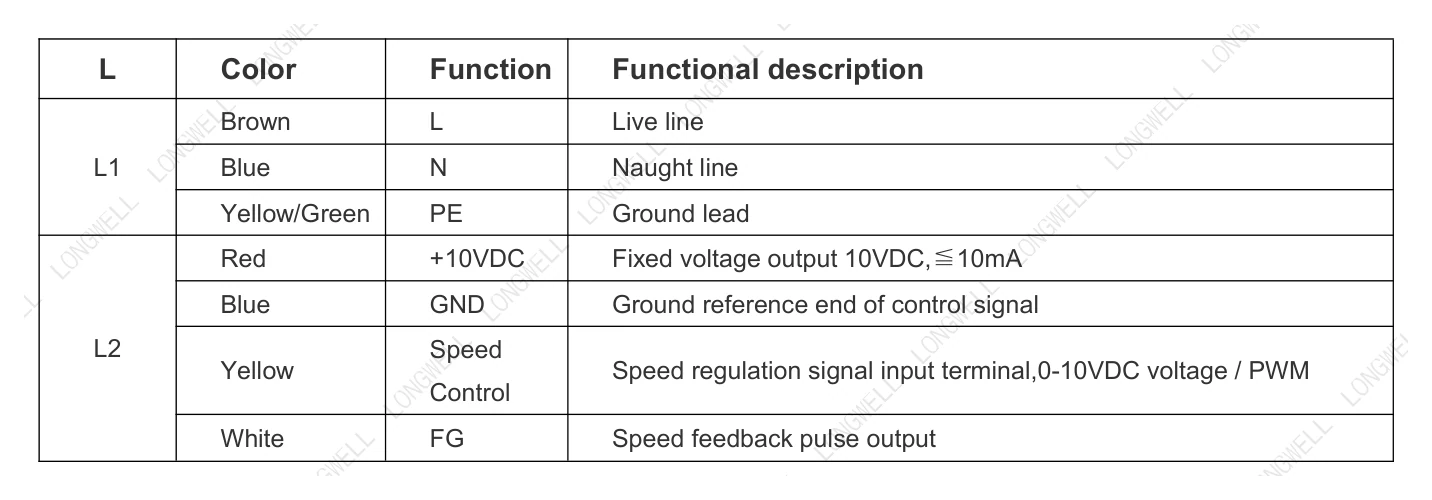

| Speed control | Control input 0~10VDC / PWM |
| Control signal | Control signal VSP voltage range1VDC~9.5VDC(During normal operation, when the VSP voltage is below 1.0VDC, the motor switches from operating mode to standby mode) |
| PWM input | PWM signal: frequency 1K–10KHz, amplitude 10–12V,duty cycle 30%–70% . |
| Speed feedback | Tach output: 1 Pulse/R; FG internal open circuit output, external pull-up resistor 10KΩ, pull-up voltage +10V |
| Auxiliary output | Output 10VDC, Max Current 10 mA |
| Protection functions | Over-temperature protection, Over-current protection, Locked-rotor protection’ |
| Soft start | Delay time <20 seconds to full speed |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWAE3G400: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
Alternatives with the same impeller (Ø400 mm · EC)
Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.
| Model | Max airflow | Max static pressure | Speed | Power | Noise | Voltage | |
|---|---|---|---|---|---|---|---|
| LWAE3G400SS-5MEW-07 this model | 5,562 m³/h | 258 Pa | 1,600 rpm | 360 W | 67 dB(A) | 220/230 V | |
| LWBE3G400-102PS-11 | 3,554 m³/h | 546 Pa | 1,460 rpm | 300 W | 76 dB(A) | 230 V | View |
| LWBE3G400-102NS-16 | 3,554 m³/h | 546 Pa | 1,460 rpm | 300 W | 76 dB(A) | 230 V | View |
| LWBE3G400-102PS-01 | 3,914 m³/h | 556 Pa | 1,430 rpm | 330 W | 70 dB(A) | 230 V | View |
| LWDE-400 (16")U-MWN-01 | 4,032 m³/h | see curve | 2,800 rpm | 1,200 W | 81 dB(A) | 110-120 V | View |
| LWDE-400 (16")U-MWN-03 | 4,032 m³/h | see curve | 2,800 rpm | 1,200 W | 70 dB(A) | 110-120 V | View |
| LWBE3G400-102PS-09 | 4,463 m³/h | 420 Pa | 1,250 rpm | 297 W | — | 230 V | View |
| LWBE3G400-102PS-10 | 5,615 m³/h | 622 Pa | 1,520 rpm | 500 W | — | 230 V | View |
| LWFE3G400-102PS-02 | 6,489 m³/h | 978.5 Pa | 1,800 rpm | 700 W | 85 dB(A) | 230 V | View |
| LWDE-400 (16")S-MWN-02 | 6,850 m³/h | see curve | 2,800 rpm | 1,200 W | 81 dB(A) | 220-240 V | View |
| LWDE-400 (16")S-MWN-04 | 6,850 m³/h | see curve | 2,800 rpm | 1,200 W | 70 dB(A) | 220-240 V | View |
| LWBE3G400-138PT-04 | 7,459 m³/h | 840 Pa | 2,060 rpm | 1,100 W | 77 dB(A) | 400 V | View |
| LWBE3G400-138NT-12 | 7,459 m³/h | 840 Pa | 1,100 rpm | 1,480 W | 71 dB(A) | 400 V | View |
| LWBE3G400-188PT-07 | 9,682 m³/h | 1,627 Pa | 2,650 rpm | 2,060 W | 84 dB(A) | 400 V | View |
| LWBE3G400-188NT-17 | 9,682 m³/h | 1,627 Pa | 2,650 rpm | 2,060 W | 84 dB(A) | 400 V | View |
Not sure which one? Send us the duty point (airflow / static pressure / noise limit) — use the selector or ask an engineer.
