Representative image of the series — dimensions and configuration of this model are given in the drawing and data table below.
- ImpellerØ400 mm15.7 in
- Max airflow4,944 m³/h2,908 CFM
- Max static pressure208 Pa0.84 in. wg
- Voltage220/230 V
- Speed1,600 rpm
- Input power315 W
- Noise69 dB(A)
LWAE3G400SS-5MEW-03 EC Axial Fan Ø400 mm
Ø400 mm | EC | Max airflow 4,944 m³/h | Max static pressure 208 Pa | 69 dB(A)
- Direct from LONGWELL
- OEM / ODM
- Samples in 1–3 days
- Production 15–30 days
- 12-month warranty
- CE · RoHS · ETL on request
CAD models (STEP / DWG) are released on request — see “Engineering files” below. Another format or a non-standard variant? Ask an engineer · download center
Cross-reference: same impeller size class as Ziehl-Abegg FN040, ebm-papst W3G400 — side-by-side comparison on longwellfans.com. Mounting is confirmed against the LONGWELL drawing before ordering.
CAD files exist for this model and can be released for assembly checks in SolidWorks / CATIA / Creo / Inventor.
CAD models contain the blade geometry and are not publicly downloadable. Tell us the project; an engineer sends the file after a short check, normally within 1 business day.

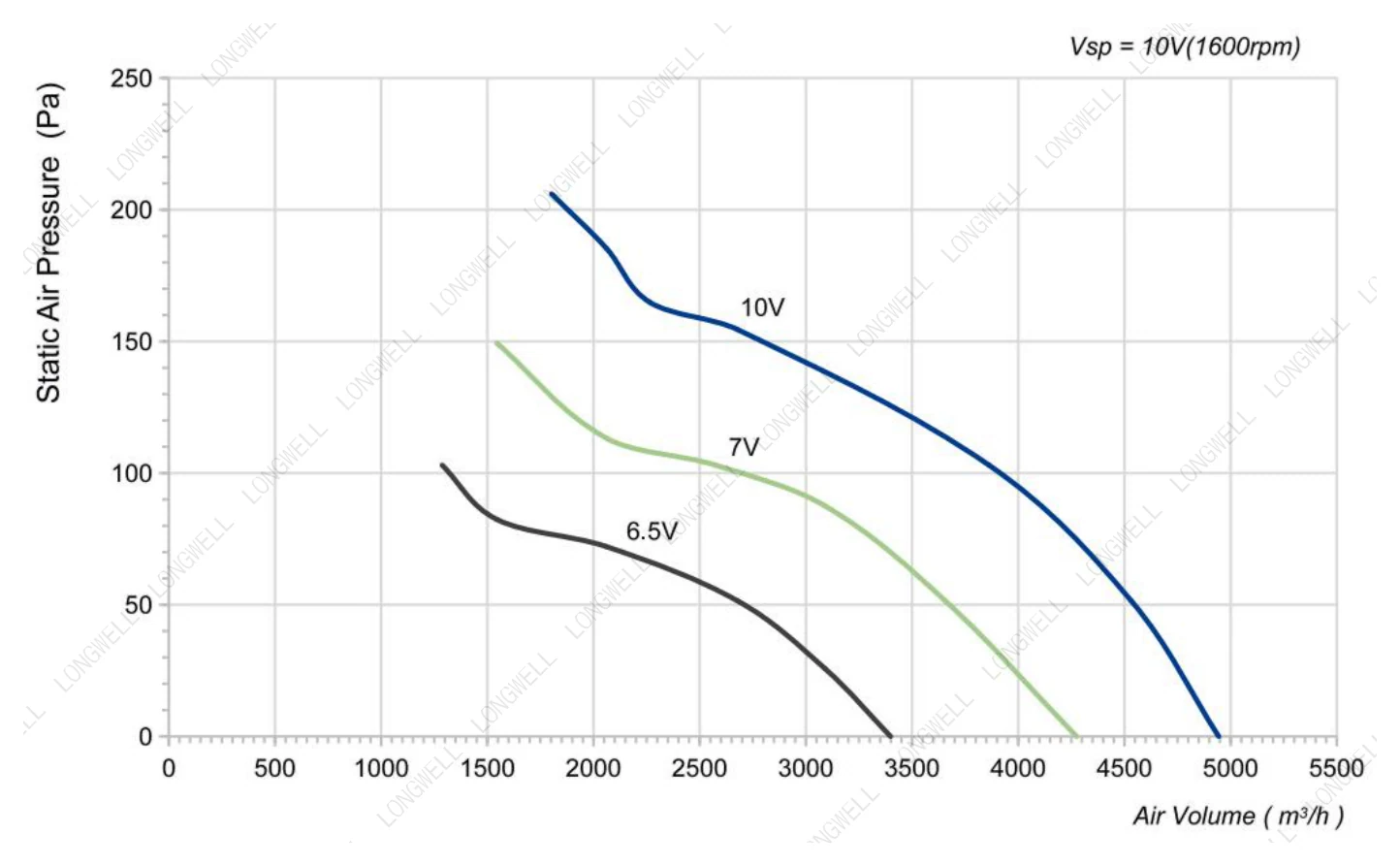

Performance curve (P-Q) LWAE3G400SS-5MEW-03
Digitised from the catalogue curve at standard air (20 °C, 101.3 kPa, 1.2 kg/m³); one curve per voltage / speed grade (1 here, rated 220/230 V). Data version: 2026-10-19. The system resistance curve depends on the actual ductwork — confirm the operating point on site. Need an engineer to verify the duty point? Contact us or add the model to your RFQ and note the duty point.
Video LWAE3G400SS-5MEW-03
LWAE3G400SS-5MEW-03 — construction, airflow path and running condition.
Axial Fan LWAE3G400 Series: High Airflow, Quiet Cooling | LWAE3G400SS-5MEW-03 · open in video library

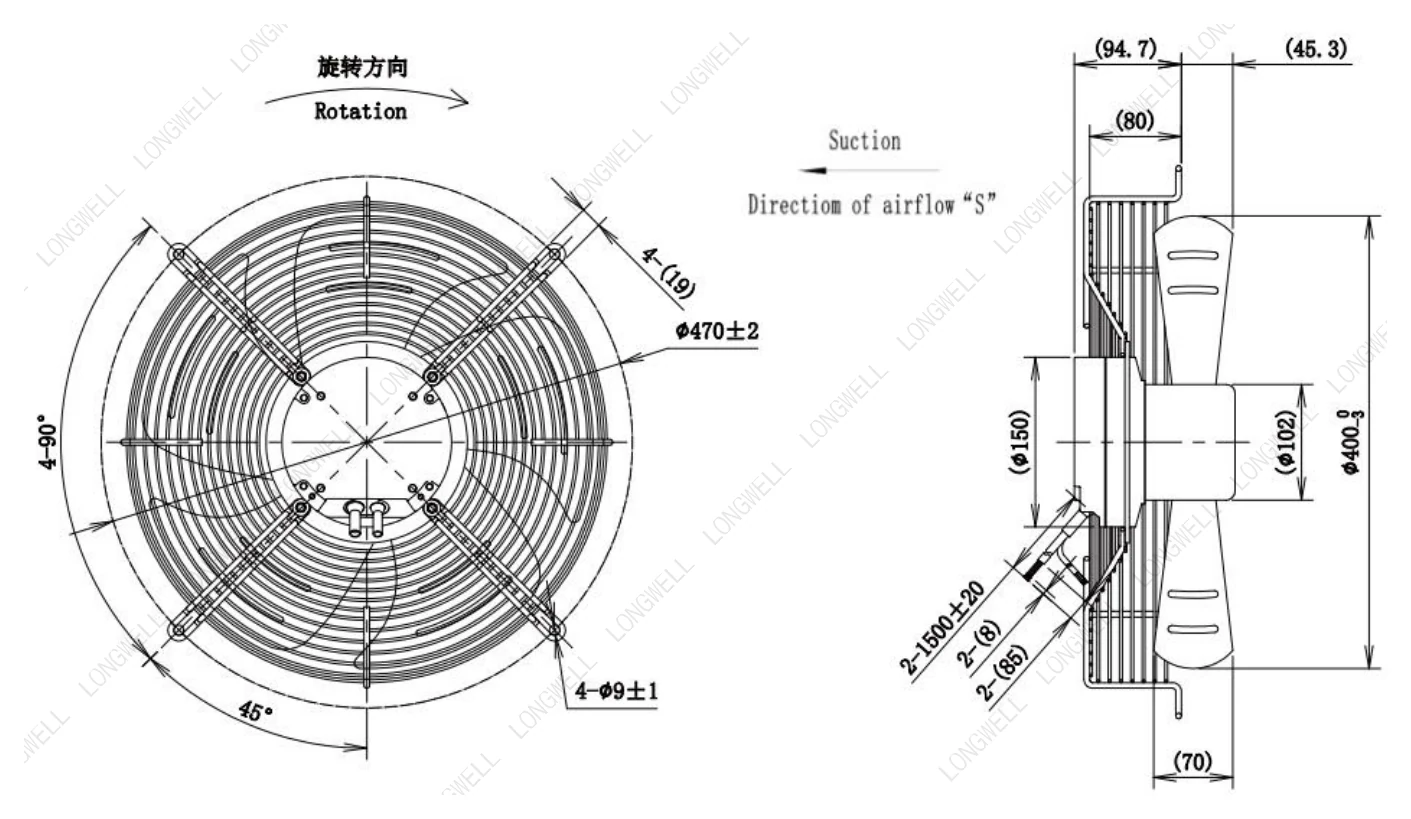

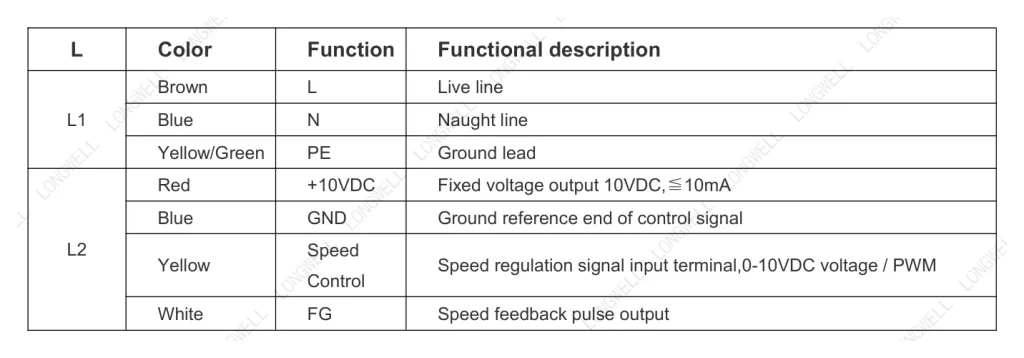

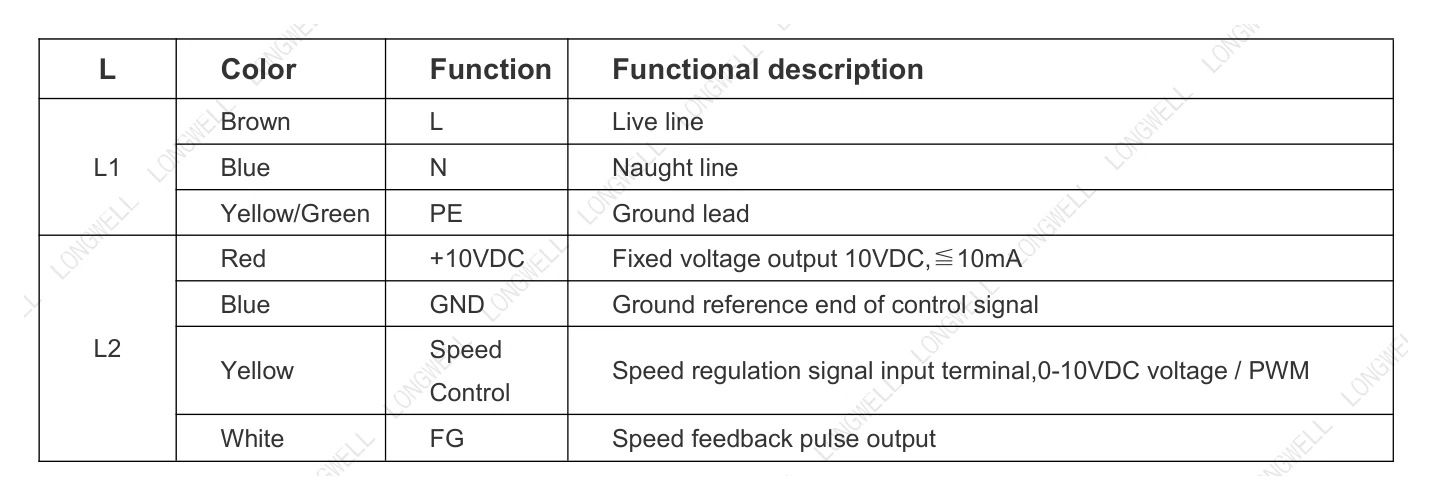

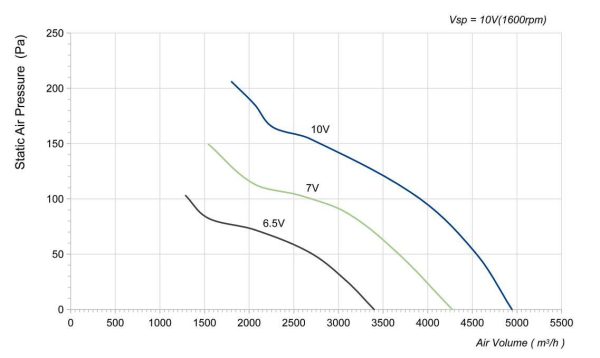

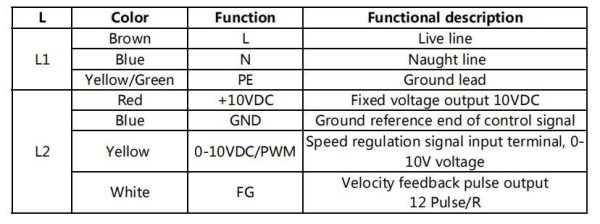

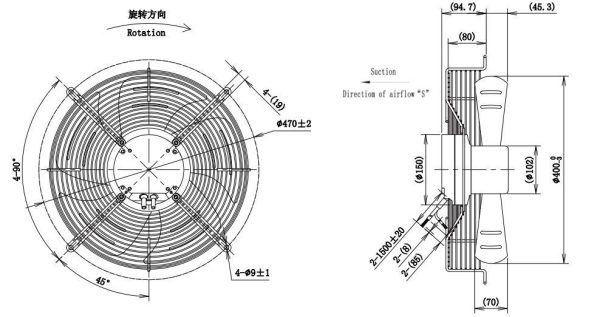

Drawing, Curve & Wiring LWAE3G400SS-5MEW-03
Files for LWAE3G400SS-5MEW-03: datasheet, catalogue and drawing PDFs are listed above ↑ · CAD (STEP / DWG) on request — ask an engineer.
Technical description LWAE3G400SS-5MEW-03
LWAE3G400SS-5MEW-03 is a LONGWELL EC Axial Fan from the EC Axial Fans range, impeller Ø400 mm, rated 220/230 V EC, maximum airflow 4,944 m³/h, maximum static pressure 208 Pa, noise 69 dB(A), input power 315 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.
Technical data
| Model | LWAE3G400SS-5MEW-03 |
|---|---|
| Series | LWAE3G400 |
| Motor type | EC |
| Phase | 1-phase |
| Rated voltage | 220/230 V |
| Voltage range | 176 ~ 264 V |
| Frequency | 50/60 Hz |
| Current | 1.4 A |
| Input power | 315 W |
| Speed | 1,600 rpm |
| Max. airflow | 4,944 m³/h |
| Max. airflow (CFM) | 2,908 CFM |
| Max. static pressure | 208 Pa |
| Noise | 69 dB(A) |
| Ambient temperature | -25 ~ +60 ℃ |
| Storage temperature | -25 ~ 70℃ |
| Humidity | 0 ~ 85 % RH |
| Altitude | < 1000m |
| Impeller diameter | Ø400 mm |
| Impeller material | Sheet steel ( Impeller ) |
| Protection class | IP54 |
| Insulation class | B |
| Bearing | Maintenance-free deep groove ball bearings |
| Duty | S1 |
| Balance grade | G6.3 |
| Vibration standard | JB/T 8689 |
| Service life | 40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH |
| Net weight | 3.6 |
| Speed control | Control input 0~10VDC / PWM |
| Control signal | Control signal VSP voltage range1VDC~9.5VDC(During normal operation, when the VSP voltage is below 1.0VDC, the motor switches from operating mode to standby mode) |
| PWM input | PWM signal: frequency 1K–10KHz, amplitude 10–12V,duty cycle 30%–70% . |
| Speed feedback | Tach output: 1 Pulse/R; FG internal open circuit output, external pull-up resistor 10KΩ, pull-up voltage +10V |
| Auxiliary output | Output 10VDC, Max Current 10 mA |
| Protection functions | Over-temperature protection, Over-current protection, Locked-rotor protection’ |
| Soft start | Delay time <20 seconds to full speed |
Typical applications
- Condensers, evaporators and dry coolers
- Heat-pump and chiller outdoor units
- Building and workshop ventilation
- Cooling towers and transformer cooling
Series LWAE3G400: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.
Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.
