ImpellerØ500 mm19.7 in
Max airflow5,900 m³/h3,473 CFM
Voltage230 V
Speed900 rpm
Input power200 W
Noise56 dB(A)

LWAE3G500SS-5PKW-15 EC Axial Fan Ø500 mm

Ø500 mm | EC | Max airflow 5,900 m³/h | 56 dB(A)

SKU: LWAE3G500SS-5PKW-15 Categories: Axial Fans, EC Axial Fans, Impeller Ø500–900 mm

Factory direct
OEM / ODM
Samples in 1–3 days
Production 15–30 days
18-month warranty
CE · ETL · RoHS

View RFQ →

Get a quote · LWAE3G500SS-5PKW-15

Price, curve check and lead time within 1 business day.

Used only for this quotation and technical support.

WhatsApp / Phone+86 183 5827 4663 E-mail an engineersales@longwellfans.com Datasheet (PDF)electrical & performance data All files for LWAE3G500SS-5PKW-15drawings · curves · datasheet

Samples 1–3 days · fee credited to your order
From ~30 pcs for a first validation order
T/T 30 / 70 · FOB / CIF / DDP
100% tested · 18-month warranty
How ordering works →

Drawings & downloads
Technical description

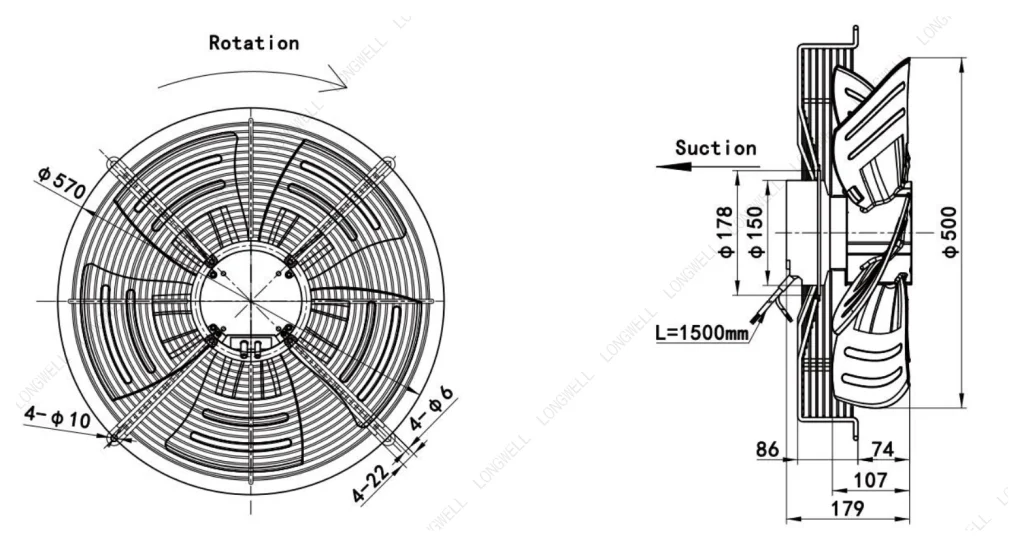

LWAE3G500SS-5PKW-15 Dimensional drawing — **Dimensional drawing**Dimensions in mm. Confirm against the final approval drawing before machining cut-outs.

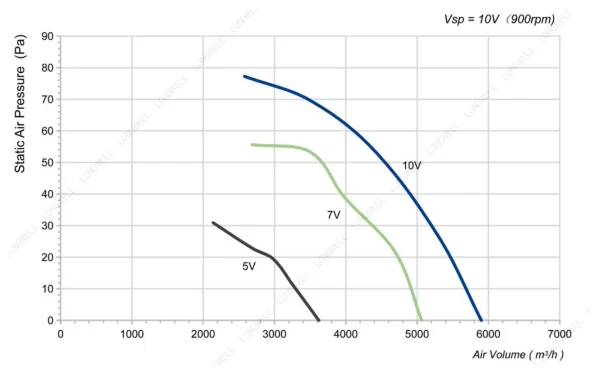

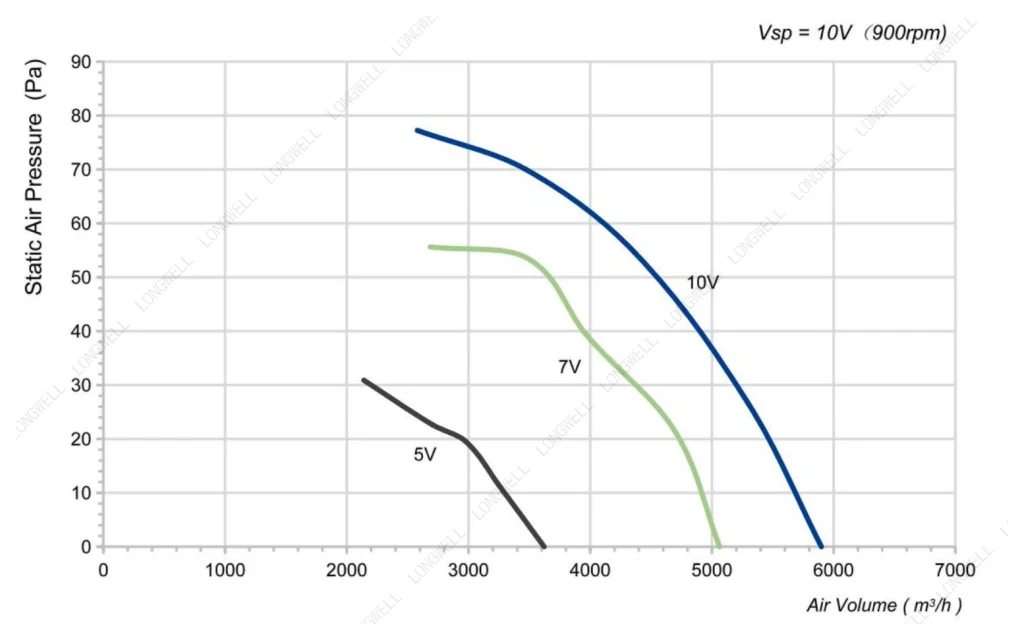

LWAE3G500SS-5PKW-15 Performance curve (P-Q) — **Performance curve (P-Q)**Static pressure vs. airflow. Curve numbers correspond to supply voltage / speed grades.

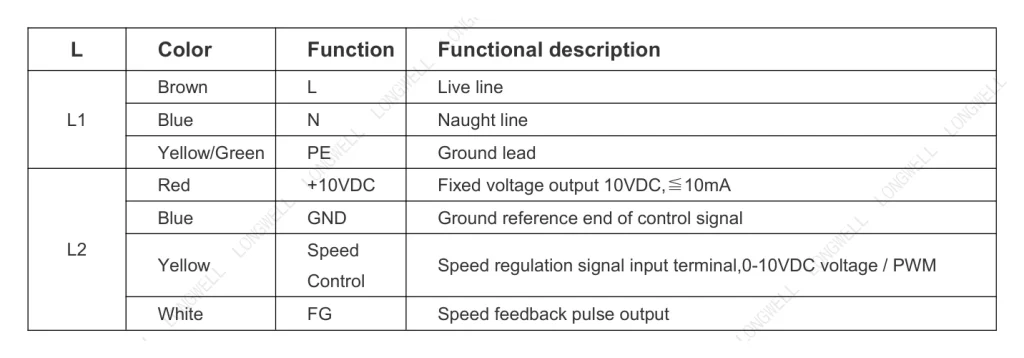

LWAE3G500SS-5PKW-15 Wiring diagram — **Wiring diagram**Lead colours and terminal assignment; TK = motor thermal contact.

Downloads for LWAE3G500SS-5PKW-15

PDFDatasheet DOCXDatasheet · 836 KB

Need a non-standard size or another format? Ask an engineer or search the download center.

LWAE3G500SS-5PKW-15 is a LONGWELL EC Axial Fan from the EC Axial Fans range, impeller Ø500 mm, rated 230 V EC, maximum airflow 5,900 m³/h, noise 56 dB(A), input power 200 W. The EC motor integrates the drive electronics: stepless speed control by 0–10 V or PWM signal, speed feedback and high efficiency at part load.

Technical data

Model	LWAE3G500SS-5PKW-15
Series	LWAE3G500
Motor type	EC
Phase	1-phase
Rated voltage	230 V
Frequency	50 Hz
Current	1.4 A
Input power	200 W
Speed	900 rpm
Max. airflow	5,900 m³/h
Noise	56 dB(A)
Ambient temperature	-25 ~ 60 °C
Storage temperature	-25 ~ 70℃
Humidity	0 ~ 85 % RH
Altitude	< 1000m
Impeller diameter	Ø500 mm
Impeller material	Sheet steel ( Impeller )
Protection class	IP54
Insulation class	B
Bearing	Maintenance-free deep groove ball bearings
Duty	S1
Balance grade	G6.3
Vibration standard	JB/T 8689
Service life	40,000Hours(L10), At 40 °Croom, humidity 15%~65%RH

Typical applications

Condensers, evaporators and dry coolers
Heat-pump and chiller outdoor units
Building and workshop ventilation
Cooling towers and transformer cooling

Series LWAE3G500: models in the same series share the impeller and motor platform and differ in speed grade, voltage or lead-out / terminal-box configuration — compare them in the table below or ask for the best fit at your duty point.

Nameplate values: maximum airflow is measured at zero static pressure and maximum static pressure at zero airflow; the two never occur together. Confirm the operating point on the performance curve. Final selection is subject to the duty point (airflow / static pressure / voltage / control mode) and project verification.

Alternatives with the same impeller (Ø500 mm · EC)

Same impeller, different speed grade, power or wiring. Step up for more airflow, step down for lower noise.

Model	Max airflow	Max static pressure	Speed	Power	Noise	Voltage
LWAE3G500SS-5PKW-15 this model	5,900 m³/h	see curve	900 rpm	200 W	56 dB(A)	230 V
LWBE3G500-138PT-08	8,137 m³/h	464 Pa	1,100 rpm	870 W	71 dB(A)	400 V	View
LWBE3G500-138NT-13	8,137 m³/h	464 Pa	1,100 rpm	870 W	71 dB(A)	400 V	View
LWBE3G500-188PT-07	10,305 m³/h	903 Pa	1,705 rpm	1,900 W	—	400 V	View
LWBE3G500-188NT-14	10,305 m³/h	903 Pa	1,705 rpm	1,900 W	72 dB(A)	400 V	View
LWAE3G500TT-5MNW-02	10,506 m³/h	330 Pa	1,690 rpm	850 W	78 dB(A)	380 V	View
LWAE3G500TT-5MKW-06	10,506 m³/h	330 Pa	1,690 rpm	850 W	78 dB(A)	380 V	View
LWAE3G500TT-5MEW-04	10,506 m³/h	330 Pa	1,690 rpm	850 W	78 dB(A)	380 V	View
LWAE3G500TS-5MNW-01	10,506 m³/h	330 Pa	1,690 rpm	850 W	78 dB(A)	380 V	View
LWBE3G500-188PT-02	12,243 m³/h	1,265 Pa	2,000 rpm	3,160 W	—	400 V	View
LWBE3G500-188NT-09	12,243 m³/h	1,265 Pa	2,000 rpm	3,160 W	78 dB(A)	400 V	View
LWBE3G500-188PT-05	13,472 m³/h	1,541 Pa	2,200 rpm	4,200 W	88 dB(A)	400 V	View
LWBE3G500-188NT-10	13,472 m³/h	1,541 Pa	2,200 rpm	4,200 W	66 dB(A)	400 V	View
LWBE3G500-188PT-04	14,214 m³/h	886 Pa	1,800 rpm	3,000 W	89 dB(A)	400 V	View
LWBE3G500-188NT-08	14,214 m³/h	886 Pa	1,800 rpm	3,000 W	89 dB(A)	400 V	View
